AMADA - EMZ 3610 NTNO-PUN-AMA-2011-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas para chapa
- ➤ Used AMADA EMZ 3610 NT For Sale | gindumac.com

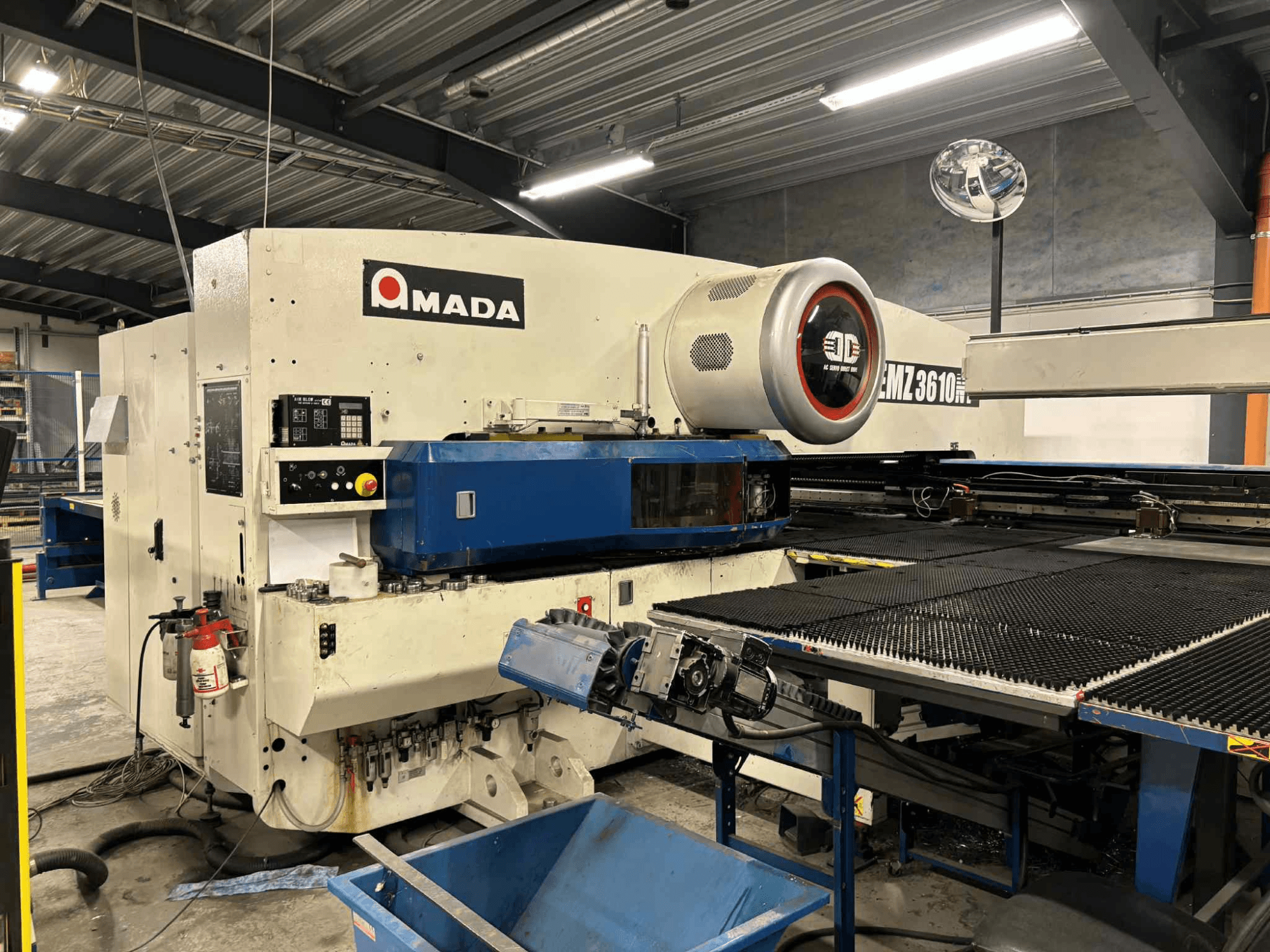

This AMADA EMZ 3610 NT CNC punching machine was manufactured in 2011. It features a Fanuc control system, a punching force of 300kN, and a working area of 2500 x 1525 mm, extendable to 5000 x 1525 mm with repositioning. The machine can handle sheet thicknesses up to 4.5 mm and supports a maximum table load of 160 kg. If you are looking to get high-quality punching capabilities, consider the AMADA EMZ 3610 NT machine we have for sale. Contact us for more information.
Resumen
- marca: AMADA
- año: 2011
- MODELO: EMZ 3610 NT
- tipo de aplicación: Punzonado
- Ubicación: Noruega
- tipo de máquina: Máquina de punzonado CNC
- Marca de unidad de control: FANUC
Información técnica - AMADA EMZ 3610 NT
Unidad de Control
- Marca del control: FANUC
Dimensiones
- Peso de la máquina: 21000 kg
- Carga de mesa: 160 kg
Recorrido
- Número de ejes: 2
- Recorrido eje X: 2500 mm
- Recorrido eje Y: 1525 mm
Especificación Técnica
- Fuerza de perforación: 300 Kn
Información adicional
Working area with repositioning: 5000 x 1525 mm
Max. sheet thickness: 4,5 mm (mild steel)
Feed rate X/Y: 100 / 80 m/min (128 m/min simultaneous)
Positioning tolerance: +/- 0,1 mm
Z-turret stations: 45
AutoIndex stations: 4 (2 x B, 2 x C)
Turret feed rate: 30 1/min
Max. number of hits: 1000/min
Machine frame: Bridge frame
Punching drive: Servo-electric Twin Drive
Drives (turret + table): AC-Servo motors
Clamps: Pneumatical
Electrical connection: 400V / 50Hz
Electrical consumption: 1 kW – 7 kW
Air consumption (machine): 250 l/min
Air consumption (Air Jet Vakuum): 250 l/min
Additional equipment
Loading unit: Loader L III 300
Sheet size min.: 1000 x 300 mm
Sheet size max.: 3000 x 1500 mm
Material thickness: 0,5 – 8,0 mm
Max. loading weight: 300 kg
Max. stack height: 300 mm
Max. pallet weight: 4000 kg (2x2000 kg)
Max. feed rate (traverse): 70 m/min
Number of suction cups: 34 pieces
Double sheet control: Yes, with sheet thickness detector
Air consumption: 510 l/min, 6 bar inlet pressure
Electrical connection: 400V
Unloading unit with Parts Remover: PR 3 UL 300 P
Part size min./max.: 150 x 150 mm / 2500 x 1000 mm
Sheet thickness: 0,5 – 3,0 mm (4 mm for EM-Serie)
Max. part weight: 50 kg
Storage table size: 3400 x 1400 mm
Max. part size for unloading clamps: 3000 x 1500 mm
Max. stack height skeleton table: 450 mm
Max. weight skeleton table: 2000 kg
Max. stack height storage table: 450 mm
Max. weight storage table: 4000 kg
Max. feed rate X-/Y-direction: 180 / 90 m/min
Air consumption: 1000 l/min, 6 bar inlet pressure
Electrical connection: 400V
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
