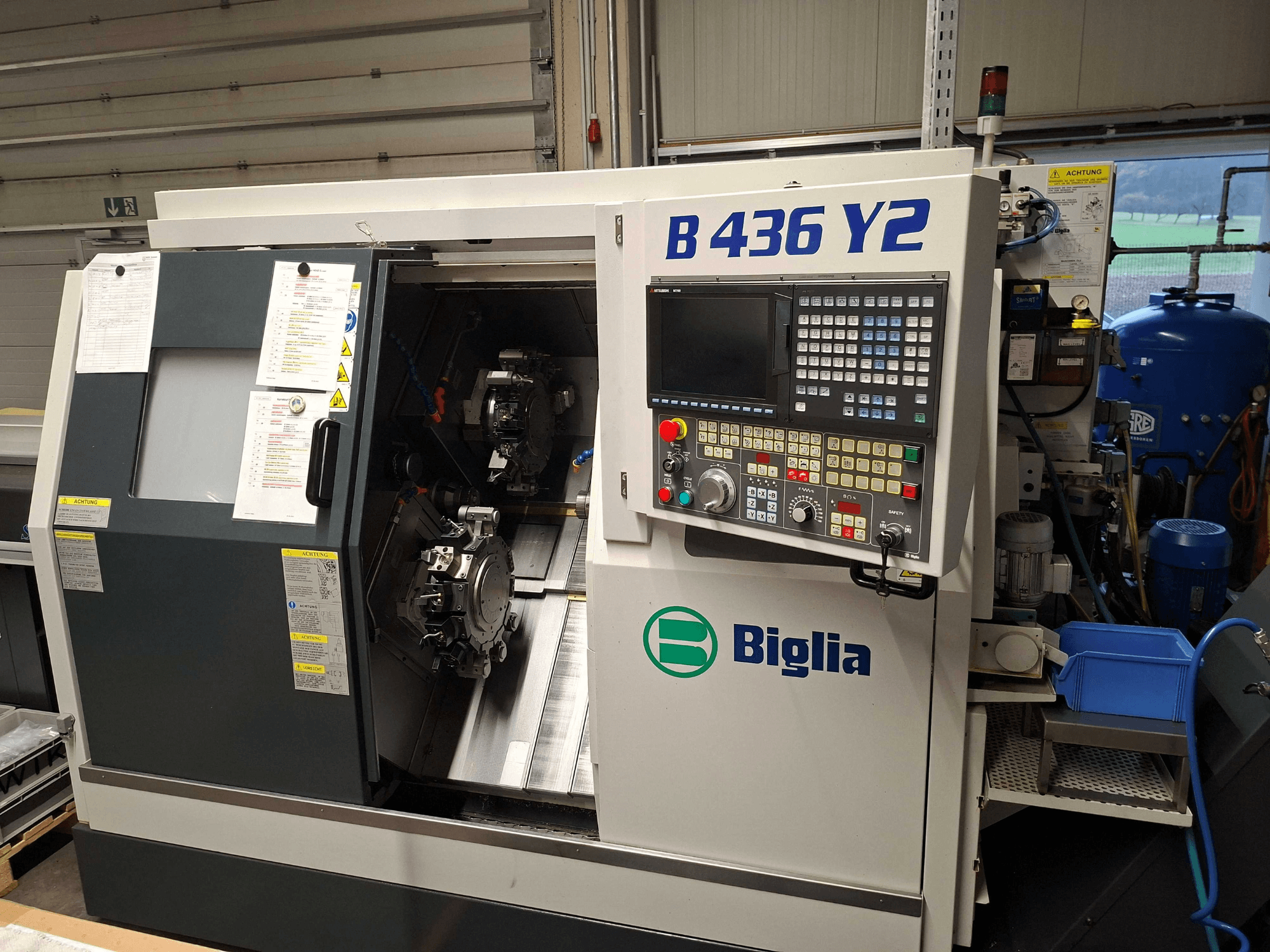

Biglia - B.436-Y2 AT-TUR-BIG-2016-00001

• Max. bar diameter: 36 mm

• Aiming tube: 37.5 mm

• Spindle nose: 115 mm

• Draw tube: 46 mm

• Continuous motor power: 7.5 kW

• Continuous power available from: 1700 rpm

• Max. torque: 62 Nm

• Cylinder thrust area: 75 cm²

• Cylinder stroke (max.) for clamping operation: 26 mm

• Longitudinal slide (Z1 axis)

  • Max. stroke: 300 mm

  • Ball screw diameter/pitch: 25/10 mm

  • Max. rapid traverse: 30 m/min

• Cross slide (X1 axis)

  • Max. stroke: 85 mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Vertical slide (Y1 axis)

  • Max. stroke: 50 (+25/-25) mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Longitudinal slide (Z2 axis)

  • Max. stroke: 300 mm

  • Ball screw diameter/pitch: 25/10 mm

  • Max. rapid traverse: 30 m/min

• Cross slide (X2 axis)

  • Max. stroke: 85 mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Vertical slide (Y2 axis)

  • Max. stroke: 50 (+25/-25) mm

  • Ball screw diameter/pitch: 25/5 mm

  • Max. rapid traverse: 15 m/min

• Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V

• Operating pressure: 4.8–6.9 bar

• Max. air consumption (supply): 0.10 m³/min (guideline)

• Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm

• Overall height (max.): 1900 mm

Additional equipment

• High-precision boring bar holder Ø25 mm with internal coolant (Oesterle)

• Precision reducing sleeve D=25/16 (Oesterle)

• Precision reducing sleeve D=25/12 (Oesterle)

• Precision reducing sleeve D=25/06 (Oesterle)

• Collet chuck ER20, shank D=25 mm (Oesterle)

• Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm

• Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT)

• Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT)

• External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle)

• Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle)

• High-pressure pump 40 bar with replaceable filter cartridge

• Coolant gun including its own pump

• Collet chuck
