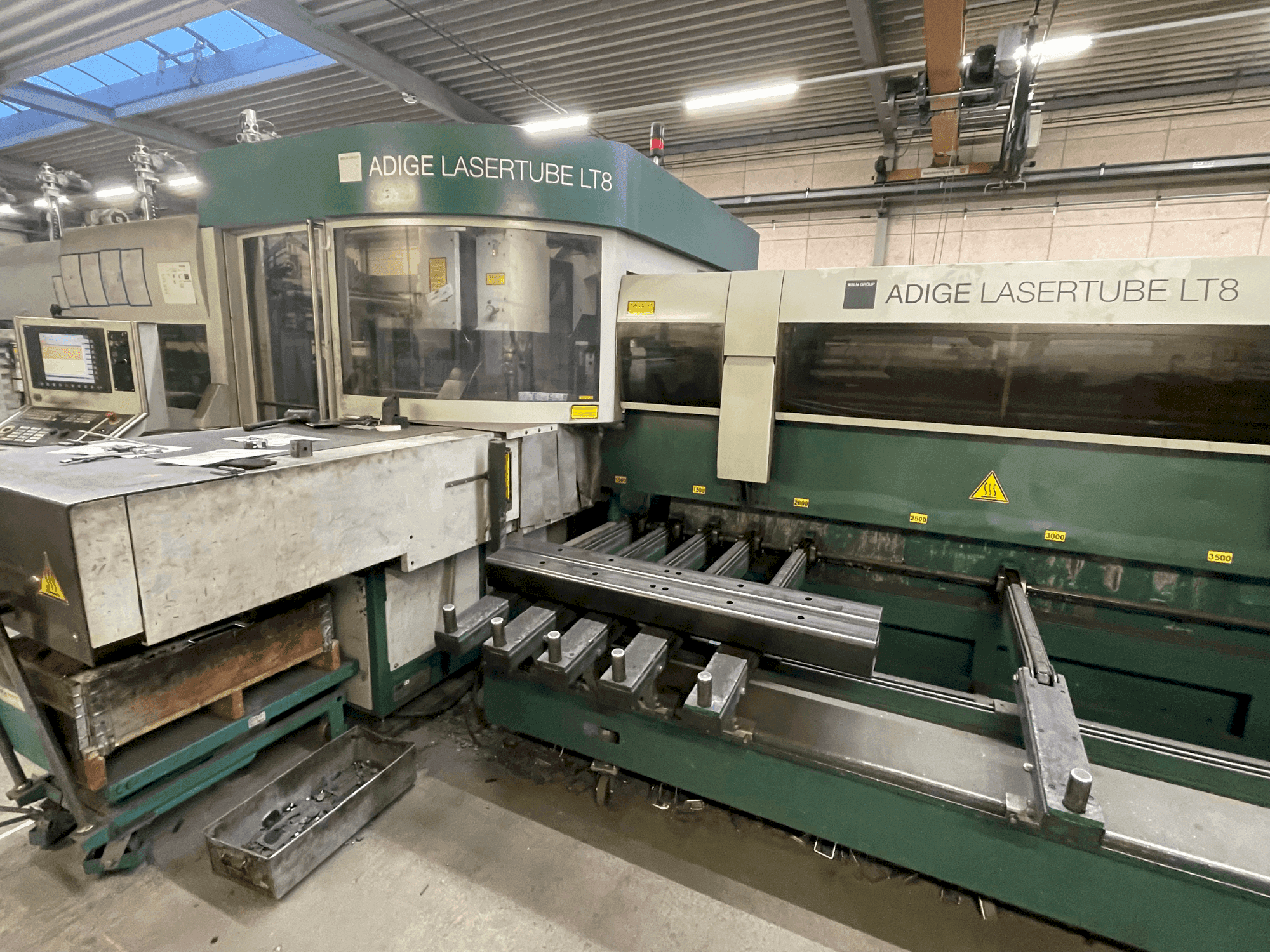

BLM - Adige LT8NL-CUT-BLM-2010-00001

Additional equipment

• 8.5 meter automatic bundle loader input at the rear, manual loading at the front
• 6.5 meter output length
• Filter installation
• 3D cutting head

Machine Benefits

Qualitative Machine Benefits

• Full automatic setup operations for loader, machine, tube supports, and unloader
• Compatible with sections like flats from 40x5 to 200x12 mm, and l, c, u profiles from 30x20 to 200x200 mm
• Compatibility with sections, dimensions, thickness, and initial length to be verified with the manufacturer.

Technical Machine Benefits

• Round shape: 12 to 220 mm
• Square shape: 12 to 200 mm
• Rectangular and flat-oval shape: inscribed in a circle of 285 mm with a minimum side of 10 mm and maximum side of 200 mm
• Maximum bar length: 6500 mm
• End bar minimum scrap: 110 mm
• Maximum bar weight: 35 kg/m
• Fully automatic bars loading, cutting, and unloading of processed parts
• High flexibility and productivity with modular system configuration
• Available with one or two loading devices, frontward and backward
• Three parts unloading positions with two-position automatic scraps collection device

Extra Information

Machine still under power
