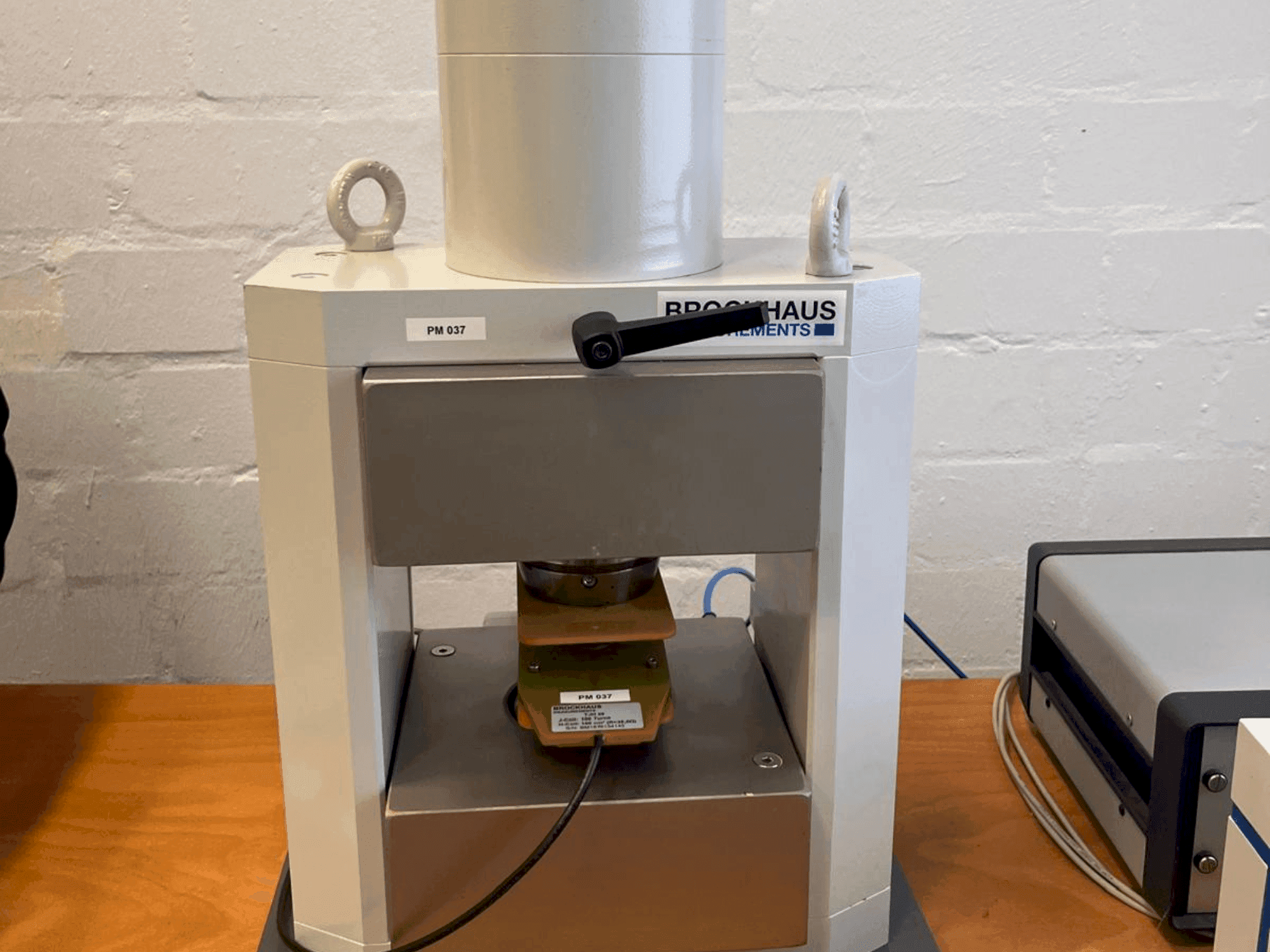

BROCKHAUS - HG200 DDE-MEA-BRO-2018-00001

Additional equipment

• Includes coil TJH 26
• Includes Fluxmeter F10-3D

Machine Benefits

Technical Machine Benefits

• Measuring ranges: 1, 10, 100 mvs and ± 1vs
• Drift: < ±1µvs/min
• Measuring coils: surrounding coils, pole coils, field coils
• Power supply: 0 to ±125v, 0 to ± 25a (50a optional)
• Electromagnet with interchangeable poles and coil fixture
• Maximum field strength: 1200 – 1800 ka/m; 2400 ka/m; 3200 ka/m (dependent on air gap)
• Air gap: 0 – 80mm
• Measuring poles: interchangeable
• Cabinet measuring table with container
• Mains supply: 3 x 200 – 3 x 400v ac, 16a 50/60hz

Extra Information

Control Unit Fully computer-controlled measuring system Computer: PC, monitor, printer Software: MAG Expert under Windows Machine-Specific Data Measurement capabilities: All hard magnetic materials (AlNiCo, ferrite, SmCo, NdFeB, plastic composite) Measurement with constant flux alteration d/dt J-compensated surrounding coils, pole or field coils Measurement at temperatures up to 200°C Real-time display of hysteresis during measurement BROCKHAUS® MAG Expert software for measurement, presentation, and integration into QM systems Electromagnet with heating poles J-compensated coil; Potential coil Other measuring systems: AC/DC Hystograph, XYZ Field Scanner, Fluxmeter, Gaussmeter Measuring technology for soft magnetic materials Magnetizing technology Hystograph HG 200 Segment pole caps, Field coil, Measuring fixture with 2 drift-free Fluxmeters
