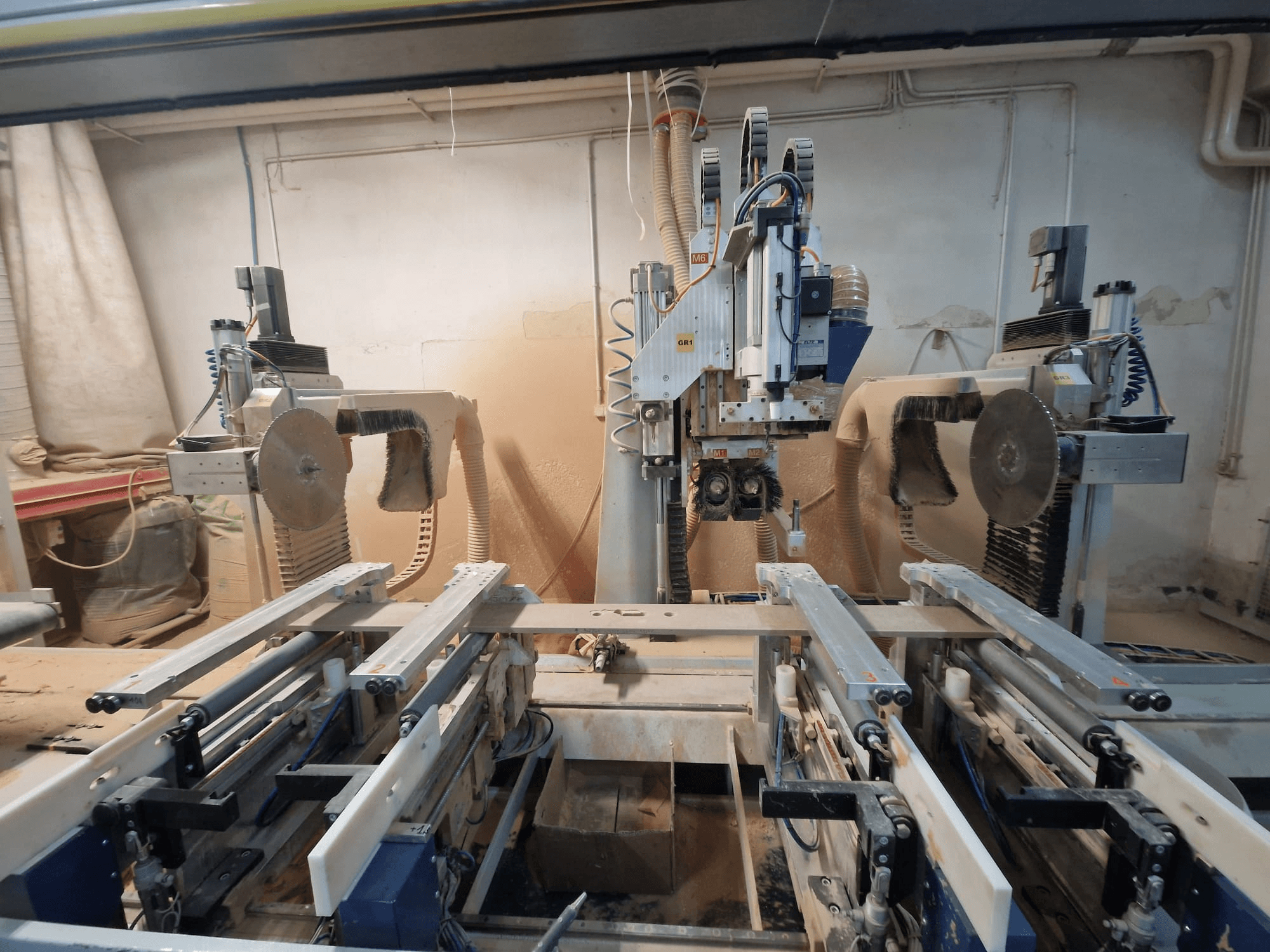

CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.
CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.

COMEC - MD JAMB 9XPL-CNC-COM-2015-00001

MXN 2,751,167
Precio GINDUMAC
(Ex works)
Obten un presupuesto oficial
Visita la máquina
haz una contraoferta
Descargar PDF

¿Tiene más preguntas? ¡Contáctenos!

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Contacta por Whatsapp
Mostrar en idioma original

CNC Wood Machining Centre manufactured in 2015. This COMEC MD JAMB 9X features a multi-head design ideal for machining door frames, including DIN-adjustable options. It includes an automatic unloading conveyor and advanced CNC control with NC CAM SUITE software, allowing for simultaneous operations across its three independent heads. Consider the opportunity to buy this COMEC MD JAMB 9X CNC Wood Machining Centre. Contact us for further details.

Resumen

  • marca: COMEC
  • año: 2015
  • MODELO: MD JAMB 9X
  • tipo de aplicación: Mecanizado CNC
  • Ubicación: Polonia
  • tipo de máquina: Centro de mecanizado CNC para madera

Información técnica - COMEC MD JAMB 9X

Recorrido

  • Recorrido eje X: 2500 mm
  • Recorrido eje Y: 350 mm
  • Recorrido eje Z: 112 mm

Información adicional

  • Heads: 3 independent CNC-controlled heads (left, central, right); control can independently manage all 3 heads on all axes; allows simultaneous identical or different operations

  • Left and right heads:

    • 1 cutting/drilling unit per head with automatic pneumatic inclination of saw blades and drill groups

    • 2 counter-rotating horizontal electro-spindles for milling

    • 1 milling and mortising electro-spindle

    • Special sleeve for slotting on the lower side of the workpiece

  • Vertical units:

    • 1 vertical electro-spindle for milling

    • 1 vertical electro-spindle for drilling seats for metal clips

    • 1 vertical electro-spindle with special drilling head (5 drills arranged at 90°)

  • Workholding/benches:

    • Workpiece holding bench divided into 4 elements, adjustable on ball-rail guide system

    • Automatic locking, unlocking, and positioning controlled by the central head (CNC-controlled)

  • Control and software:

    • CNC control with NC CAM SUITE software

    • CAD/CAM: TPAED132 with 3D workpiece visualization, integrated movement optimizer, and dedicated post-processor

  • Safety:

    • Full perimetral safety enclosure

    • CE compliant

Additional equipment

  • Automatic unloading conveyor

  • Chip evacuation conveyor

  • Special loading benches for fully assembled door jambs


*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.

Tu gerente de cuenta:

Borja Garcia

Borja Garcia es parte de nuestro equipo de especialistas en maquinaria usada y será tu contacto directo por consultas sobre la máquina. No dudes en ponerte en contacto.

contáctanos

Opciones de pago

  • Pago por adelantado

  • Financiación de activos
