- ➤ Used DECKEL MAHO DMC 60 H Hy Din For sale | gindumac.com

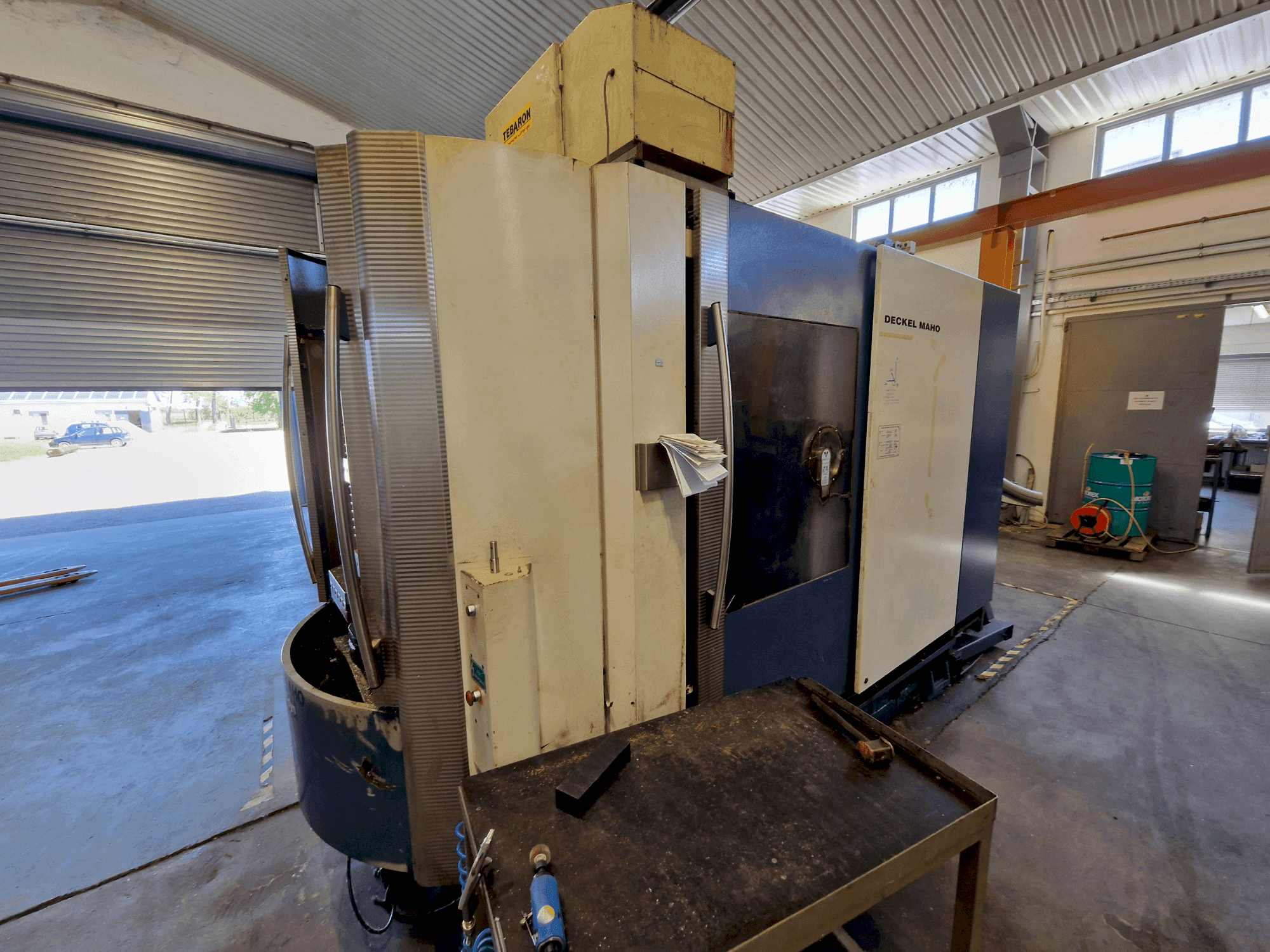

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.
Resumen
- marca: DECKEL MAHO
- año: 2001
- MODELO: DMC 60 H Hy Din
- horas de producción: 28815
- tipo de aplicación: Fresado
- Ubicación: Hungría
- tipo de máquina: Centro de mecanizado horizontal
Información técnica - DECKEL MAHO DMC 60 H Hy Din
Dimensiones
- Largo de mesa: 400 mm
- Carga de mesa: 350 kg
- Ancho de mesa: 500 mm
Recorrido
- Recorrido eje X: 600 mm
- Recorrido eje Y: 560 mm
- Recorrido eje Z: 560 mm
Especificación Técnica
- Potencia del husillo: 13 kW
- Velocidad del husillo: 15000 RPM
Información adicional
Additional equipment
- Multiple tool magazine options
- Advanced tool handling and balancing features
- High-precision measurement system
- Efficient internal coolant supply (optional)
Machine Benefits
Qualitative Machine Benefits
- Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
- Coolant system: optional internal coolant setup enhances tool performance and longevity.
- Accurate measurement: high-resolution systems ensure precise machining results.
Technical Machine Benefits
- Torque: 124 nm (s1), 191 nm (s6)
- Speed max. : 25. 7 rpm
- Pallet clamping force: 80,000 n
- Tilting moment max. : 8000 nm
- Tangential moment (clamped max. ): 6000 nm
- Tangential moment (released max. ): 2600 nm
- Number of pallets: 2
- Guide slot (number x width): 1 x 14h7 mm
- Precision movement: infinitely programmable feed speeds ensure precise control.
- Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
