DMG - CMX 1100VPL-MIL-DMG-2020-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used DMG CMX 1100V For Sale | gindumac.com

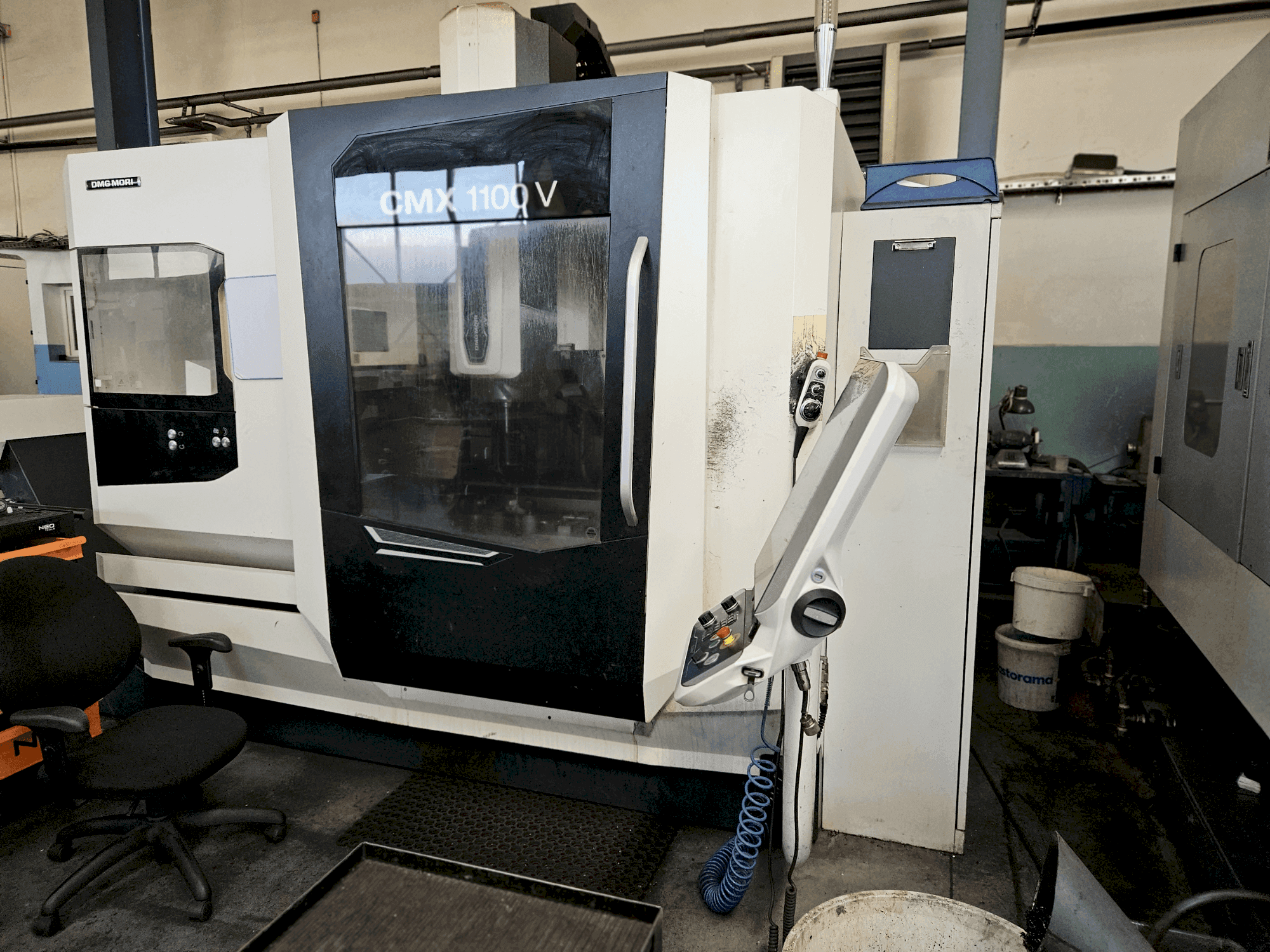

This 3-axis DMG CMX 1100V vertical machining center was manufactured in 2020. It features a spindle speed range of 20 to 15000 rpm, a tool clamping force of 9 kN, and a maximum table load of 1000 kg. The table clamping surface measures 1400 x 560 mm. Ideal for precision machining, buy this DMG CMX 1100V vertical machining center. For more information about this vertical machining center, please reach out to us.
Resumen
- marca: DMG
- año: 2020
- MODELO: CMX 1100V
- horas de producción: 16844
- tipo de aplicación: Fresado
- Ubicación: Polonia
- tipo de máquina: Centro de mecanizado vertical
Información técnica - DMG CMX 1100V
Dimensiones
- Largo de mesa: 1400 mm
- Carga de mesa: 1000 kg
- Ancho de mesa: 560 mm
Recorrido
- Recorrido eje X: 1100 mm
- Recorrido eje Y: 560 mm
- Recorrido eje Z: 510 mm
Especificación Técnica
- Velocidad del husillo: 15000 RPM
Información adicional
Additional equipment
- Tool Magazine: 30-position with double gripper
- Coolant-Air Switching: Via M function (external)
- Production Package 1: Internal coolant supply at 12 bar / Scraper-type chip conveyor with a 250-liter tank (left side)
- Work area flushing with M function / Spray gun / Manual control panel (handwheel) / Automatic work area roof (controlled by M function)
- 4-color signal lamp / Preparation for Oil Mist Extractor
- Tool Loading/Unloading: Through magazine door during machine operation
Machine Benefits
Technical Machine Benefits
- C-frame mechanical design
- Direct measuring system for x, y, z axes, includes linear scales with air purge for the measurement system
- Spindle inlinemaster® with speed range: 20 to 15,000 rpm
- Tool taper: sk40 din69871 with big plus connection
- Main drive ac: 20 kw (40% dc) / 14. 5 kw (100% dc)
- Torque: 121 nm (40% dc) / 84 nm (100% dc)
- Oil mist lubrication for spindle bearings
- Cooling unit: 150 w for main drive
- Precision probing package: renishaw probes for siemens control
- Working hours: power on 16844h, spindle: 7453h
Extra Information
machine is not under power / Stored in a warehouse / Before disassembly, the machine was thoroughly inspected by the service team. A service report with geometry measurements is available. The equipment includes a tool probe, handwheel, chip flushing gun, and calibration pin for the tool measurement probe, workpiece probe.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
