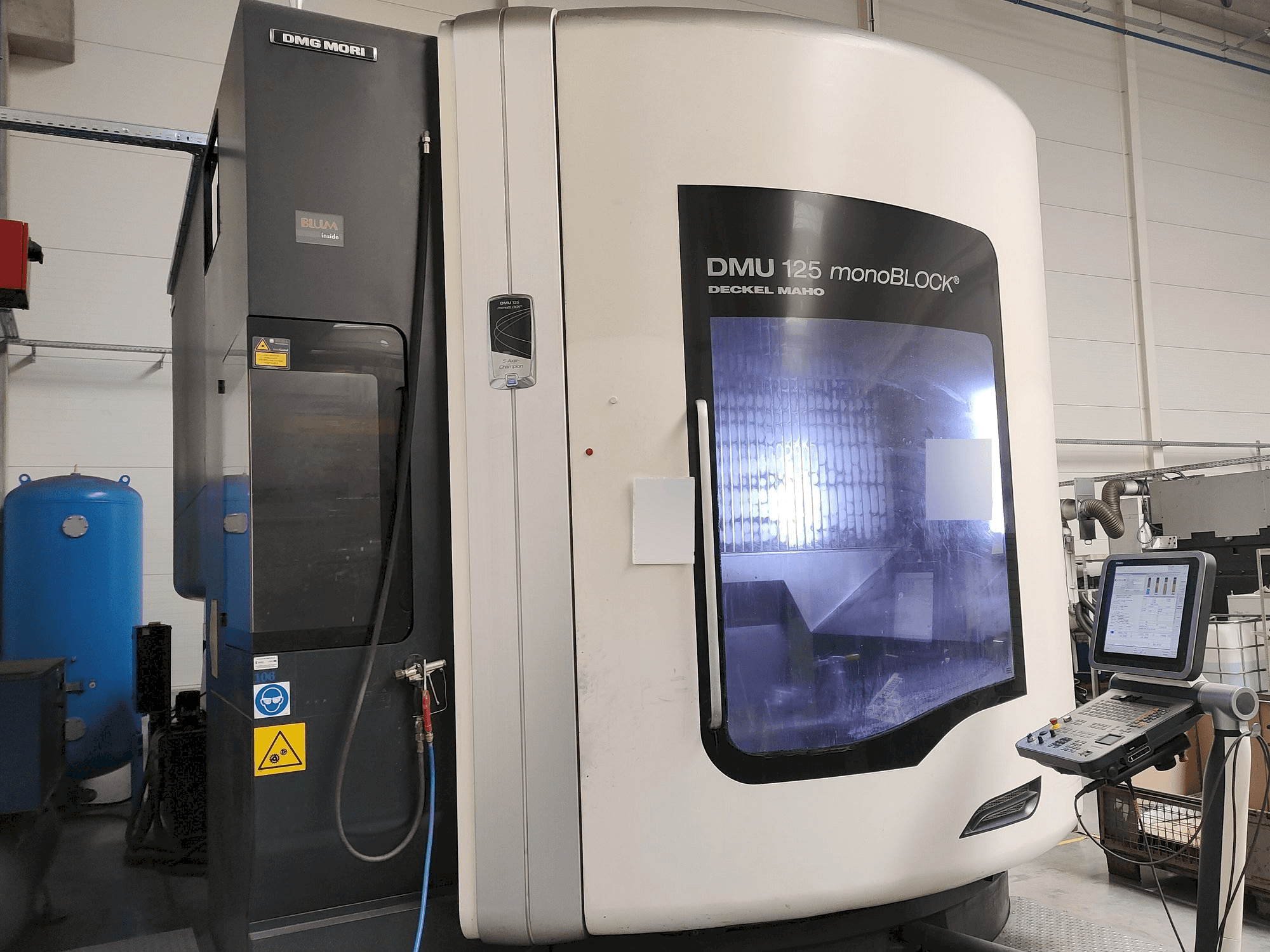

DMG MORI - DMU125 monoBLOCKPL-MIL-DMG-2014-00003

Machine Benefits

Qualitative Machine Benefits

• Machine in very good, working condition, ready for tests. Full history service.
• Laser vertical measurement of tool length and diameter.
• 3d quickset toolkit for checking and compensating the kinematic accuracy of the machine in a 4/5 axis configuration
• Mpc protection of the machine tool by immediate shutdown
• Coolant tank 600 l paper filter internal coolant feed 40 bar / 23 l / min through the center of the spindle
• Coolant nozzles for vertical headstock 15 nozzles for liquid, 5 for air separator for oil or emulsion mist mechanical filter capacity 1,100 m3 / h
• Tuning cycle atc 4,160. 00 programmable setting of feed parameters
• Grid platforms for easier access to machining area operating mode 4 "process monitoring in production"
• Wide working range for workpieces up to ø 1. 440 mm, 790 mm height and max. 2. 600 kg, with swivel rotary table, as well as workpieces up to 1. 600 × 1. 440 × 790 mm and max. 6. 000 kg with rigid table
• Loading by crane from above up to over the table center as standard accessibility and ergonomics: door opening 1. 900 mm, tool loading during the main time and complete accessibility from the front lowest footprint with 25 m² installation area

Technical Machine Benefits

• Max workpiece height: 790 mm
• Tool clamping to din 69872
• Vertical headstock
• Tool change system double gripper
• Chain tool magazine with 30 pockets, sk 40
• Worktable
• Nc swivel rotary table tandem drive table plate c-axis: d 1,250 x
• 1,000 mm integrated in rigid table 1,400 mm x 1,000 mm in 1x t-slot 14 permissible load: 2,600 kg
• Bore pattern 8 x m12 rotation c axis: 360°swivel range a-axis: -120°/-120° drive a axis: gantry / tandem drive (basic machine without swivel rotary table)
• Renishaw infrared measuring probe pp60 optical (omp 60) sk 40 tool measurement in the blum workspace.
