DMG MORI - Lasertec 65 3DDE-MIL-DMG-2016-00004
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used DMG MORI Lasertec 65 3D Sale | gindumac.com

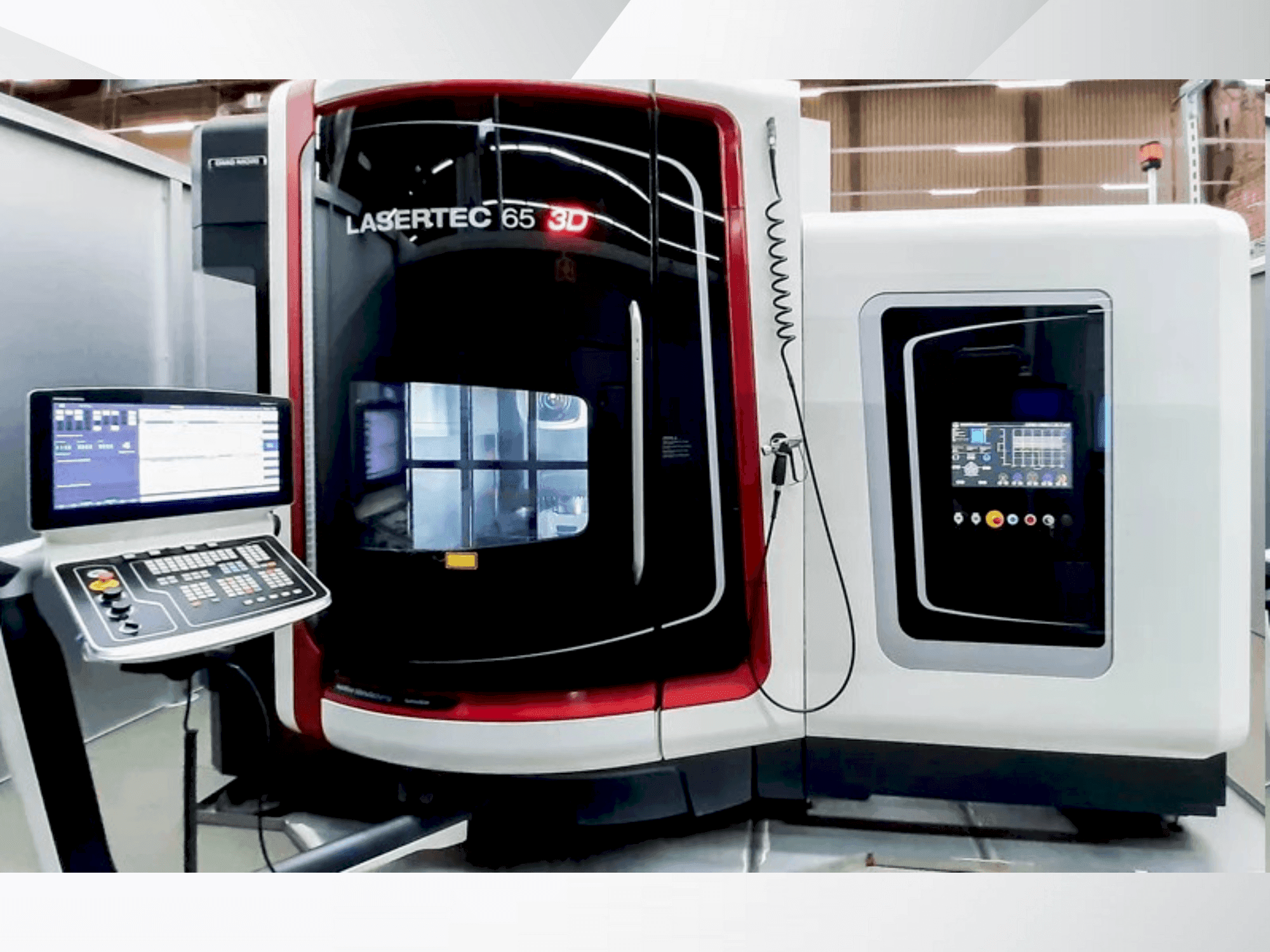

This 5-axis DMG MORI Lasertec 65 3D universal machining centre was manufactured in 2016. It features a motorized spindle with a speed of 1,000 rpm, a HSK-A 63 tool holder, and a 30-position kettle magazine. The NC swivelling rotary table supports milling and turning with a permissible load of 600 kg. Additional features include a link belt chip conveyor with a 600-liter coolant system and an external coolant supply. For more information about this universal machining centre, please reach out to us.
Resumen
- marca: DMG MORI
- año: 2016
- MODELO: Lasertec 65 3D
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado universal
- Marca de unidad de control: SIEMENS
Información técnica - DMG MORI Lasertec 65 3D
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: 840D sl FD Operate
Recorrido
- Número de ejes: 5
- Recorrido eje X: 735 mm
- Recorrido eje Y: 650 mm
- Recorrido eje Z: 560 mm
Especificación Técnica
- Velocidad del husillo: 1000 RPM
- Refrigeración a través del husillo: Sí
Información adicional
Additional equipment
- 2 X laser safety windows (double window)
- CELOS® with Siemens 840D sl FD Operate including 21.5 ERGOline® Control
- Paper belt filter
- Energy measuring device for CELOS
- the laser hours are 3017h switch-on hours of the unit and 401h productive hours, i.e. laser on.
- Machine has 12,829h switch-on hours and 6,469h productive hours, program run.
Machine Benefits
Qualitative Machine Benefits
- Chip flushing in work area door
- Flushing gun with pump
- Oil and emulsion mist separator
- Blast air through spindle centre
- 3d path control
- Nc swivelling rotary table: milling & turning
- Infrared measuring probe: renishaw pp60 optical (omp 60)
- Combined tool measurement in the work area: blum laser 3d quickset
- Electronic handwheel
- Deckel maho mdynamic package
Technical Machine Benefits
- Cooling pressure: 40 bar
- Kettle magazine: 30 magazine positions hsk-a 63
- Chip tray with integrated coolant tank: 5001
- Table top c-axis: d 680 mm
- C-axis speed: 1000 rpm
- Permissible load: 600 kg
- Link belt chip conveyor with coolant system: 600 litres
- Discharge height: 950 mm
- Width: 670 mm
- External coolant supply: 4 bar / 40 l/min
Extra Information
Machine still under power / OEV was 1,1 Million Euro / 1,1 Millionen Neupreis - / Machine was technically retrofitted to state of the art 5
