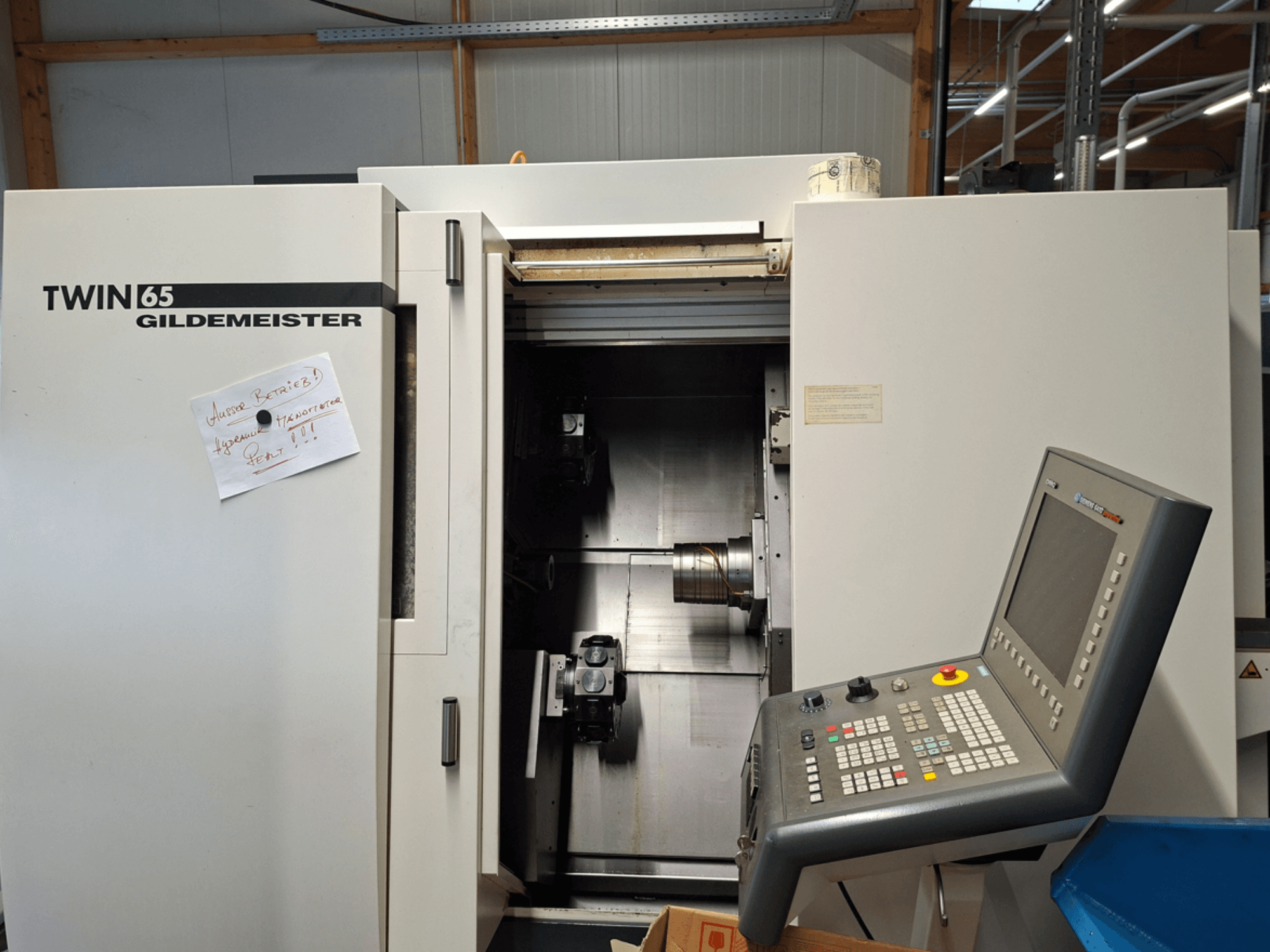

DMG - TWIN 65 Rg1AT-TUR-DMG-2013-00001

• Configuration/features:

  • 2 cross slides

  • 2 star turrets, 12 stations each, with live tooling

  • Main and counter spindles

  • 2 tool drives

  • 2 C-axes and 1 Y-axis

• Left spindle (main):

  • Chuck diameter: 150 mm

  • Spindle flange: 140 h5 mm

  • Spindle bore: 79 mm

  • Front bearing diameter: 165 mm

  • Power: 15 kW (100% ED) / 20 kW (40% ED)

  • Torque: 120 Nm (100% ED) / 160 Nm (40% ED)

  • Speed range: 25–5600 rpm

• Right spindle (counter/sub):

  • Chuck diameter: 150 mm

  • Spindle flange: 140 h5 mm

  • Spindle bore: 79 mm

  • Front bearing diameter: 165 mm

  • Torque: 120 Nm (100% ED) / 160 Nm (40% ED)

• Axes/travels:

  • Slide 1: X 220 mm, Z 320 mm, Y ±30 mm

  • Slide 2: X 120 mm, Z 345 mm

  • Slide 3: Travel 145 mm

• Turrets/tooling:

  • Turret 1: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)

  • Turret 2: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)

• Equipment/options on machine:

  • Differential clamping for main spindle

  • Differential clamping for counter spindle

• Paint/enclosure (Gildemeister standard):

  • Machine enclosure and work area door: Calcite white (RAL 9010)

  • Chip conveyor: Titanium gray (RAL 7016)

  • Chip conveyor hood: Calcite white (RAL 9010)

  • Machine base and control cabinet: Titanium gray (RAL 7016)

Additional equipment

• Chip conveyor (with hood)

• Bar processing package RG 1:

  • Workpiece pick-up device with NC-controlled carriage

  • Hydraulically operated gripper arm, pneumatically operated gripper

  • 1 set of gripper jaws (blanks)

  • Conveyor belt

  • Capacity: Ø 6–65 mm, length approx. 300 mm; max. 3.5 kg (4.5 kg for TWIN 65)

• Preparation/connection for bar feeder or bar feeder magazine

• Coolant spray gun

• DMG indicator light, 4-way (stack light)

• Electrical/mechanical connection for oil mist separator

• Automatic sliding hood operation

• EDS pressure switch for clamping device

• DMG Netservice (on-board)

• “Green light for your machine” pre-installed on the control unit (status/indicator)
