- ➤ Used DN SOLUTIONS DNX 2100S Advanced | Turn-Mill Centre

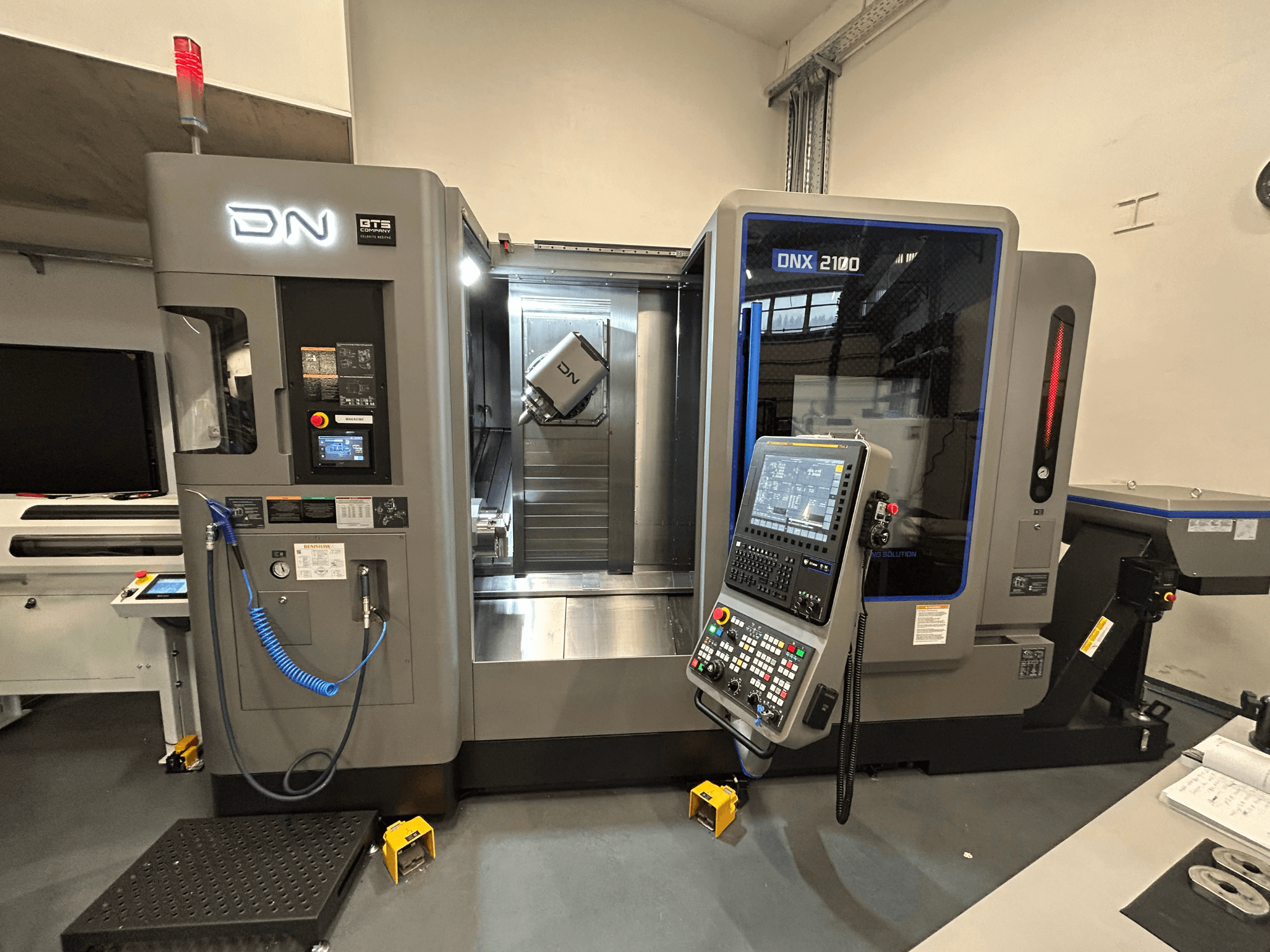

This 4-axis DN Solutions DNX 2100S Advanced was manufactured in 2025. It features a FANUC i-Series control, a 6-axis configuration including B and C axes, and a tool magazine with 60 positions. The machine offers full turn-mill capabilities, through-spindle coolant up to 70 bar, and a Renishaw probing system. Consider the opportunity to buy this DN Solutions DNX 2100S turn-mill centre. Contact us for more information about this machine.
Resumen
- marca: DN SOLUTIONS
- año: 2025
- MODELO: DNX 2100S Advanced
- horas de producción: 7
- tipo de aplicación: Torneado
- Ubicación: Eslovenia
- tipo de máquina: Centro de torneado y fresado
- Marca de unidad de control: FANUC
Información técnica - DN SOLUTIONS DNX 2100S Advanced
Unidad de Control
- Marca del control: FANUC
- Modelo del control: i Series iPlus
Información adicional
Axes Configuration: 6 axes (X, Y, Z, B, C1, C2)
B-axis milling spindle (indexing accuracy 0.0001°)
Milling/Main Spindle:
Tool Interface: HSK-C63
Max Speed: 12000 rpm
Power: 18.5 / 15 kW
Max Torque: 58 Nm
B-axis Travel: 240° (±120°)
Left Spindle:
Chuck Size: Ø255 mm (10")
Max Speed: 4000 rpm
Power: 22 / 15 kW
Max Torque: 456 Nm
Right (Sub) Spindle:
Chuck Size: Ø210 mm (8")
Max Speed: 5000 rpm
Power: 18.5 / 15 kW
Max Torque: 326 Nm
Tool Magazine: 60 positions
Features: Driven tools, Full turn-mill capability
Through-Spindle Coolant: 70 bar
Programmable Coolant Pressure (7 steps)
Coolant Through Opposite Spindle
Oil Skimmer
Chuck Washing
Work Area Washing: 4.5 bar
Coolant Level and Pressure Monitoring
Oil Mist Collector Preparation
Hinged Belt Chip Conveyor
Renishaw Probing System (Measuring Head Included)
Automatic Tool Measurement
Radio Tool Measurement System RMP60
Manual Pulse Generator (MPG)
3-Color Signal Tower
Automatic Bar Feeder: 1 meter (included)
Bar Feeder Interface Package
Parts Conveyor with Belt
Part Ejection from Sub Spindle
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
