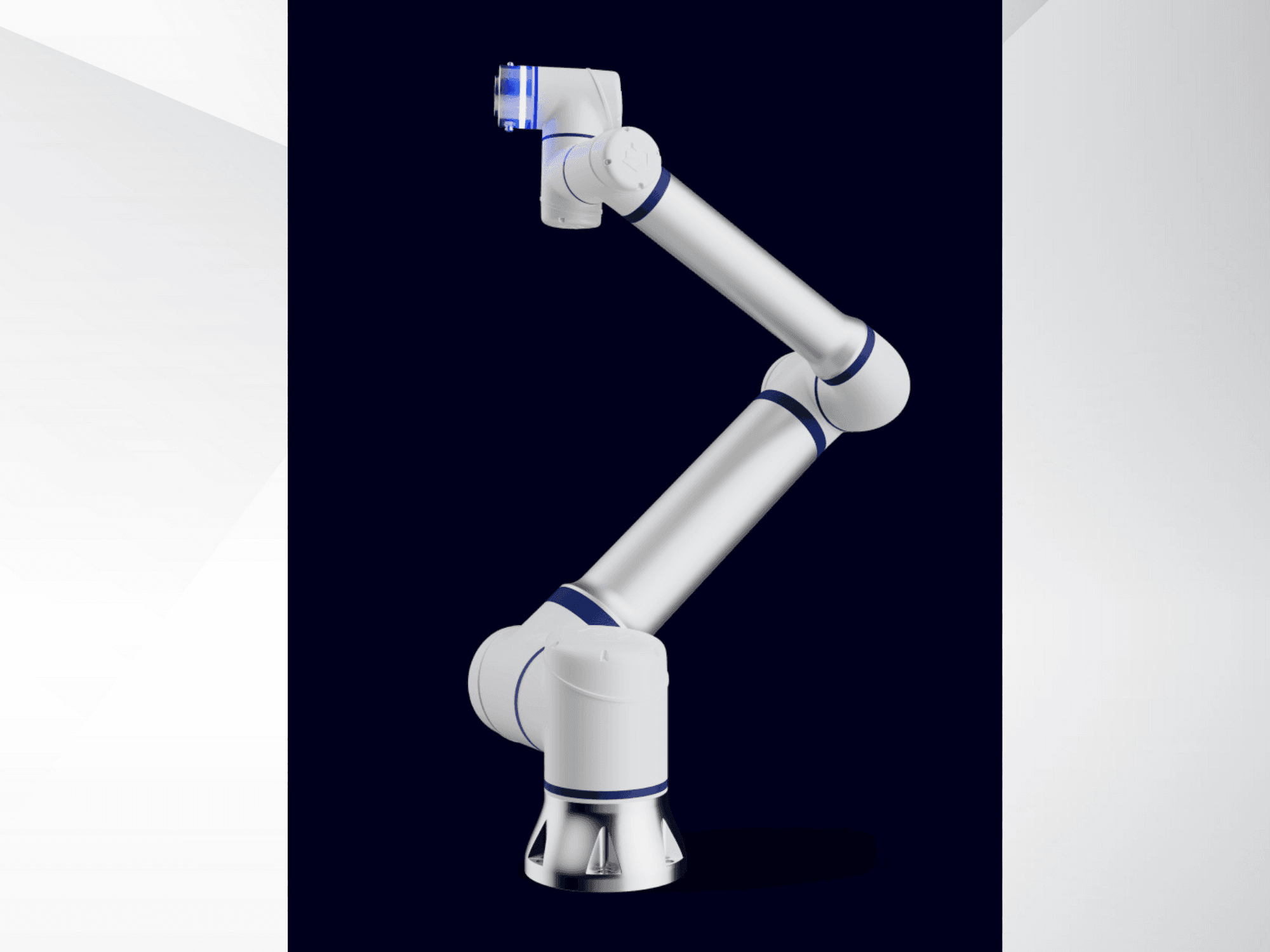

This 6-axis ELITE Robots CS625 was manufactured in 2025, featuring a payload capacity of 25 kg and a reach of 1500 mm. It includes a controller, teach pendant, and offers a protection class of IP54, with an optional upgrade to IP68. Ideal for versatile applications requiring precise movement and positioning. If you are looking to get high-quality robotic arm capabilities, consider the ELITE Robots CS625 machine we have for sale. Contact us for more information about this machine.
Resumen
- marca: ELITE
- año: 2025
- MODELO: Robots CS625
- tipo de aplicación: Robótica
- Ubicación: Alemania
- tipo de máquina: Brazo robótico
Información técnica - ELITE Robots CS625
Dimensiones
- Peso de la máquina: 58 kg
Recorrido
- Número de ejes: 6
Información adicional
Machine Benefits
Qualitative Machine Benefits
- New and still in original packaging
- Comes with guarantee
Technical Machine Benefits
- Reach: 1500 mm
- Repeatability: ±0. 05 mm
- Protection class: ip54 (optional ip65/ip68)
- Temperature range: -10°c to 50°c
- Relative humidity: <90% (non-condensing)
- Noise reduction: <70db
- Power usage: 625w
- Mounting: any angle
Extra Information
Movement Joints rotation: J1-J6 ±360° Joints speed: J1-J2 125°/s, J3 150°/s, J4-J6 210°/s Typical TCP Speed: 2.0 m/s Tools Tool I/O connector: T1: M8, 8pin; T2: Ø 12.8mm, 4pin Tool I/O ports: 4 configurable DI/DO; 1 AI, 1 AO Tool I/O power supply: T1: 0 / 12V / 24V; 3A / 2A / 1A | T2: 24 V; 5A Tool I/O communication: RS485, Modbus RTU Machine-Specific Data Footprint: Ø 240 mm Material: Aluminum, steel, plastic, rubber Cable length: 5.5m
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
