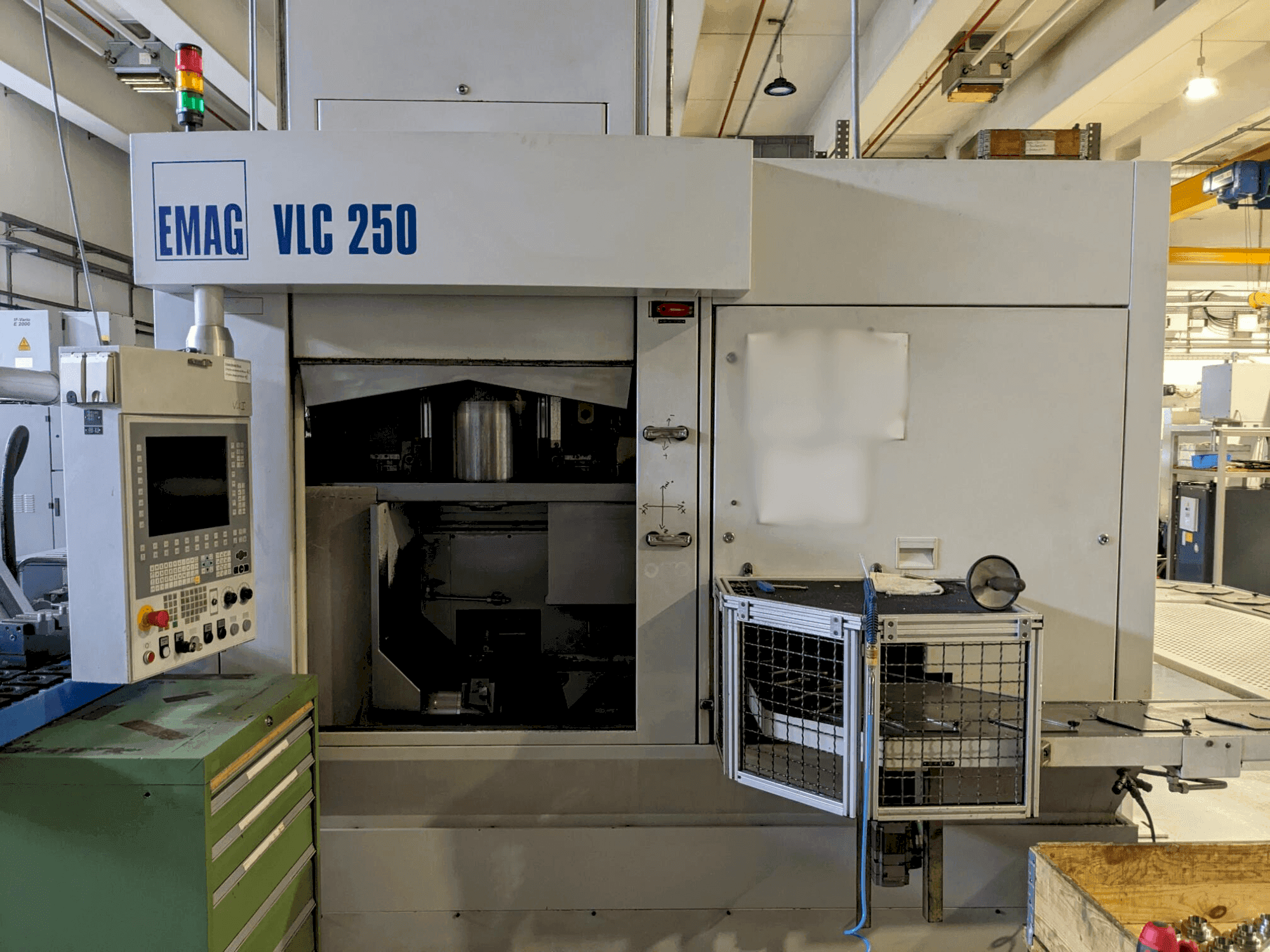

EMAG - VLC 250DE-TUR-EMA-2011-00002

Additional equipment

• Tool turret with 12 stations
• Drilling station for one drilling tool with Capto C8 holder incl. IK
• Full clamping cylinder SMW SIN-S 125
• 3-jaw power chuck with quick jaw change system
• Coolant system with paper band filter SBF100 (Flow rate 100 l/min, 540l)
• Electrostatic emulsion mist extraction IFS IFE2000 (2000m³/h)
• Hinged belt chip conveyor with integrated cooling lubricant tank (Capacity approx. 360 litres, Chip discharge height 1250mm)
• Open pallet circulation system as L-belt with pick-up station (Storage capacity 30 workpieces, Diameter 30 - 170mm, Workpiece height max. 175mm, Max. weight 12kg)
• Suction included

Machine Benefits

Technical Machine Benefits

• Torque: 330 nm (100% ed), 460 nm (40% ed)
• Shank diameter: 40mm
• High-performance main drive and tool carrier
• Quick jaw change system for the 3-jaw power chuck
• Integrated cooling and chip management systems
• Torque at 100% ed: 330 nm (main drive), 15 nm (tool carrier)
• Torque at 40% ed: 460 nm (main drive), 24 nm (tool carrier)
• Spindle head size 6
• Max. Actuating force fv at 70 bar: 84 kn
• Max. Actuating force fz at 70 bar: 71. 75 kn

Extra Information

Machine still under power
