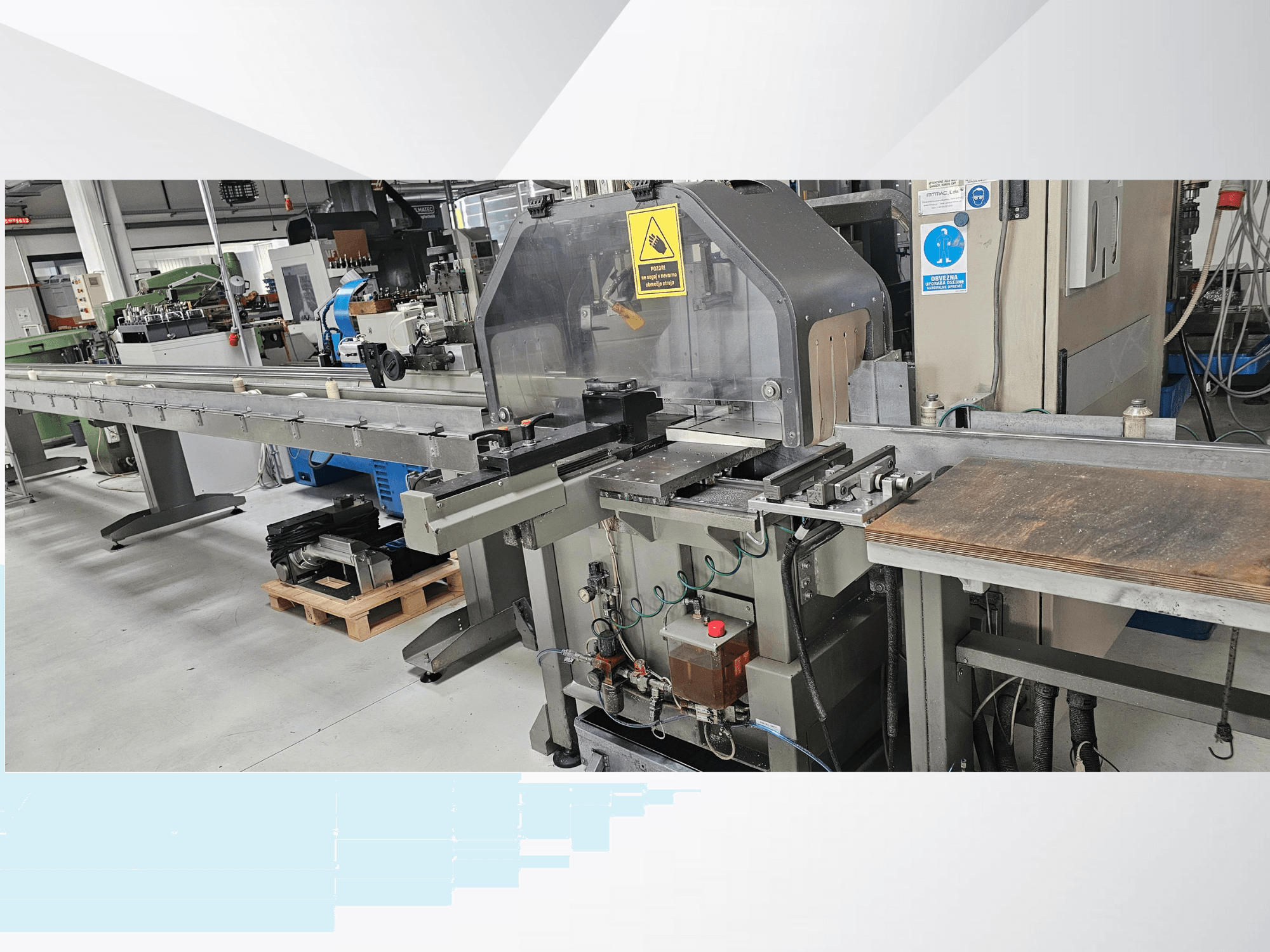

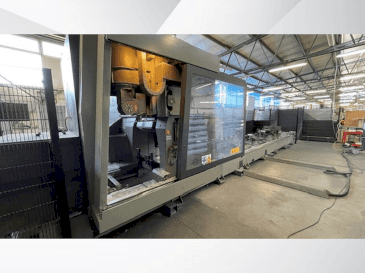

Emmegi - VEGAMATICSI-OTH-EMM-2008-00001

Additional information

• Power supply: 400 V / 3-phase / 50 Hz

• Blade motor power (50 Hz): 3 kW

• Blade motor power (60 Hz): 36 kW

• Feeder travel (U axis): 7395 mm

• Feed speed (U axis): 0–60 m/min

• Acceleration (U axis): 33 m/s²

• Positioning accuracy (U axis): ±015 mm

• Blade rotation angle (B axis): from -45° to +45° (optional: -225° to +225°)

• Rotation speed (B axis): 1833 rpm

• Acceleration (B axis): 093 m/s²

• Positioning accuracy (B axis): ±1°

• Min. cutting length: 7200 mm (with gripper arm L = 937 mm)

• Standard blade diameter: 500 mm (optional 550 mm)

• Blade rotation speed (50 Hz): 2845 rpm

• Blade rotation speed (60 Hz): 3400 rpm

• Operating air pressure: 6–8 bar

• Air consumption per cycle: 120 l/min

• Bar magazine trolley (optional)

• Loading/unloading roller conveyors

• External safety enclosure
