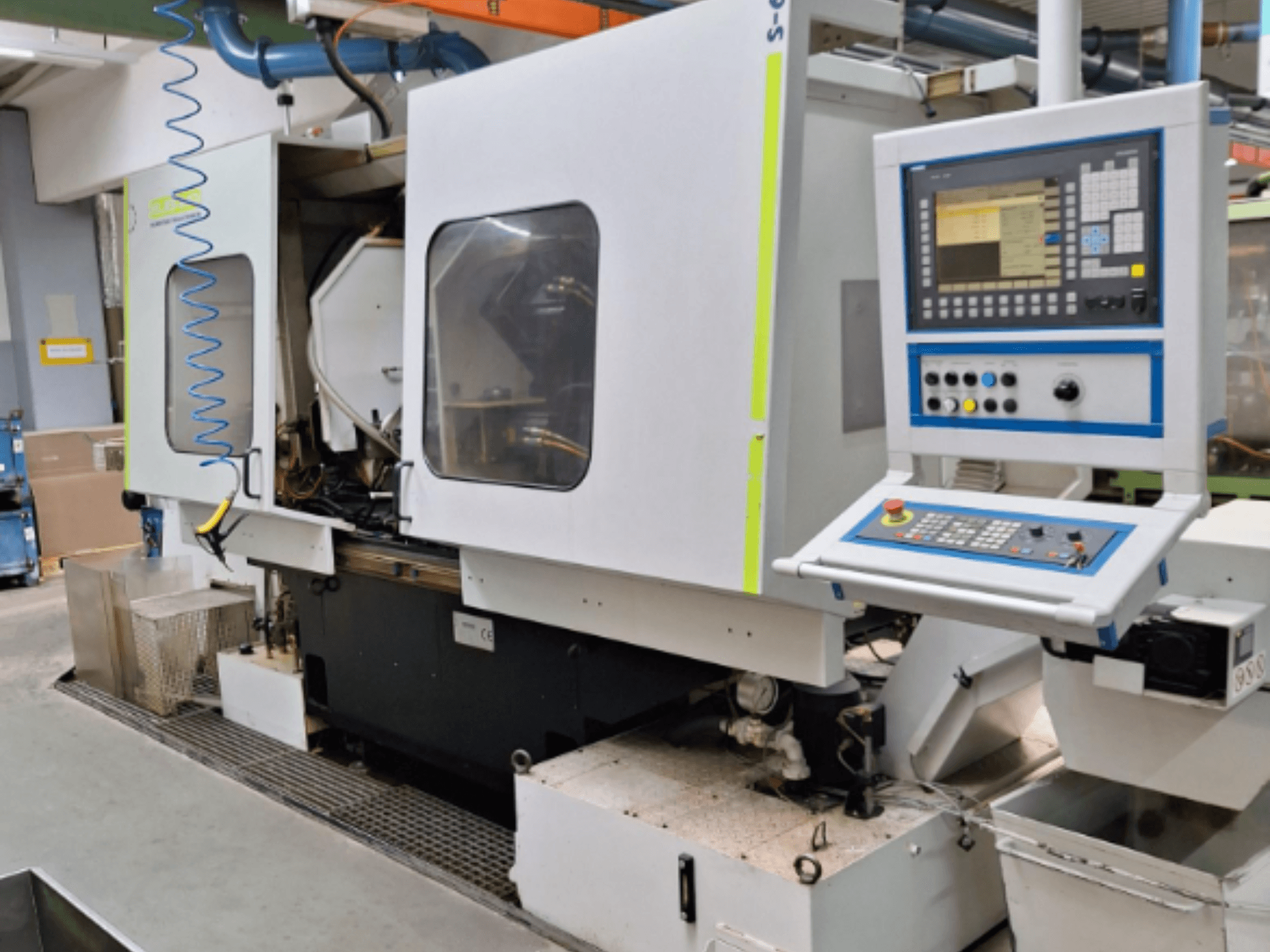

EUBAMA - S6AT-TUR-EUB-2006-00001

• Base frame

• Accessories for base frame

• Hydraulic fittings

• Unit carrier (left) TK420

• 108 bores

• Pipe (coolant return)

• Flange shaft with face gearing

• Stöber servo motor with planetary gearbox

• Limit switch monitoring

• Protective hood

• Form turning unit - material guide

• Guide axis

• Cover plates with empty stations

• Milling unit with NC feed

• Clamping with toothed belt pulley z1=16

• Toothed belt pulley Z1=16

• Toothed belt pulley Z2=20

• Toothed belt 25 AT10 / 730

• Hydraulic power unit 70 100 04358 32 dm³/min

• Central lubrication

• Deflection plate T - T

Additional equipment

• Part ejection console

• Straightening and feed rollers

• Clamping change parts station 1

• Tools and tool holders

• Operating tools S6

• Ejector with gripper

• Clamping jaws (plates)

• Press-in unit for internal hexagon socket

• Face turning head PCD 100-01-101

• Length control with pneumatic cylinder and laser

• Reel support (Star cross)

• Extension (coil height)

• 2-jaw chuck

• Pneumatic accessories (for 4 cylinders)

• 24-volt filling unit integrated with emergency stop valve

• DA 300 compressed air maintenance system
