ERGOMAT - TBC 42DE-TUR-ERG-2006-00001

Additional equipment

• Coolant supply at 6 bar pressure
• Hydraulic unit
• Integrated chip conveyor in the coolant tank, including coolant pump
• Interface for bar feeder (feeder input voltage: 230V)
• Central lubrication system

Machine Benefits

Qualitative Machine Benefits

• Compact design with a generously sized working area
• Live transfer spindle with electronic synchronization with the main spindle

Technical Machine Benefits

• Spindle: 42 mm bore with c-axis functionality
• All axes driven by ge fanuc servo motors
• Eight controlled cnc axes

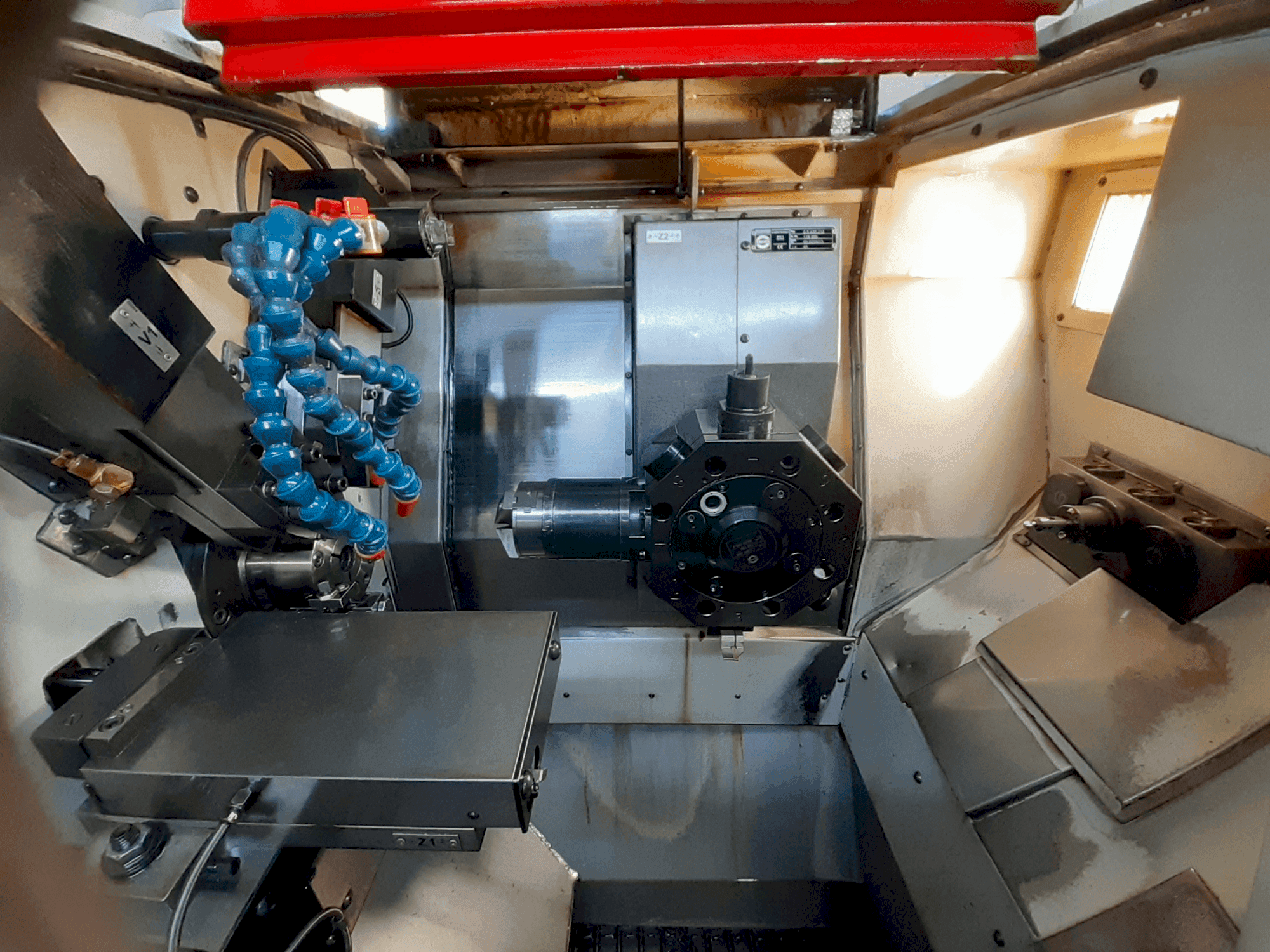

• Tool slides: two vertical tool slides (v1, v2) for forming and parting, including 16 x 16 tool holders / front cnc cross slide (x1/z1) with 16 x 16 tool holder / cnc cross slide (x2/z2) with servo-driven sauter star turret
• Turret: eight tool positions, supporting up to eight live tools / internal coolant supply for the turret with directional logic
• 3-jaw transfer chuck Ø85 with 1. 5 x 60 serration for jaws
• Hydraulic clamping system with hollow clamping cylinder
• Optional rear-end machining with vdi-25 tool holder
• Color scheme: machine in light gray (ral 7035), folding hood in red (ral 3020)

Extra Information

The machine is in exceptionally well-maintained condition, operated only in single-shift mode, and comes from the first owner. Additional options: two driven tools for back-end machining, parts discharge system, and LNS 332/2 bar feeder.
