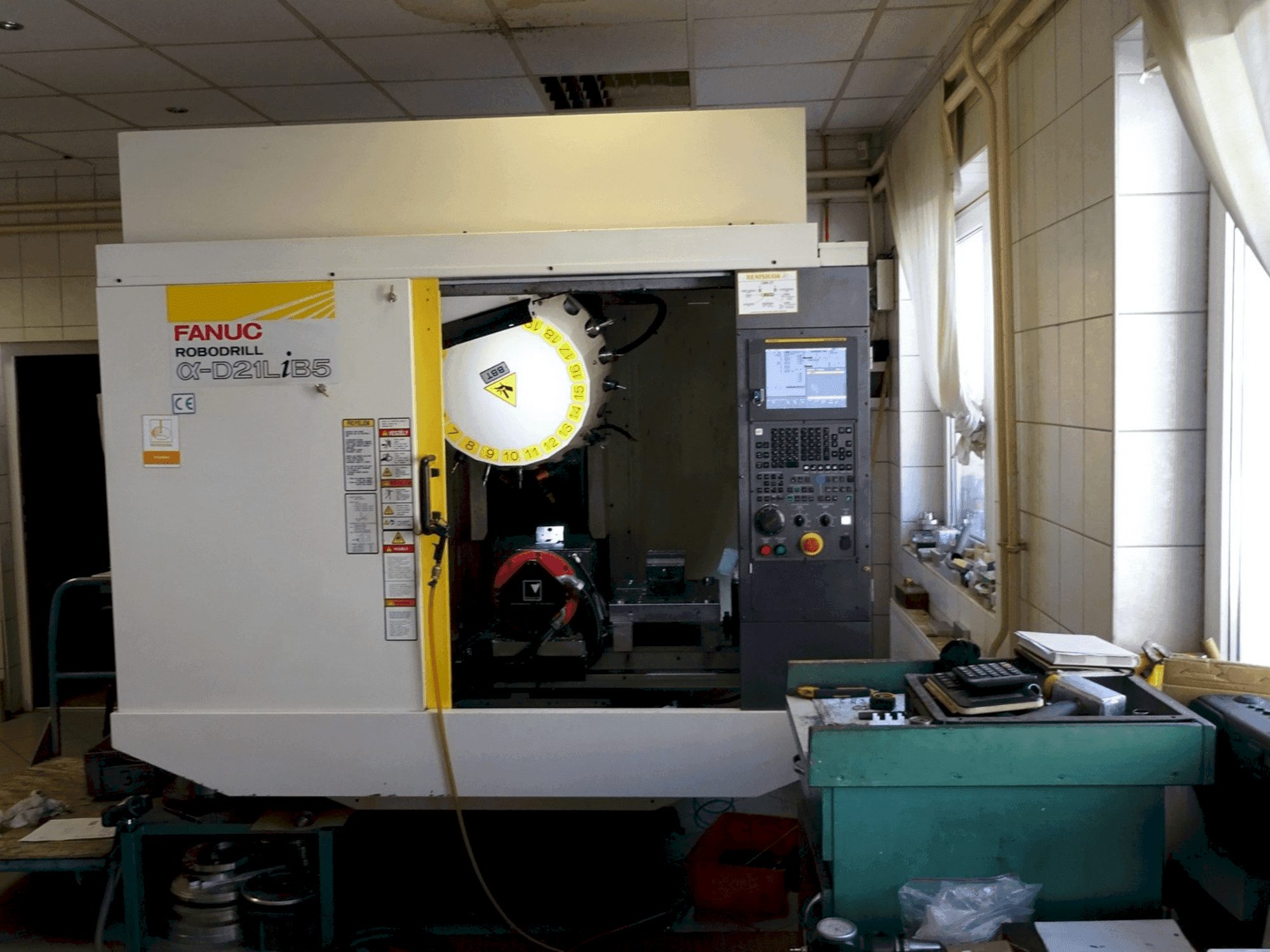

FANUC - Alfa D21LiB5HU-MIL-FAN-2018-00001

• Table size: 850 × 410 mm

• Distance from spindle nose to table (with HC100): 250–580 mm

• Spindle load at 10,000 rpm (1 min): 80 Nm / 14.2 kW

• Spindle load at 10,000 rpm (continuous): 13.6 Nm / 4 kW

• Spindle load at 24,000 rpm (1 min): 35 Nm / 26 kW

• Spindle load at 24,000 rpm (continuous): 7.5 Nm / 5.5 kW

• Programmable cutting feed: 30,000 mm/min

• Acceleration X/Y/Z (100 kg table load, 2 kg tool): 1.4G / 1.0G / 1.6G

• Tool change time (2 kg tool), cut-to-cut: 1.6 s

• Bidirectional positioning accuracy (ISO 230‑2:1988): ≤ 0.006 mm

• Bidirectional positioning repeatability (ISO 230‑2:1997, 2006): ≤ 0.004 mm

• Air consumption: 150 L/min at 0.35–0.55 MPa

• Machine mass / with DDR‑T: 2.1 / 2.3 t

Additional equipment

NOT INCLUDED IN THE PRICE

• Approx. 40 tool holder cones (including original tool holder cones)

• 2 torque tapping heads with cones

• 3 drill chucks with cones

• 1 three‑dimensional probe with cone

• 4–5 milling heads

• Ground precision vise

• 5‑axis ground vise with raised jaws

• Three‑jaw chuck, 160 mm

• Four‑jaw chuck, 160 mm

• Set of parallels

• Sets of collets in different sizes

• Stands, measuring instruments, gauges, etc.
