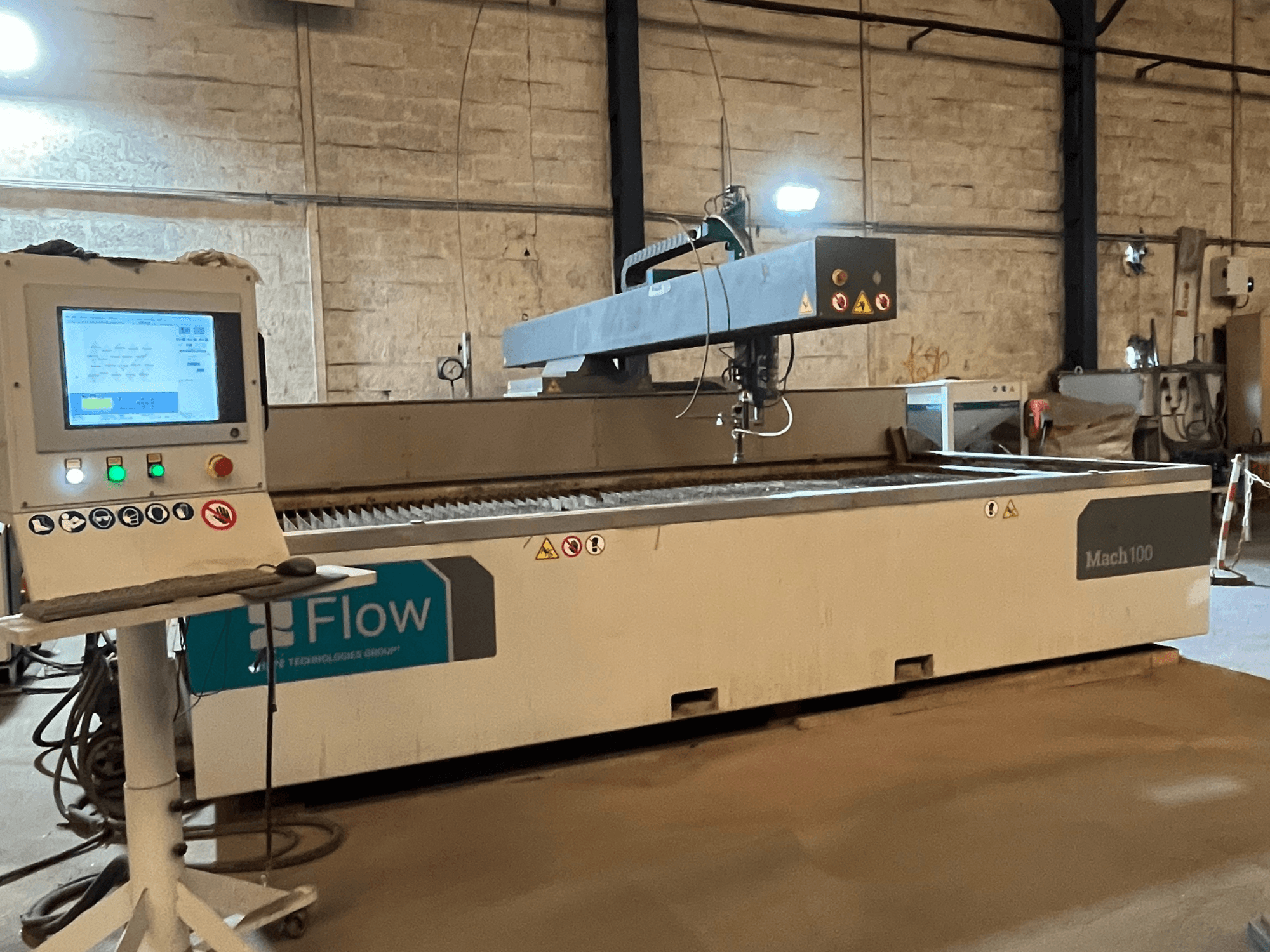

This 3-axis Flow MACH 100-4020 was manufactured in 2021, featuring a cutting area of 4020 × 2020 mm and a cantilever structure. It includes a FlowMaster® license, Flow PASER® 4 cutting head, and a Hyplex Prime 30 pump with a maximum pressure of 4,150 bar. Ideal for abrasive waterjet cutting with less than 800 operating hours. If you are looking to get high-quality cutting capabilities, consider the Flow MACH 100-4020 machine we have for sale. Contact us for more information.
Resumen
- marca: Flow
- año: 2021
- MODELO: MACH 100- 4020
- horas de producción: 900
- tipo de aplicación: Corte
- Ubicación: Francia
- tipo de máquina: Máquina de corte por chorro de agua
Información técnica - Flow MACH 100- 4020
Recorrido
- Número de ejes: 3
Información adicional
Operating hours: less than 800 hours
First commissioning: September 2021
Working area: 4020 × 2020 mm (4 m × 2 m)
Design: Cantilever (gooseneck-type) structure
Axes: 3 axes (X, Y, Z) driven by ball screws
Software & control: FlowMaster license included; FlowMaster programming/control installed on the machine control station and an additional customer PC
Abrasive waterjet cutting system:
Cutting head: Flow PASER 4 with high-pressure ON/OFF valve
High-pressure generation:
Pump: Flow Hyplex Prime 30 ultra-high-pressure pump
Maximum pressure: 4,150 bar
Features: High efficiency with integrated autonomous cooling
Workpiece support tank: Heavy-duty painted steel tank, independent from the machine axes
Additional equipment
High-pressure piping kit (from pump to cutting head)
Laser pointer for positioning (red dot for program alignment)
UltraPierce system (abrasive suction/Venturi) for chip-free piercing of sensitive materials (glass, stone, composites, plexiglass)
EcoFlow cutting sludge extraction system with pneumatic diaphragm pumps and hopper for abrasive recovery into a big bag
Flow abrasive feeding system
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
