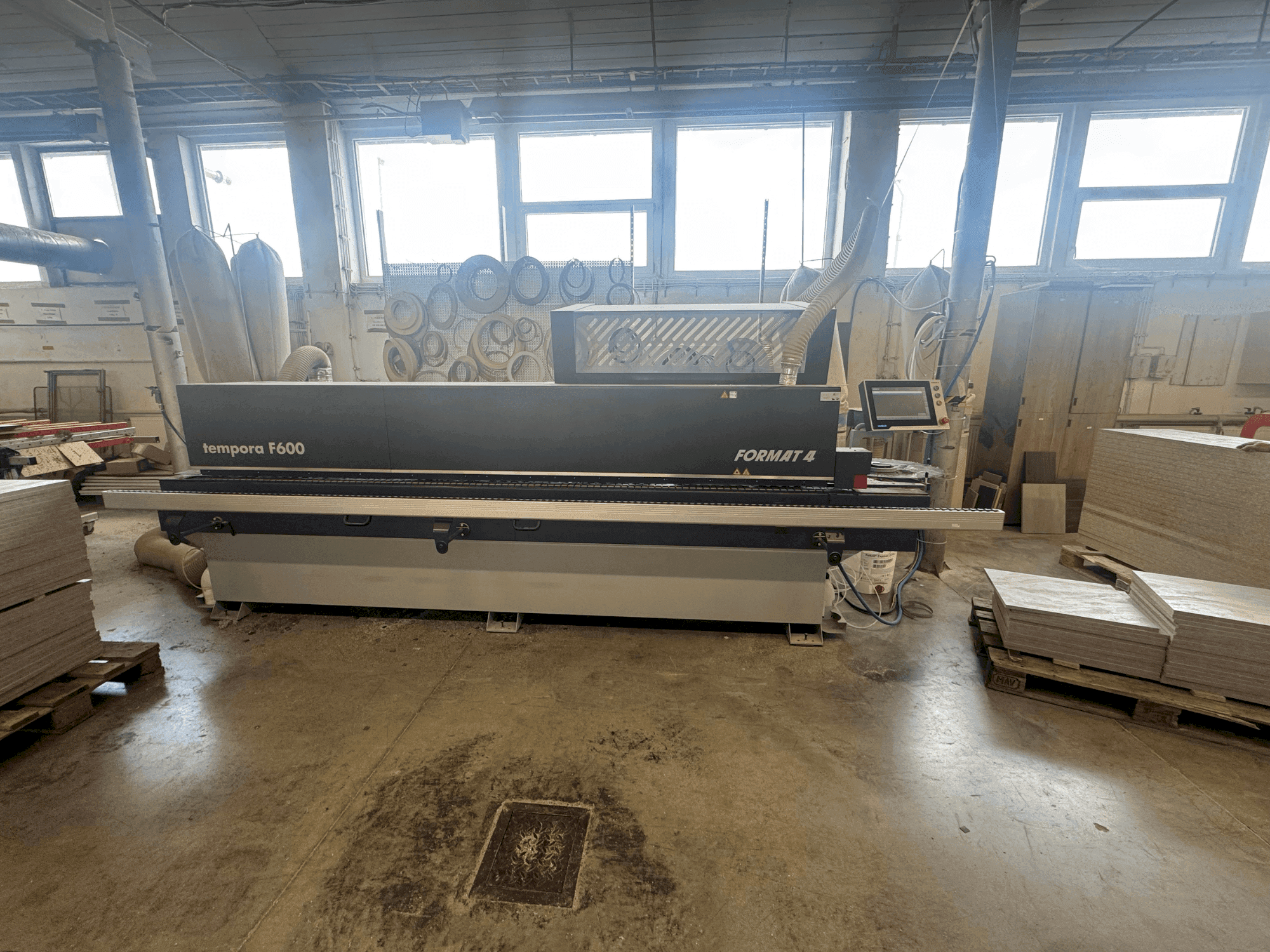

FORMAT4 - TEMPORA 60.06 glueBox x-motionCZ-EDG-FOR-2024-00001

Additional equipment

• Application unit with Teflon coating for 1.5 kg EVA granulate
• Upper and lower polishing unit

Machine Benefits

Technical Machine Benefits

• Positioning workpiece height adjustment: 8-60 mm
• Turntable magazine diameter: 750 mm for edging material 0. 4-3 mm in roll
• Rotary magazine of edging material with ball bearing, diameter of plate: 740 mm
• Gluebox application unit
• Trimming unit with two motors: 0. 35 kw (1 ps), 12000 rpm hw saw blades, z 24, d-100x20x3. 2 mm, pneumatic tilting 0°-10°
• Upper and lower multifunctional milling unit // upper and lower profile sander x-motion plus for machining plastic edges 2 and 3 mm
• Controlled corner unit with 2 motors, motorized adjustment for milling the front profiles of the upper/lower edge for edge thicknesses of 0. 4-3 mm and feed rates up to 10 m/min
• Pre-milling unit with assigned diamond-tipped cutters, speed ​​12000 rpm, 2x 1. 5 kw
• Edge and workpiece thickness measurement using bluetooth technology

Extra Information

Power supply: 3x400V 50/60Hz Chain feed with 2 gears, Feed rates: 10 and 18 m/min Control Unit x-motion Plus control with 15' SmartTouch
