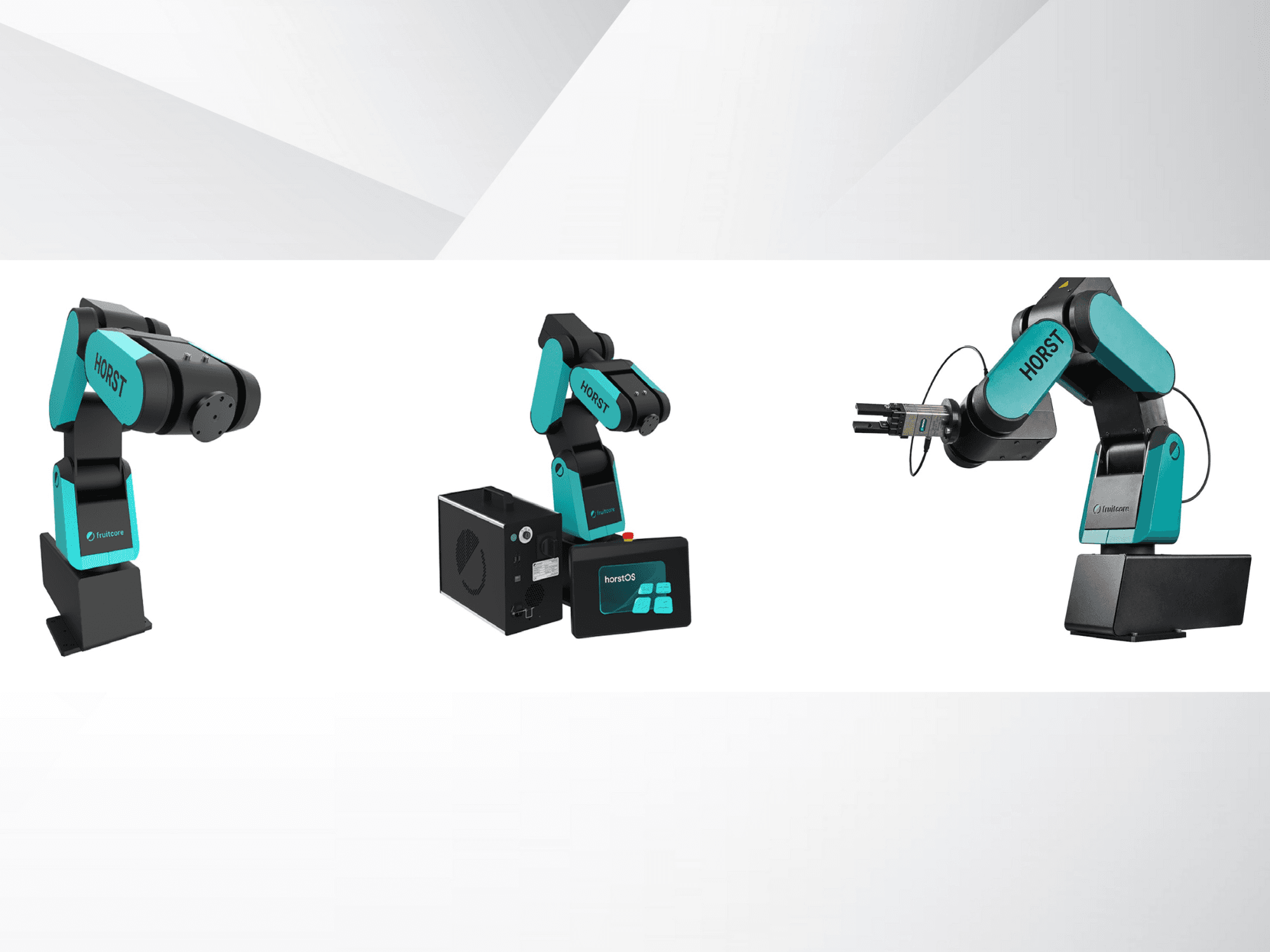

This 6-axis Fruitcore Horst600 Fast robot arm was manufactured in 2019. It features a nominal load capacity of 3 kg, a maximum range of 584 mm, and operates quietly at less than 70 dB(A). The robot arm is designed for a compact installation area of 382 × 200 mm and is protected by an IP54 class. If you are looking to get high-quality automation capabilities, consider the Fruitcore Horst600 Fast machine we have for sale. Contact us for more information.
Resumen
- marca: Fruitcore
- año: 2019
- MODELO: Horst600 Fast
- tipo de aplicación: Robótica
- Ubicación: Alemania
- tipo de máquina: Brazo robótico
Información adicional
Axes: 6
Nominal Load: 3 kg
Max Range: 584 mm
Repeatability: ± 0.05 mm
Protection Class: IP54
Noise Level: < 70 dB(A)
Weight: Approx. 30 kg
Power Supply: 230 VAC, 50–60 Hz
Ambient Temperature: 5 – 40 °C
Installation Area: 382 × 200 mm
Base Drilling Pattern: 200 × 100 mm
Standard Color: RAL 5021 (Aqua blue)
Dimensions: 313 × 174 × 446 mm (H × W × D)
Weight: Approx. 10 kg
Protection Class: IP20
Power: 24 V / 7 A
Power Supply: 24 V / 2.5 A on tool flange
Fast version, which offers significantly higher processing speeds and optimised cycle times compared to the standard version.
The robot was only operated for approx. 1–2 hours for testing purposes and is therefore in almost new condition – technically and visually flawless.
