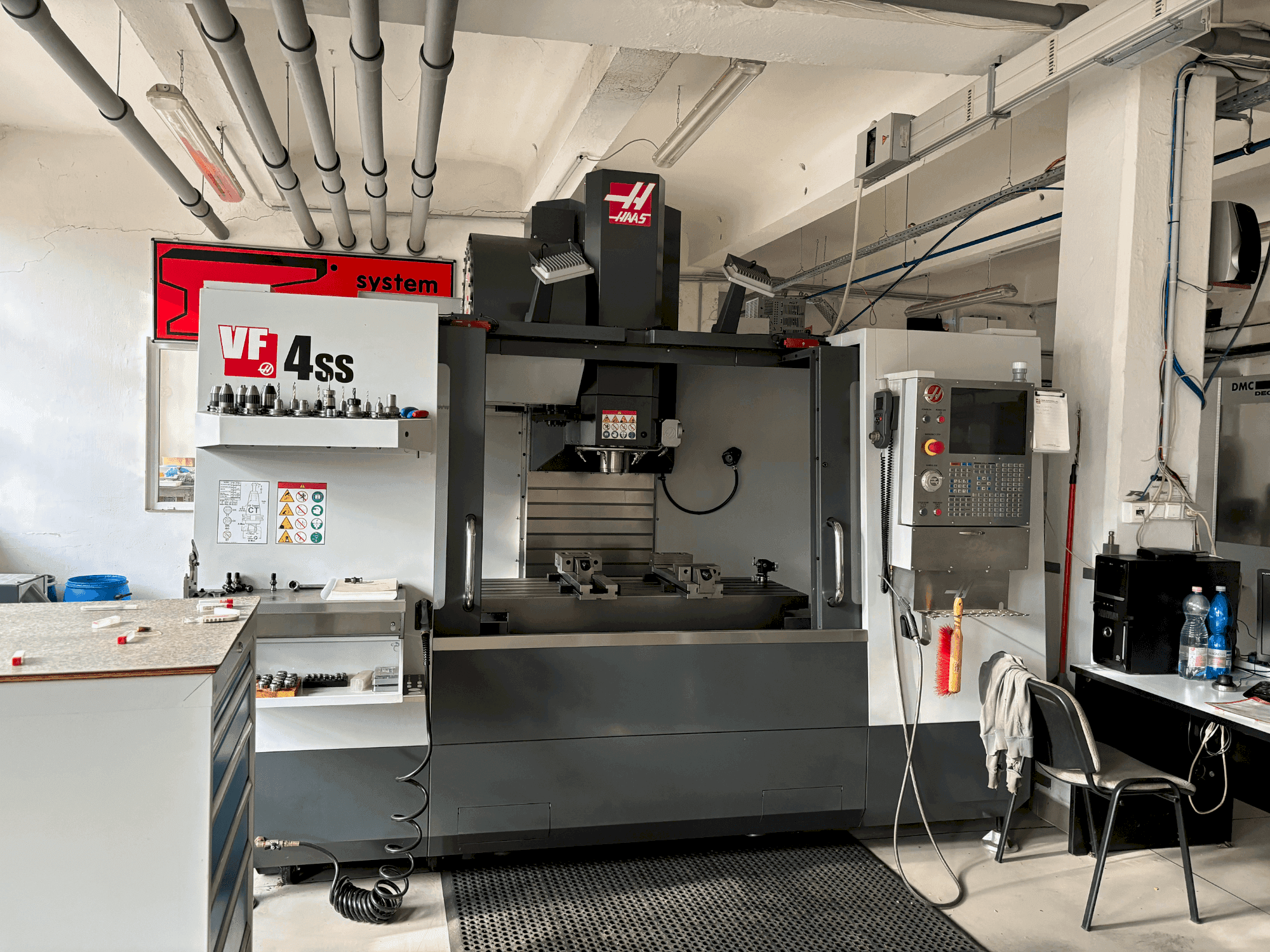

HAAS - HASS VS4SSHU-MIL-HAA-2016-00002

Additional equipment

• Tool changer type: SMTC
• Tool capacity: 30+1
• Max tool diameter (full): 64 mm / Max tool diameter (adjacent empty): 127 mm / Max tool length (from gage line): 330 mm / Max tool weight: 5.4 kg / Tool change time (avg): 1.80 s / Time between tool changes (avg): 2.40 s
• Coolant capacity: 208 liters
• Options: 4th axis preparation, workpiece probe, tool probe, through-spindle coolant, WIFI, handwheel, electric cabinet cooling
• Domestic pallet with transporter: 387 cm x 260 cm x 277 cm / Weight with transporter: 6260 kg

Machine Benefits

Technical Machine Benefits

• Distance from spindle nose to table (max): 742 mm
• Distance from spindle nose to table (min): 107 mm
• Max weight on the table (evenly distributed): 794 kg
• Table: t-slot width: 15. 90 mm to 16. 00 mm / t-slot center distance: 80 mm /number of standard t-slots: 5
• Max torque: 122 nm at 2000 rpm / drive system: inline direct-drive / taper: ct40 | bt40 | hsk-a63 / bearing lubrication: air/oil injection / cooling: liquid cooled
• Input ac voltage (3-phase) - low: 220 vac / full load amps (3-phase) - low: 70 a / input ac voltage (3-phase) - high: 440 vac / full load amps (3-phase) - high: 35 a
