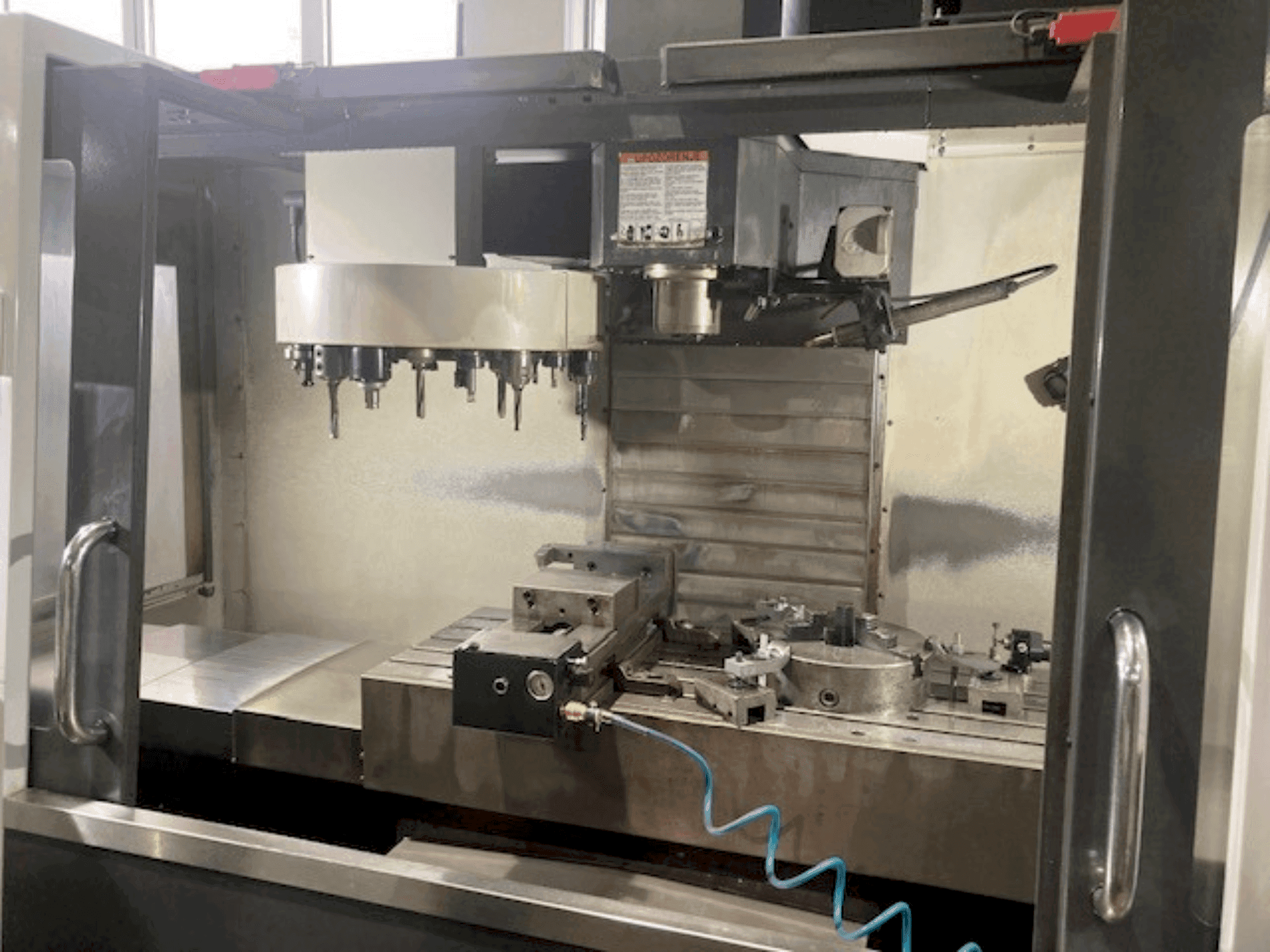

This 3-axis milling machine was manufactured in 2014. Equipped with a powerful 22.4 kW spindle and precise positioning accuracy of 0.005 mm, this HAAS VF-3 offers exceptional performance for machining tasks. Its 20-tool horizontal carousel magazine ensures efficient tool changes, while the 15" LCD color monitor enhances user interface. With a maximum table load of 1588 kg and rapid traverse rates of 25.4 m/min, buy this HAAS VF-3 milling machine for versatile and reliable production capabilities. Contact us for further information.
Resumen
- marca: HAAS
- año: 2014
- MODELO: VF 3
- tipo de aplicación: Fresado
- Ubicación: Serbia
- tipo de máquina: Centro de mecanizado vertical
Información técnica - HAAS VF 3
Dimensiones
- Peso de la máquina: 5670 kg
- Largo de mesa: 1219 mm
- Carga de mesa: 1588 kg
- Ancho de mesa: 457 mm
Especificación Técnica
- Peso máximo de herramienta: 5.4 kg
- Número de herramientas: 15
- Potencia del husillo: 22.4 kW
- Velocidad del husillo: 8100 RPM
Información adicional
Machine Benefits
Qualitative Machine Benefits
- Protective cabin around the machine according to ce standards
- 15" lcd color monitor
- Rs-232 port (pc-cnc communication via serial port)
- Usb port (for transferring and directly running programs from a usb data carrier)
- 1 mb of user memory
- Coolant system with a 208 l reservoir
- Automatic centralized lubrication system
- Rigid tapping - synchronous threading with a tapping attachment without compensation
Technical Machine Benefits
- Maximum torque: 122 nm at 2000 rpm
- Power transmission from motor: in line direct drive (direct motor-spindle, no gearbox)
- Taper and tooling: iso40, din 69871
- Maximum cutting feedrate: 16. 5 m/min
- Traverses: x- 1016 mm, y- 508 mm, z- 635 mm
- Maximum motor load: x and y axes - 11343 n, z axis - 18683 n
- Tool magazine type: horizontal carousel without tool changer arm
- Tool change time: 4. 2
- Positioning: +/- 0,005mm
- Repeatability: 0. 003 mm
Extra Information
- Pneumatic installation (requirement): Emulsion tank capacity: 113 L/min, 6.9 bar - Electrical power supply: 3x400 V, 50 Hz
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
