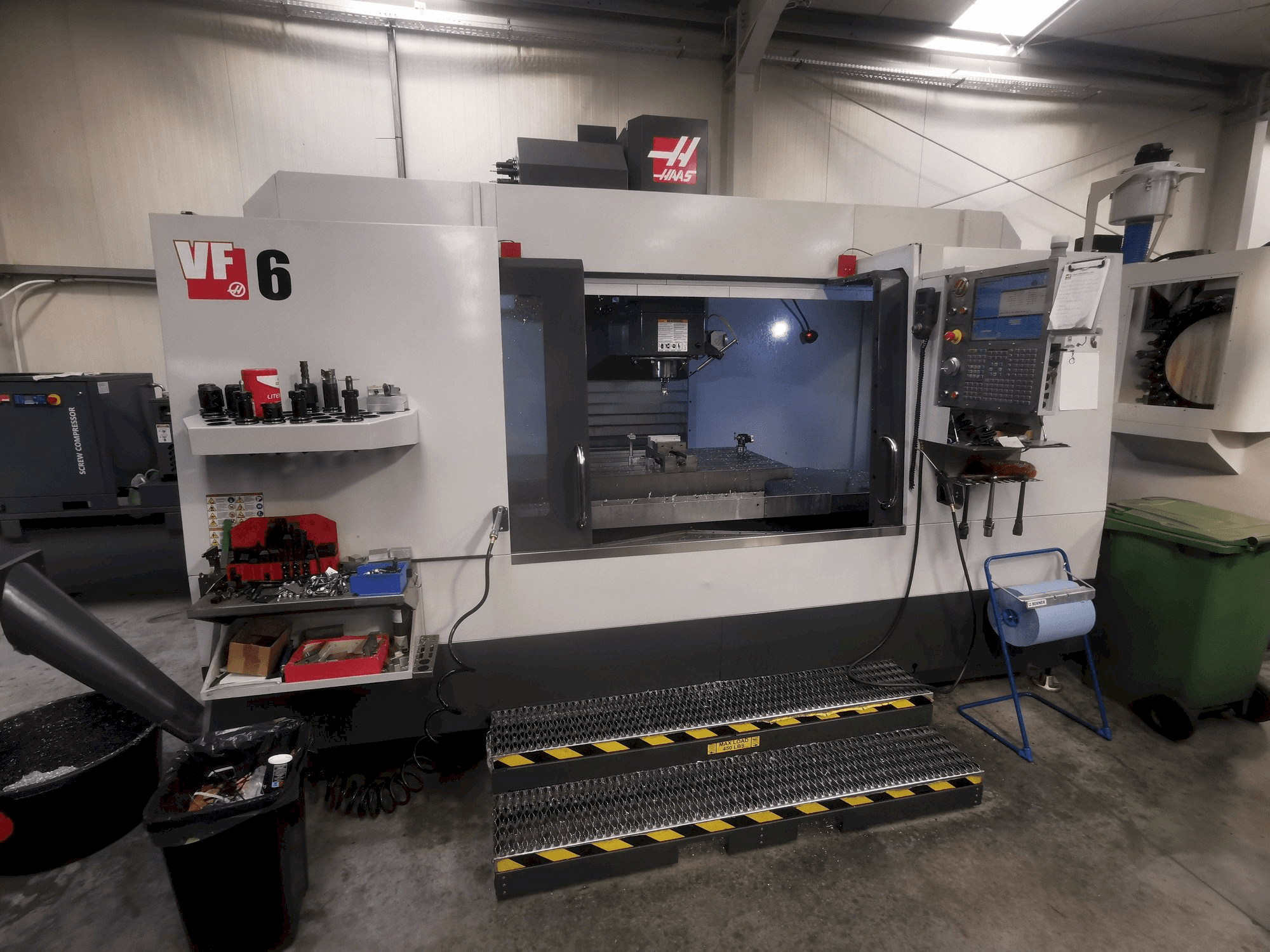

HAAS - VF-6/40PL-MIL-HAA-2015-00003

Additional equipment

• Spindle with 2-speed gearbox increasing speed to 10000 rpm [10K-40T-IN]
• 4-axis drive and wiring for rotary tables [4AXD]
• 5-axis drive and wiring for rotary tables [5AXD]
• Tool probe for measuring tool length and part probe for measuring part length (both probes are used for referencing on the table) [WIPS-R]
• Dual-axis tilting rotary table 210 mm [TR210]
• Tailstock 6 [HTS6]
• 8" three-jaw chuck by Haas [LC8-B]
• 750 MB extended memory
• Technology package

Machine Benefits

Qualitative Machine Benefits

• Automatic screw conveyor chip removal
• Programmable coolant nozzle
• Color remote control panel
• Power failure detection module
• 1 gb program memory
• 15" color lcd monitor
• Usb port
• Memory lock switch
• Rigid tapping function
• 360 l coolant system

Technical Machine Benefits

• Power on time: 6545 h
• Cycle time: 1793 h
• Tool magazine type: smtc
• Number of tools in magazine: 24+1
• Average tool change time: 2. 8 s
• Maximum tool diameter with empty adjacent pocket and full pocket: 152 mm, 76 mm
• Power supply: machine: 3 x 400 v, 35 a, 20 kw
• Cnc control: 240 v
• Pneumatic supply: capacity 113 l/min, pressure 6. 9 bar
• Coolant tank capacity: 360 l

Extra Information

Machine still under power
