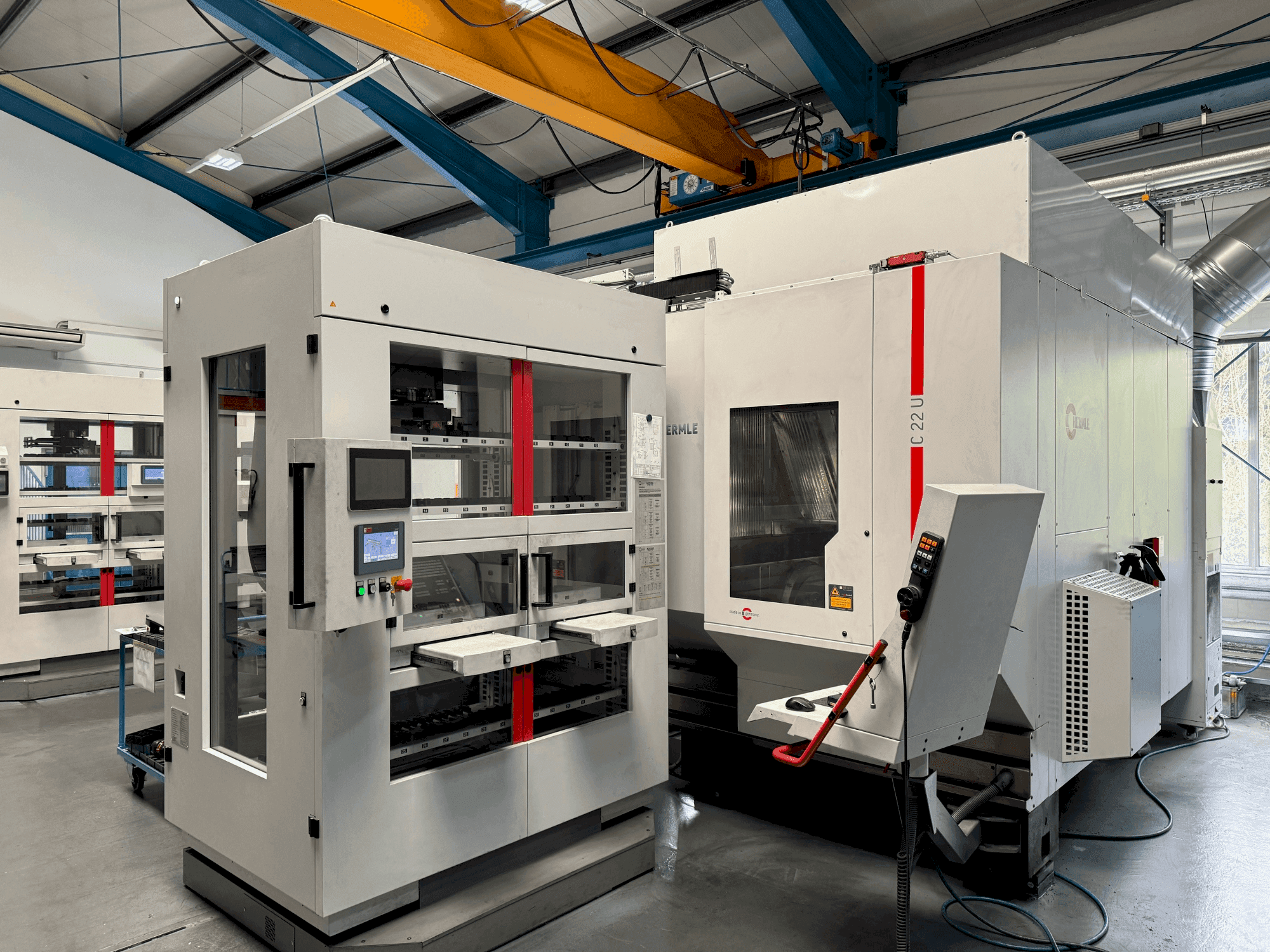

HERMLE - C22U with handling system IH30DE-MIL-HER-2017-00003

Additional equipment

• Swivel rotary table STP Ø 320
• Single-sided drive in the A-axis Ø 320 // Spindle 42.000 1/min HSK E40
• 6-way rotating union
• Elimination of table top Ø 320
• KinematicOpt - Hardware
• IH30 handling system: max. handling weight 30kg magazine capacity 50 pallets

Machine Benefits

Qualitative Machine Benefits

• Emulsion mist extraction incl. Secondary filter
• Automatic cabin door // automatic cab roof
• Heidenhain electrical heat compensation // electric manual control module heidenhain
• Measuring probe heidenhain
• Blum tool breakage/ measurement a1
• Cover plate for machining with amms / mod. Scraper
• Handling interface ih30/60 tnc640hacs
• Chuck 3-r powergrip on system table
• Pneu. Release retacking blow off present 1x 1:2
• Preparation of external graphite suction left

Technical Machine Benefits

• Outer mms
• Blow-off device // blow air through spindle center
• Sealing air for scales
• Control software: kuhnke plc
• Max. Handling weight: 30 kg
• Magazine capacity: 50 pallets
• Infeed and outfeed station: 2-fold
• Standard gripper: 30 kg based on a fork gripper itp 178x135 or itp 192x98 with pneumatic holding pins
• Control software: kuhnke plc // control panel for hacs on the ih30
• Taper size: hsk e40

Extra Information

IH30 Shelf ITS50 Pallets and ITS78: Parallel Gripper: Including specific gripper finger set. Max. Transport Weight: 20 kg. Exchangeable Gripper: 3R gripper finger set. We have a second unit of the the identical model from 2015 available. Has not yet been converted to vacuum. Clamping system included. Keller graphite extraction system included. 20 HSK40 shrink-fit holders from Diebold and/or Haimer included. THE MACHINE PROCESSES synthetic materials. External suction unit.
