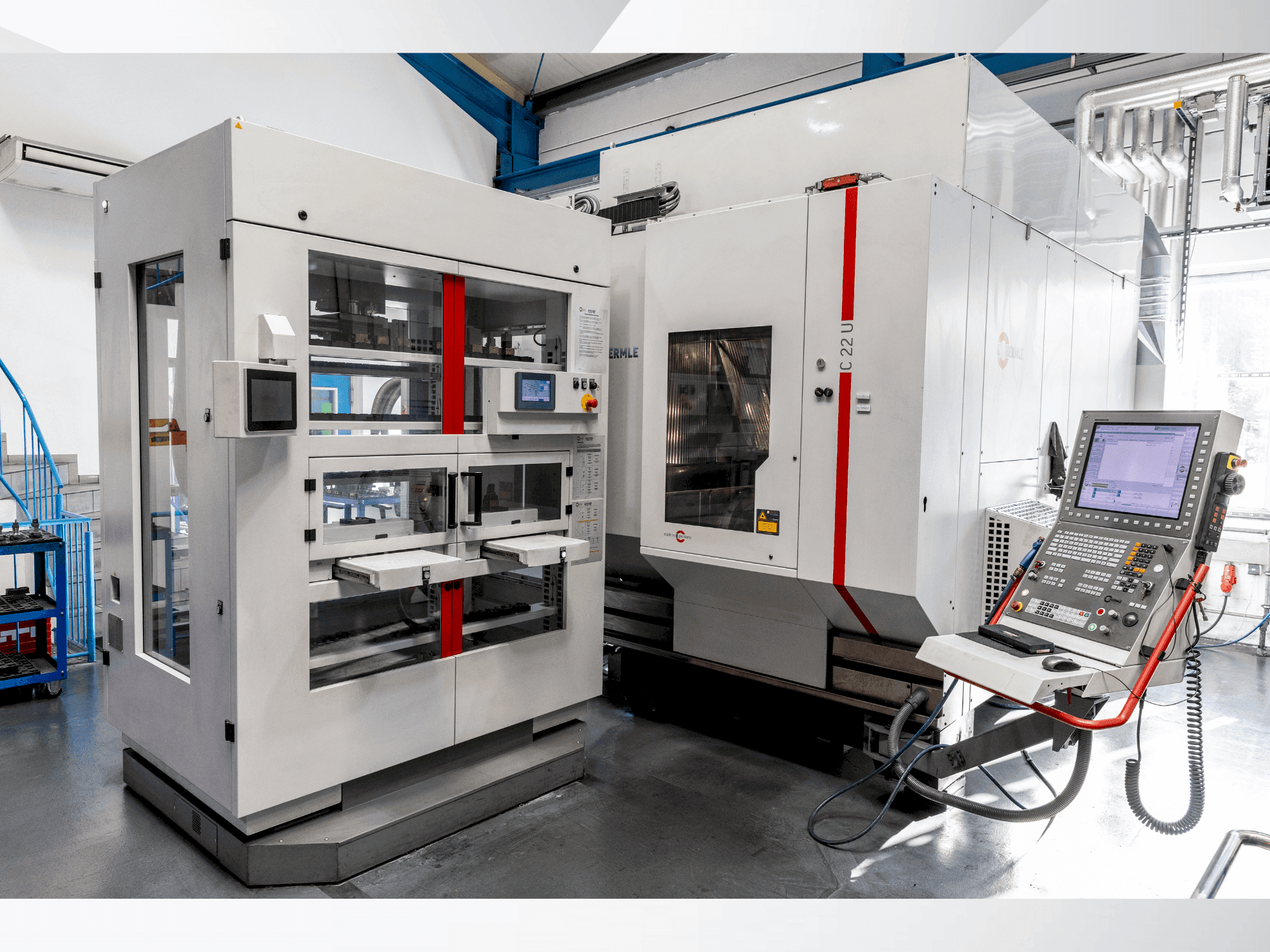

HERMLE - C22U with handling system IH30DE-MIL-HER-2015-00001

Additional equipment

• It comes with Handling system IH30
• Rigid clamping table
• Coolant unit standard
• Chip chute left
• Polycarb safety disks
• 6-fold rotary feed-through
• Outer MMS
• BLUM tool breakage/measurement A1
• Chuck 3-R PowerGrip on system table
• Incl. adapter plate for system table

Machine Benefits

Qualitative Machine Benefits

• Standard cabin
• Kinematicopt hardware
• Blow-off device
• Pneumatic extension 1:2
• External suction unit
• Control panel for hacs on the ih30
• Parallel gripper incl. Specific gripper finger set
• Exchangeable gripper 3r gripper finger set
• High-quality components such as heidenhain control and blum tool systems ensure reliability and precision, advanced safety features like polycarb safety disks and automatic cabin doors enhance operational safety.
• Clamping system included and keller graphite extraction system included

Technical Machine Benefits

• 55 tool positions sk40
• Swivel rotary table stp diameter 320mm //one-sided drive of the a-axis diameter 320
• Table top diameter 320mm
• Blow air through the center of the spindle
• Sealing air for scales
• Emulsion mist extraction incl. Secondary filter
• Automatic cabin door // automatic cabin roof
• Electric heat compensation heidenhain // electric manual control module heidenhain
• Ih30 shelf its50 pallets and its78
• Dynamic efficiency and dynamic precision for enhanced performance, high spindle speed for precision machining, comprehensive handling and tooling options integrated into the system.

Extra Information

The machine includes a KUHNKE PLC software for enhanced control. Features a magazine capacity of 50 pallets and a standard gripper based on a fork gripper with pneumatic holding pins. THE MACHINE PROCESSES synthetic materials. New spindle and bearings 2018 (Hermle) Coolant tray included Kinematic OPT included. With ball on pallet.
