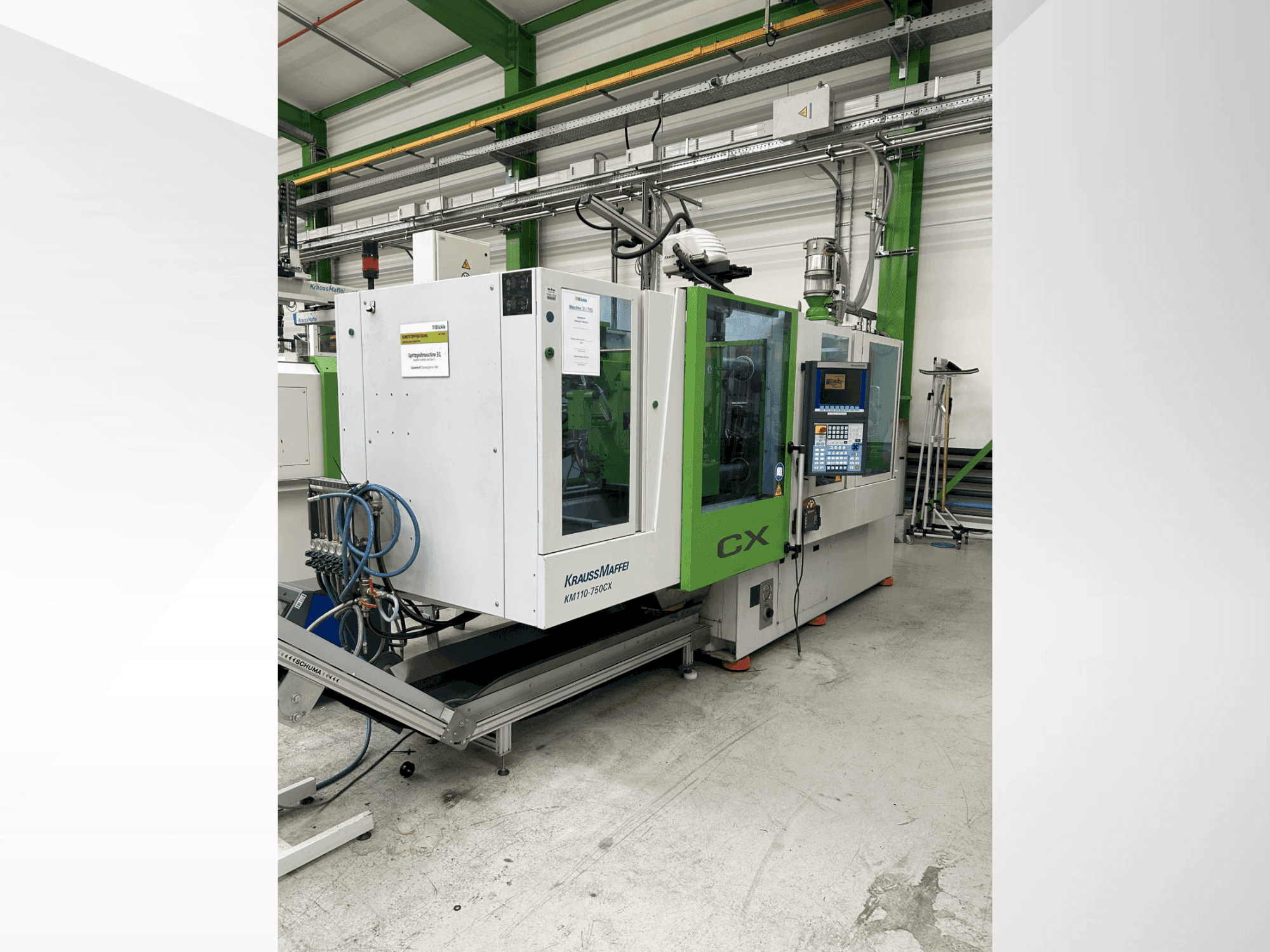

Krauss Maffei - 110-750 CXDE-INJ-KRA-2007-00005

Machine Benefits

Technical Machine Benefits

• Unit 1 operating hours: 63972/ unit 2 operating hours: 69878
• Clamping force: 110t
• Ejection: wittmann picker
• The maximum injection speed for this machine is 90 mm/s.
• One is tested until 2027, the other until 2030. Regular maintenance was carried out
• Machines were always lubricated according to the maintenance schedule and replaced the filters (oil, air, water). The hydraulic oil was also cleaned approx. 1-2 times a year with an ultra-fine filter pump.

Extra Information

Removal: Wittmann Picker/ Clamping force in to: 110/ Shot weight in g (PS): 289/ Metering volume in cm3: 318/ Screw diameter in mm: 45/ Centering ring: 160/ Max. injection pressure (bar): 2336/ max. barrel temperature (C): 375/ min. Mould mounting height (mm): 250/ Mould opening stroke max. (mm): 600/ Opening width (mm): 850/ Clear width (mm): 470x470/ Ejector stroke (mm): 150/ unit 1: Operating hours: 78332/ unit 2: Operating hours: 80625
