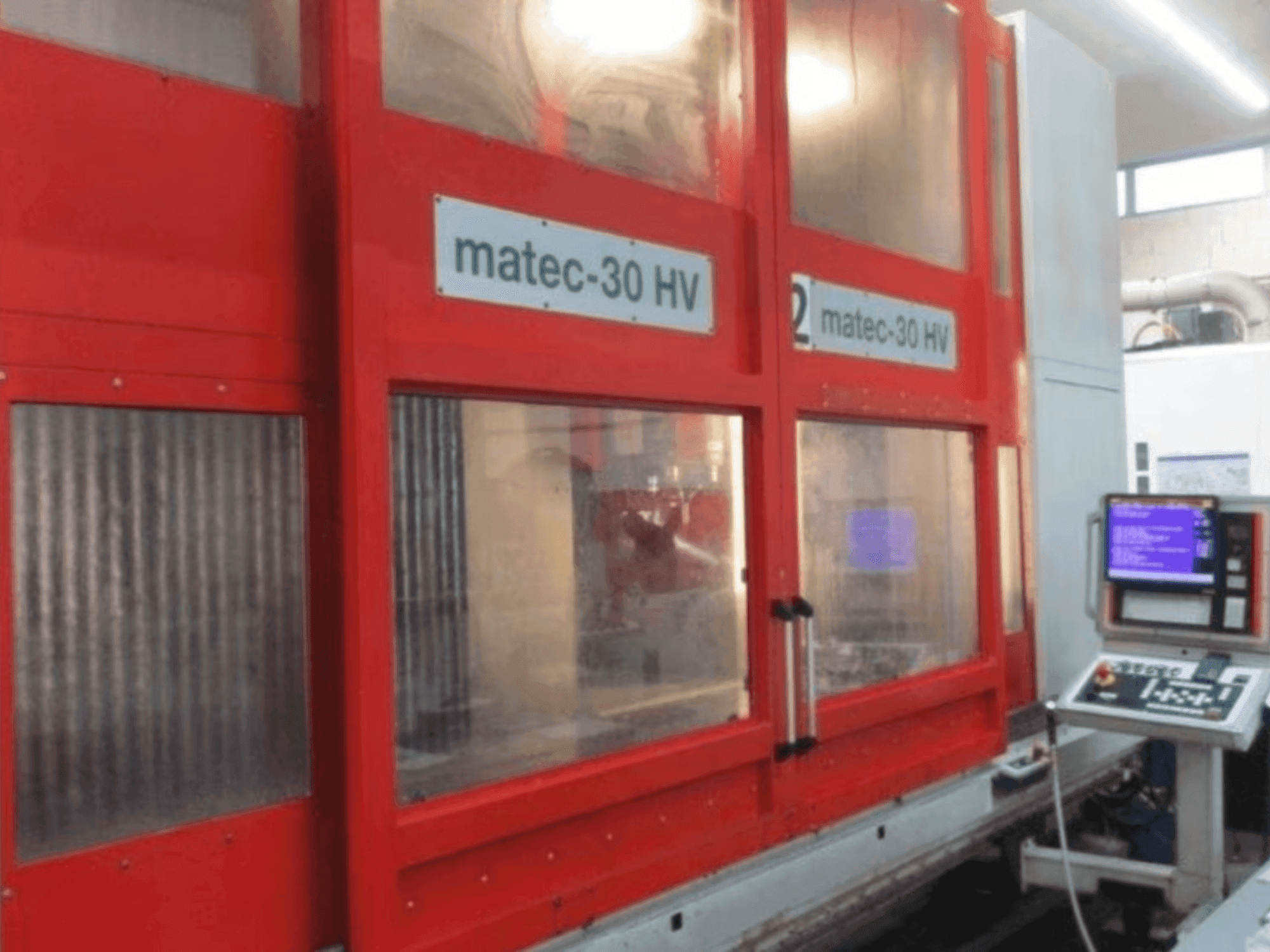

This 5-axis Matec 30 HV CNC milling machine was manufactured in 2000. It features a milling spindle with a speed range of 20-9,000 rpm and a drilling capacity in St 60 of 60mm. The machine boasts large travel distances with X-axis at 4000 mm, Y-axis at 825 mm, and Z-axis at 1100 mm. It supports a maximum table load of 4000 kg. If you are looking to get high-quality milling capabilities consider the Matec 30 HV machine we have for sale. Contact us for more information.
Resumen
- marca: Matec
- año: 2000
- MODELO: 30 HV CNC
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
Información técnica - Matec 30 HV CNC
Dimensiones
- Peso de la máquina: 19000 kg
- Carga de mesa: 4000 kg
Recorrido
- Recorrido eje X: 4000 mm
- Recorrido eje Y: 825 mm
- Recorrido eje Z: 1100 mm
Especificación Técnica
- Refrigeración a través del husillo: Sí
Información adicional
Additional equipment
- Pneumatically opening doors
- Partition wall for two-field machining
- Ventilated measuring systems
- Optional: High-pressure pump (40 bar) and NC rotary table
Machine Benefits
Qualitative Machine Benefits
- 2024: rear covers on x-axis replaced
- 2023: glass scale on y-axis replaced
Technical Machine Benefits
- Rapid traverse speed: 30 m/min
- Feed speed: 30000 mm/min
- Max. Workpiece length for double-sided end machining: x = 3500 mm - 2 * max. Tool length
- Clamping surface: x: 4500 mm on the clamping plate + rotary table, y: 850 mm; 7 grooves, spacing 125 mm
- Hsk63 form a according to din 69893 with internal cooling
- 48 magazine slots
- Ikz: 20 bar
Extra Information
The machine is currently still in production and can be inspected during production if interested. Sold as seen, without guarantee and without warranty.ç Control Unit Num 1060 control Bosch axis controller Heidenhain measuring system
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
