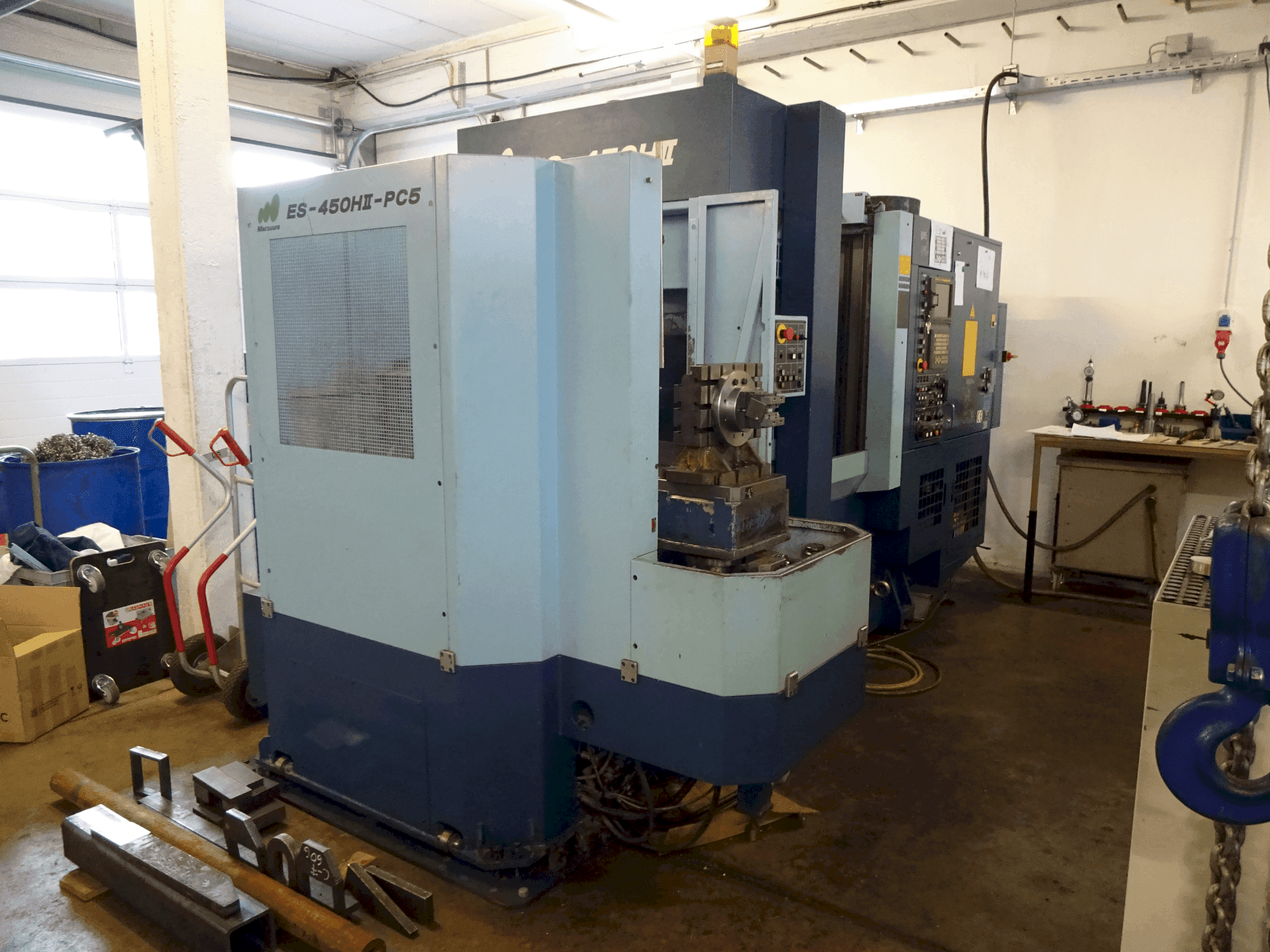

This 4-axis Matsuura ES-450HII PC5 was manufactured in 1999. It's a horizontal machining centre designed for precision and efficiency. If you are looking to get high-quality milling capabilities, consider the Matsuura ES-450HII PC5 machine we have for sale. Contact us for more information.
Resumen
- marca: Matsuura
- año: 1999
- MODELO: ES-450HII PC5
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado horizontal
Información técnica - Matsuura ES-450HII PC5
Dimensiones
- Profundidad de la máquina: 3600 mm
- Altura de la máquina: 2470 mm
- Peso de la máquina: 5700 kg
Recorrido
- Número de ejes: 4
Especificación Técnica
- Peso máximo de herramienta: 8 kg
- Velocidad del husillo: 15000 RPM
Información adicional
Machine Benefits
Technical Machine Benefits
- Table surface height (from the floor): 1000mm
Extra Information
Traverses: X axis (column right/left): 450mm (250 on the left, 200 on the right) Y axis (spindle head up/down): 400mm Z axis (pallet back/forth): 400mm (+250 when pallet is changed) Workpiece Distance between pallet top surface to spindle nose: 80~480mm Distance between pallet centre to column slideways: 120~520mm Pallet: Working area: 300 x 300mm Maximum load weight: 200kg Surface tapped hole (size x quantity): M12 x P1.75 x 32mm Table Table indexing angle: 1 degree Table indexing speed: 1.5 sec/90°, 1.9 sec/180° Coupling clamp force: 27.3kN Spindle Spindle bearing ID: Ø70mm Maximum spindle torque: 105/1000 minˉ1 Nm Tool clamp force: 8.2kN Spindle orientation: Standard (electric) Spindle air blow: Standard Feed Rate Cutting federate (X/Y/Z): 1~15000mm/min Manual continuous (jog) federate: 0~4000mm/min Least output increment: 0.001mm Automatic Tool Changer Pull stud type: JIS B 6339 pull stud 40P Tool storage: 30 pcs Method of tool selection: Addresses code & random selection bi-directional magazine rotation. (T4) Tool change time (tool to tool): 1.5 sec (less than 6kg), 2.0 sec (more than 6kg) Tool change time (chip to chip): 3.2 sec Tool pot pitch: 95.25mm Automatic Pallet Changer Number of pallets: 2 Pallet change system: Turn-table method Pallet change time: 8.5 sec Pallet change time (pallet to pallet): 9.0 sec Pallet clamp force: 41.5kN Pallet weight/piece: 40kg Pallet size: 300 x 300mm Maximum load weight: 200kg Motors Spindle motor: Alpha T8/1500 AC 11.0/7.5kW (30min./continuous rate) Feed motors: X Axis: model α 22/3000 AC 4.4kW Y Axis: model α 22/2000 with brake AC 4.4kW Z Axis: model α 22/3000 AC 4.4kW Hydraulic motor: AC 1.5kW Lubrication motor: AC 0.02kW Coolant motor: AC 0.75kW Required Power Capacity Total electric capacity: 34KVA Air source: 0.54~0.93MPa Air capacity: 400 L/min Hydraulic tank capacity: 15L Lubrication tank capacity: 2.7L Coolant tank capacity: 200L Standard Attachments Tool enclosure guard (with top cover) Chip flow Synchronized tap Spindle oil cooler Spindle overload protection Feed axis interface prevention device Work light (fluorescent light) M code counter (9 kinds) Through spindle coolant Spindle probe interface (no probe) Filtermist Swarf conveyor Manuals
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
