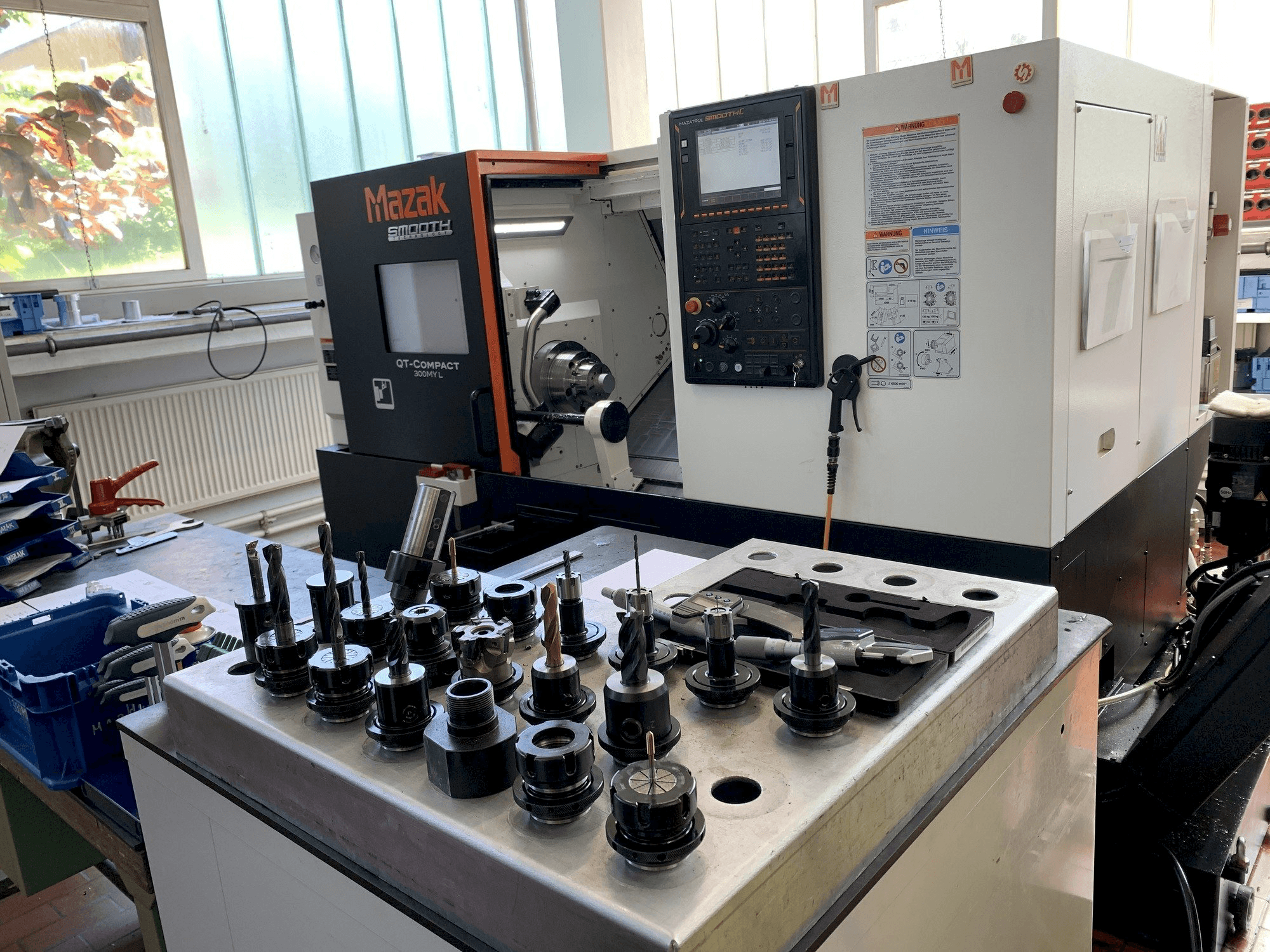

Mazak - QTC 300MY L500DE-TUR-MAZ-2018-00001

Additional equipment

• B688EL110 Transformer for the European market
• B688M0575 Use of linear systems with carriages from leading manufacturers
• B688N0839 SD MEMORY l/F(1P) + USB MEMORY l/F(1P) 1 x USB - Memory Interface (1 SIot)
• B688SD120 1 set of adjustment tools
• Small tool box with - spanner - Screwdriver - l Allen key
• B688SD130 Machine feet / levelling shoes
• B688S1039 C-axis input accuracy 0.0001
• B688TT014 Integrated travelling quill MK 4 (1000)
• B688TT640 Tailstock with fixed quill MK5 (500U)
• B688YI 030 Y-axis control

Machine Benefits

Qualitative Machine Benefits

• Tool cross-section (external turning tool) 565 mm2
• Boring bar diameter (max. ) 40 mm
• Tool size drill 20 mm
• Tool size milling cutter 20 mm
• Switching time 1 turret station 0. 23 s
• Switching time full turret rotation 0. 63 s
• Milling spindle power (continuous operation) 3. 7 kw
• Milling spindle power (40% ed) 5. 5 kw
• Max. Milling spindle speed milling spindle speed 4500 min-1
• Max. Milling spindle torque 47. 0

Technical Machine Benefits

• Chuck diameter main spindle 10''
• Max. Swing diameter 695 mm
• Standard machining diameter 255 mm
• Max. Machining diameter 340 mm
• Max. Bar diameter main spindle 80 mm
• Distance between spindle end and turret 59. 5 - 664. 5 mm
• Max. Workpiece weight chuck machining main spindle 450 kg
• Spindle nose a2-8
• Max. Torque 356. 0 nm
• Travel range tailstock body 565 mm

Extra Information

Set of manuals in electronic form on OD
