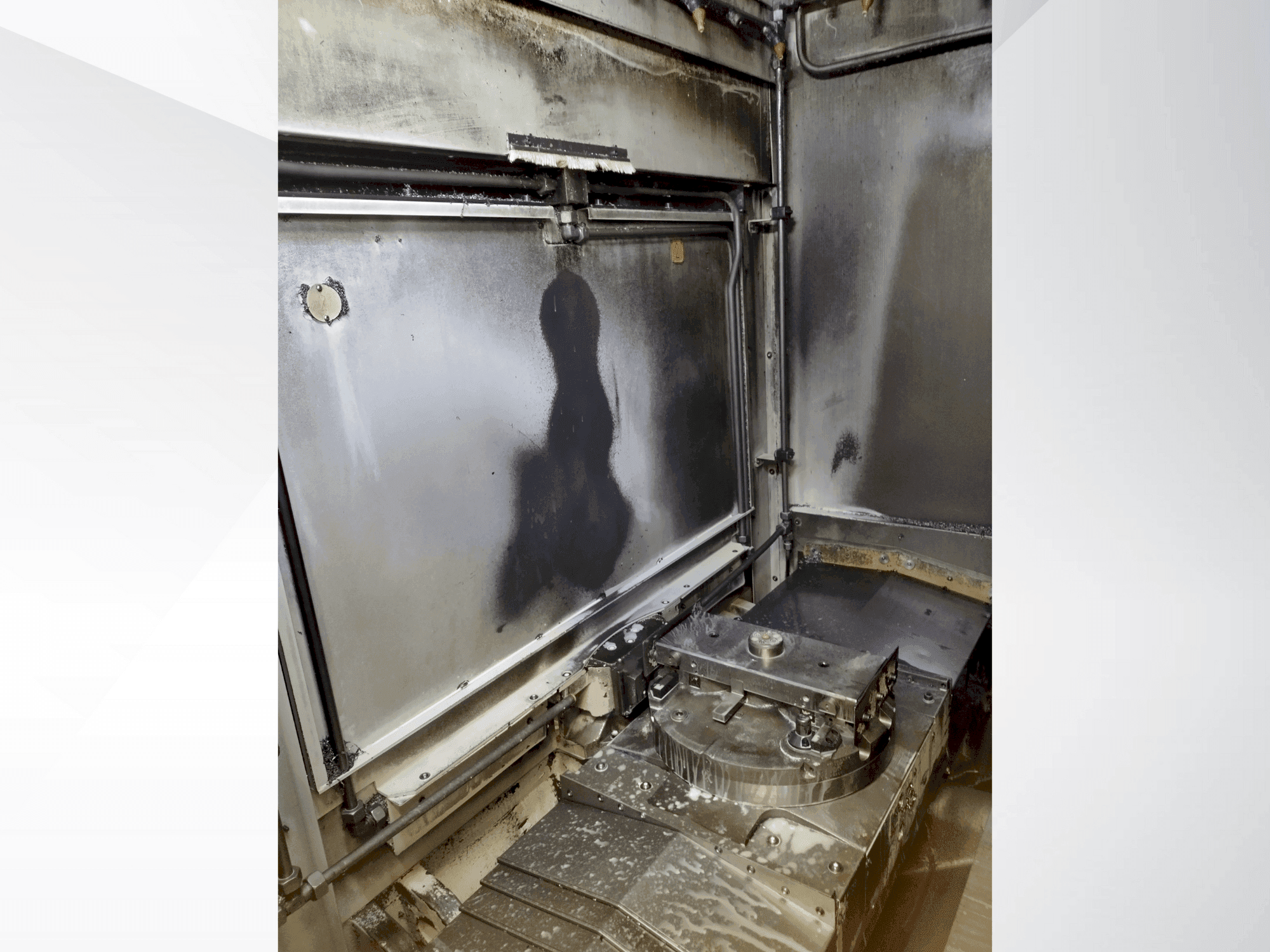

This 3-axis HELLER MCPH150 UNIPRO 90 horizontal machining centre was manufactured in 1997. It features a robust spindle motor with 8,000 RPM and 30KW power, a rotary indexing table of 400mm, and a high-capacity coolant tank of 600 liters. The machine includes a pallet changer, enhancing productivity with its large travels and powerful performance. Ideal for complex machining tasks, the HELLER MCPH150 UNIPRO 90 machine we have for sale. Contact us for further details regarding this horizontal machining centre.
Resumen
- marca: HELLER
- año: 1997
- MODELO: MCPH150 UNIPRO 90
- horas de producción: 65317
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado horizontal
Información técnica - HELLER MCPH150 UNIPRO 90
Dimensiones
- Peso de la máquina: 12700 kg
Recorrido
- Recorrido eje X: 630 mm
- Recorrido eje Y: 520 mm
- Recorrido eje Z: 560 mm
Especificación Técnica
- Potencia del husillo: 30 kW
- Velocidad del husillo: 8000 RPM
- Refrigeración a través del husillo: Sí
Información adicional
Additional equipment
- Air Supply
- Air conditioner for control cabinet
- Many spare parts on reserve
Machine Benefits
Qualitative Machine Benefits
- Additional filters installed on the knoll system
- Modified central lubrication – freely programmable
- Water pipe and oil pipes renewed
- Screens, gearbox and telescopic sheets renewed
- Modified central lubrication – freely programmable
- Database/memory in the controller renewed
- Additional filters installed on the knoll system
- Rotary union for ikz renewed
- Water pipe and oil pipes renewed
Technical Machine Benefits
- Cooling pressure: 50 bar
- Pallet size: 400*500
- Coolant tank capacity: 600 litres
- Conveying speed: 1. 5 m/min
- Ejection height: 600 mm
- Max. Torque: 2000 1/min
- Spindle diameter in front bearing: 70 mm
- Rotary indexing table: 400 mm
- Max. Tilting torque: 8000 nm
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
