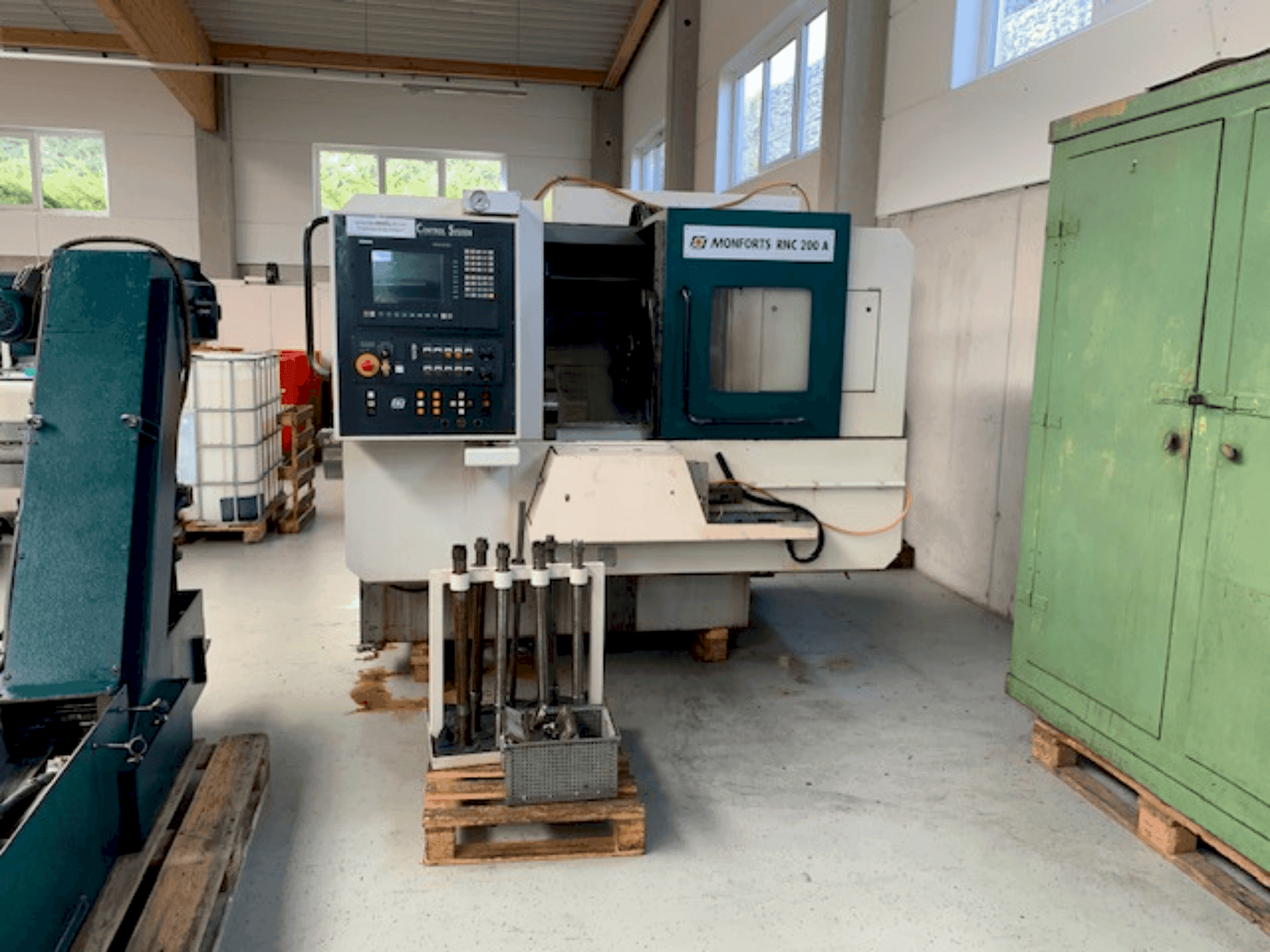

This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.
Resumen
- marca: Monforts
- año: 2000
- MODELO: RNC 200A
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
Información técnica - Monforts RNC 200A
Dimensiones
- Profundidad de la máquina: 2270 mm
- Altura de la máquina: 1750 mm
- Peso de la máquina: 3500 kg
Recorrido
- Número de ejes: 2
- Recorrido eje X: 175 mm
- Recorrido eje Z: 300 mm
Especificación Técnica
- Velocidad del husillo: 6000 RPM
Información adicional
Additional equipment
- Tailstock with quill diameter 70mm and max quill force 8.8 kN
- The following tools are still available: Hainbuch Spanntop without collets, without tools, Chip conveyor, Spindle insert tubes for the following material diameters: 16/21/25/27/30/34/36 and 41.
Machine Benefits
Qualitative Machine Benefits
- Robust construction and reliable performance for high-quality turning operations.
Technical Machine Benefits
- Turning length: 250mm
- Coolant volume: 130 liters
- High-speed and precision turning capabilities with advanced spindle and rapid traverse features.
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
