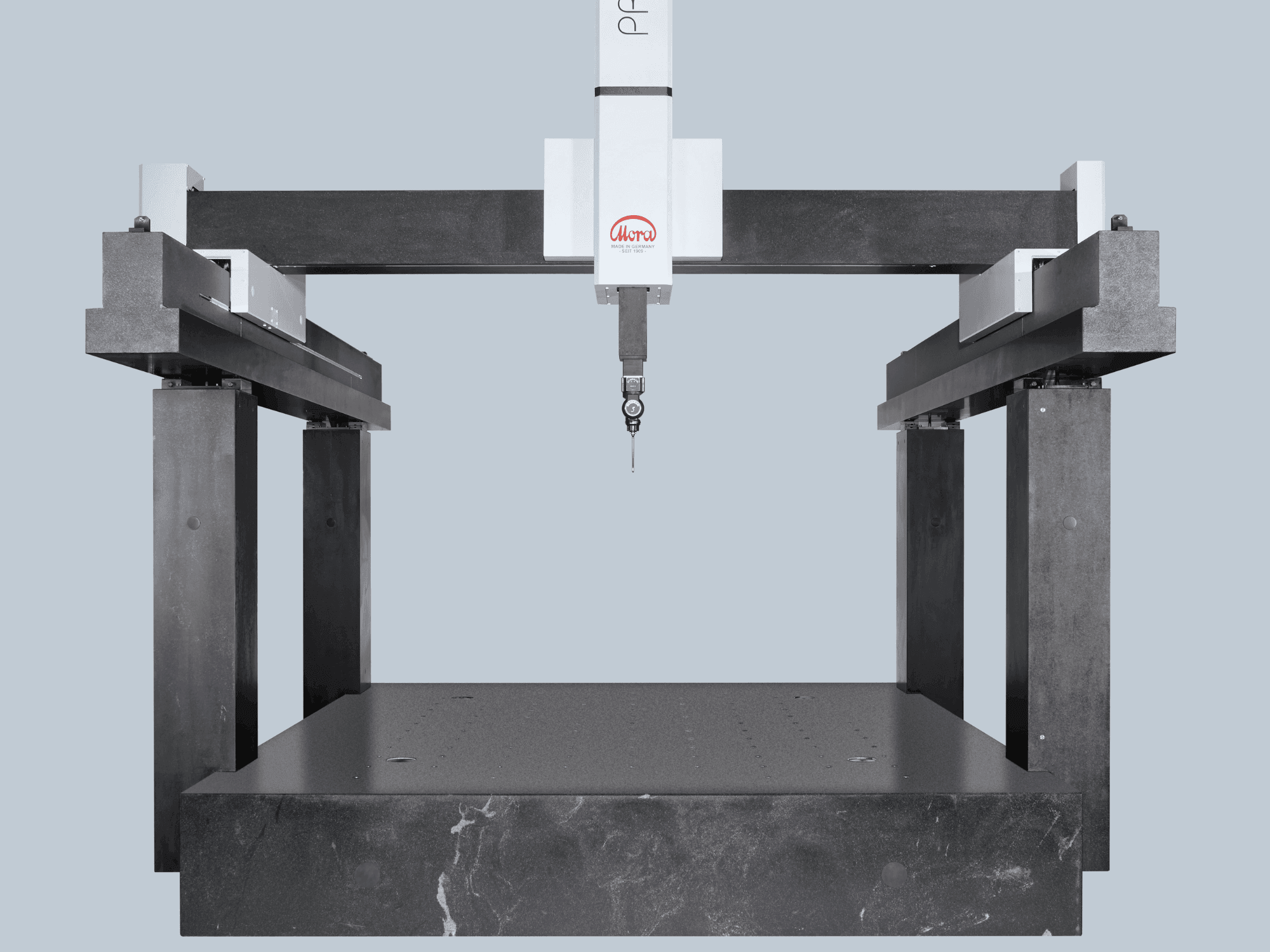

Mora - Primus 152012DE-MEA-MOR-2019-00003

Additional equipment

• 3-axis CNC controller, Pantec SP25/SP600 interface, EAGLE PAD joystick (6.5 m)
• Renishaw PH10M (720 positions, 7.5°) + PHC10-2 controller
• Renishaw SP25M full kit: SM25-1/-2/-3 (with SH25-1/-2/-3), TM25-20 adapter; extra SM25-4 (with SH25-4) & SM25-5 (with SH25-5)
• Extensive M2/M3 stylus kits (Ø 0.3–30 mm, extensions), M2↔M3 / M3↔M2 adapters
• FCR25 + FCR25-TC (3+3-port, temperature-controlled) with MRS1000/MRS600 rail system
• Ø 30 mm reference sphere
• INCA3D Premium (DCC): Shape Deviation, Path Wizard, Simulation, Statistics, Excel reports, graphical programming, CAD import IGES/STEP, Master Scan Functions + Assist SP25, FCR25 support, USB dongles (HASPHL)
• Industrial PC (e.g., Intel i5, 8 GB, 256 GB SSD, 22″ monitor, Windows 10) + color laser printer

Machine Benefits

Qualitative Machine Benefits

• Condition: new, factory-sealed, immediate availability

Technical Machine Benefits

• Accuracy (iso 10360, typical with sp25m): mpee 3. 0 + l/300 µm | mpep 3. 0 µm | mpe_thp 4. 4 µm / 68 s
• Dynamics: up to 519 mm/s | 1,732 mm/s²
• Probing/scanning: renishaw ph10m + sp25m (sm25-1…-5), fcr25/fcr25-tc (temperature-controlled)
• Software: inca3d premium (iges/step, scan options)
• Operating conditions: 20 °c ±2 °c; temperature gradients ≤ 1 °c/h and ≤ 1 °c/m
• Pneumatics: 6 bar, dry and oil/particle-free
• Power (controller): 90–240 v, 50/60 hz, 16 a; approx. 600 va (psu up to 2,000 va)
