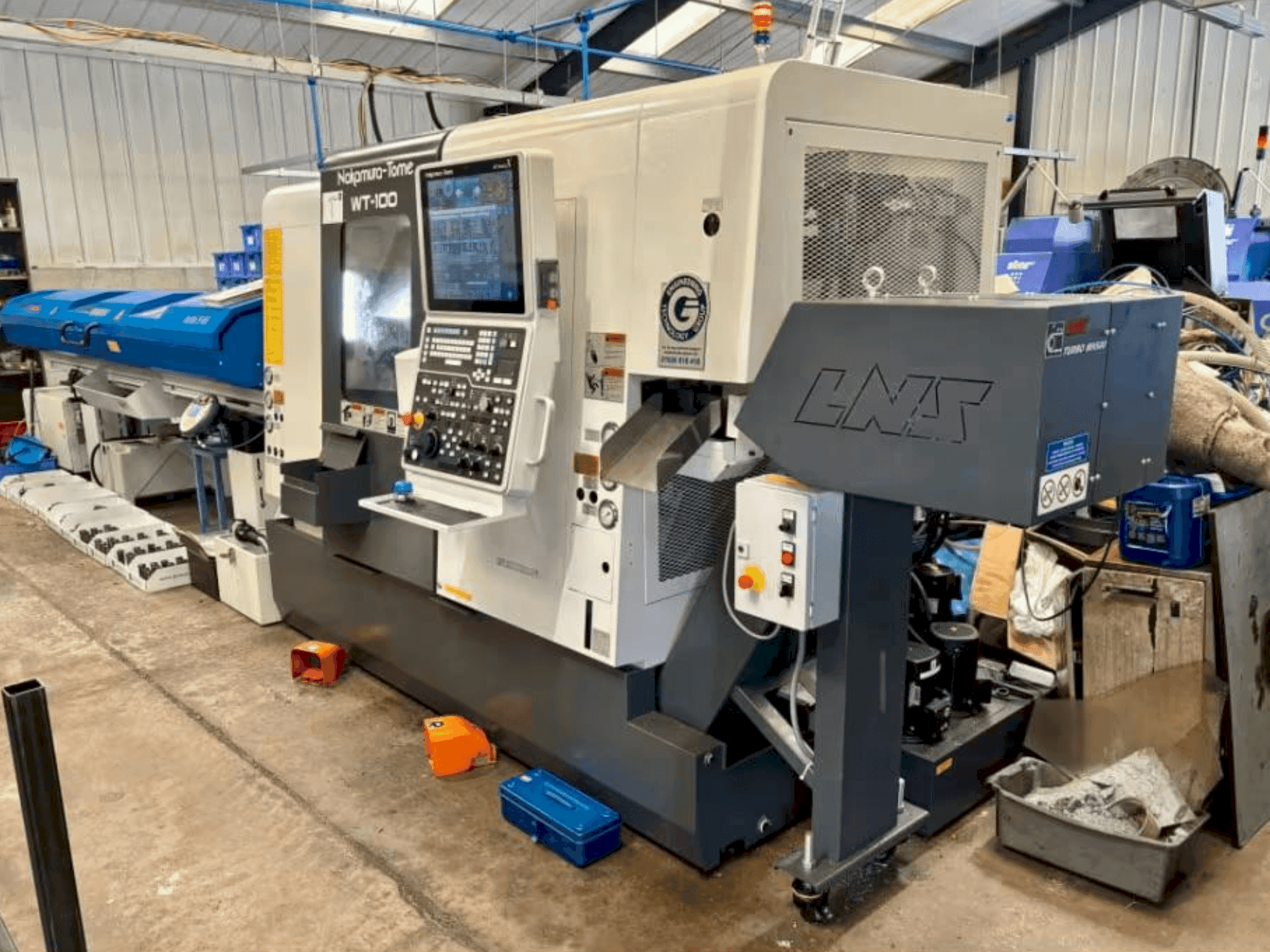

NAKAMURA - WT-100IT-TUR-NAK-2019-00001

Main spindle:

• Spindle nose: A2-5

• Through bore: Ø56 mm

Sub spindle:

• Speed: 6,000 rpm

• Spindle nose: A2-5

• Through bore: Ø56 mm

Distance between spindle noses: 735–210 mm

Bar capacity (main/sub): Ø42 mm

Turrets:

• Type: Dodecagonal drum (12 stations)

• Indexing positions: 24

• Standard turning diameter: Ø170 mm

• Maximum turning diameter: Ø190 mm

• Maximum turning length: 503 mm

Tooling:

• Collet chucks: Hardinge A2-5 65DL

• Turning tool shank: 20 × 20 mm

• Boring bar diameter: Ø25 mm

• Driven tooling speed: 6,000 rpm (7.1 / 2.2 kW motor)

Axis travels:

• X1 / X2: 135 mm

• Z1 / Z2: 503 mm

• C-axis: 0.001° increment

Rapid traverse rates:

• X1 / X2: 16 m/min

• Z1 / Z2: 40 m/min
