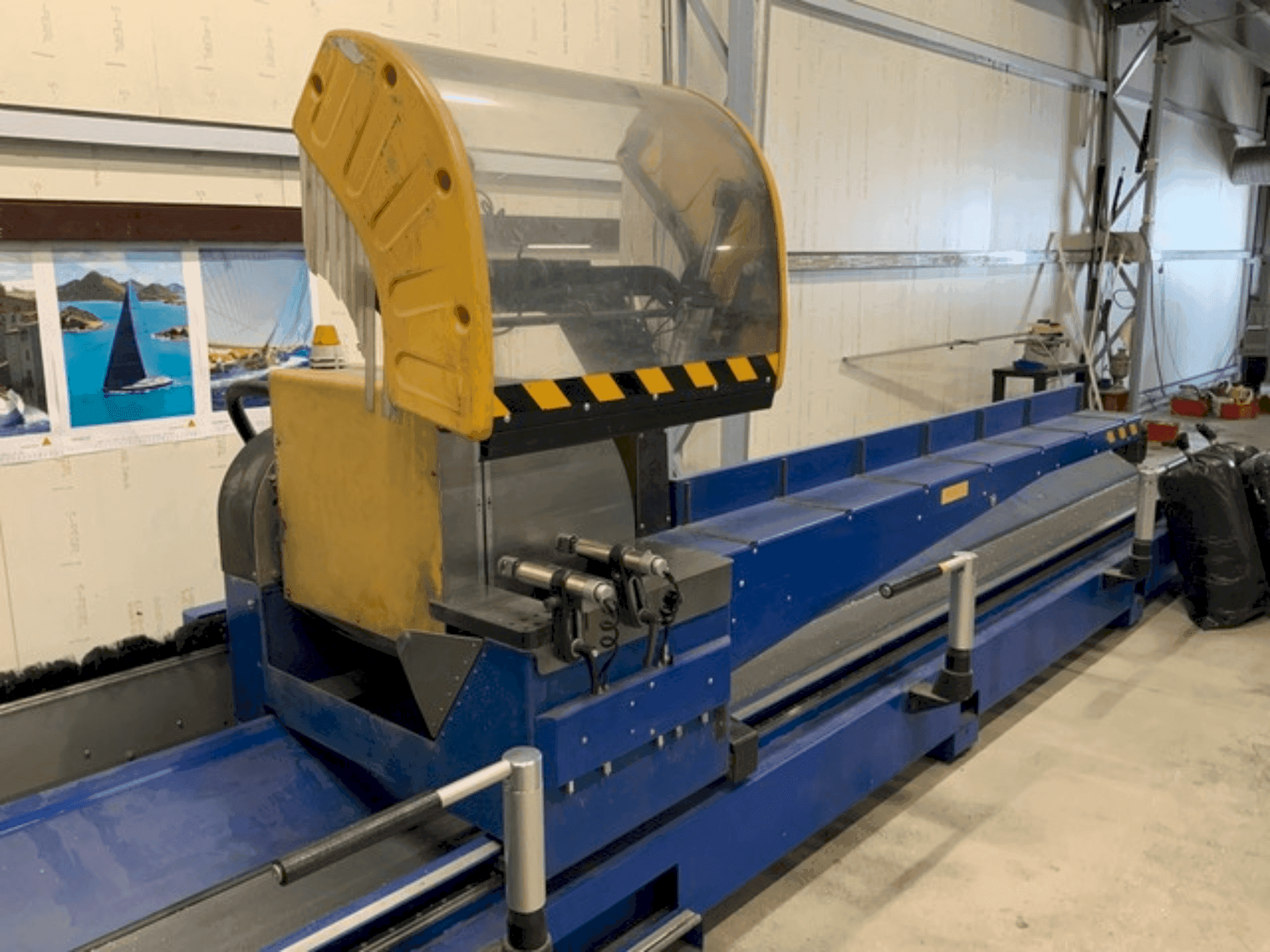

SCHÜCO - PDG e-Cut 600HU-SAW-SCH-2008-00001

Additional equipment

• Integral protective hood around cutting area
• Mobile head roller table (3 m)

Machine Benefits

Qualitative Machine Benefits

• Working pressure: 7 bar (adjustable)
• Tungsten carbide sawblades Ø600 mm
• Blade holding spindle Ø 40 mm
• Indirect motor-blade transmission by belt and pulley
• Air consumption per work cycle: 53 liters
• Electrical switchboard separate from pneumatic one
• Horizontal (4) and vertical (2) pneumatic vices
• Microdrop lubrication with pure oil kit
• Three-phase motors 5. 5 kw 2800 rpm, 400 v, 50 hz
• Manual kit for undersize cutting

Technical Machine Benefits

• Three-phase motors: 4 kw, 2800 rpm, 400 v, 50 hz
• Total power absorption: 10 kw at 400 v ac
• Total absorbed current: 20 a at 400 v ac
• Heads tilt electronically controlled from 45° internal to 20° external
• First head: fixed
• Second head: mobile with automatic positioning
• Mobile head positioning speed (automatic mode): ≤ 25 m/min
• Mobile head positioning precision: ± 0. 1 mm
• Minimum and maximum cutting capacity between heads: 5000–6600 mm (depending on version)
• Double working pressure servo-controlled at low pressure

Extra Information

Machine still under power. The machine is equipped with a kit for double-speed blade exit controlled by a transducer, profile clamping with related supports, swarf and chip conveyor belts, a profile height reader on the mobile head, an external supplementary vertical vice kit, step-by-step cutting programs with multiple control options, and is prepared for integration with a chip and fume extraction system; online assistance and a label printer are also available.
