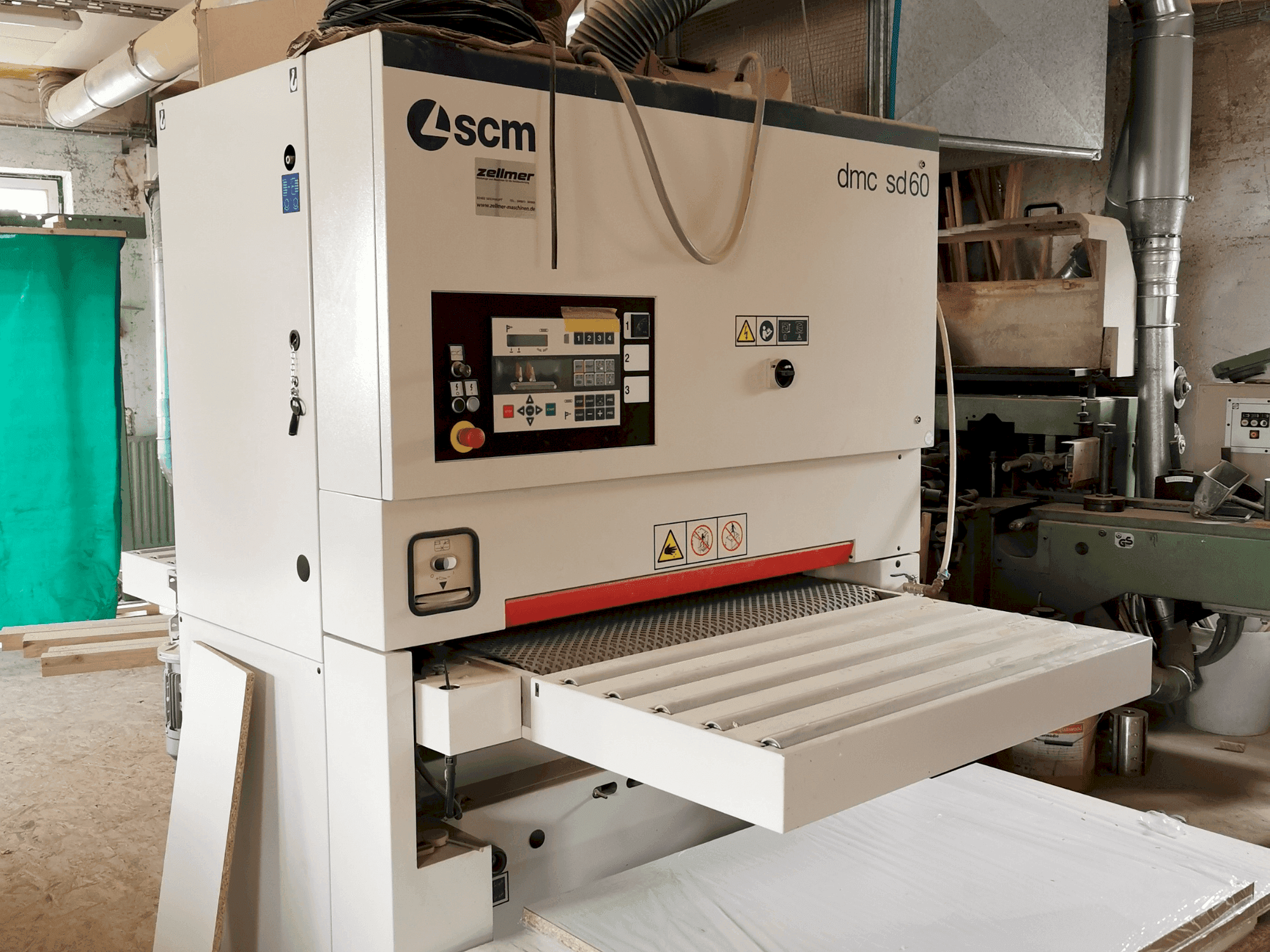

SCM - DMC sd60DE-SAN-SCM-2018-00001

Machine Benefits

Technical Machine Benefits

• Working width: 1100 mm
• Min. /max. Working height: 4 - 170 mm
• Sanding belt dimensions: 1115 x 2150 mm
• Feed speed: 4. 5 / 9 m/min
• Main motor 15 kw (20 hp)

Extra Information

ontrol Unit Electronic ammeter for the main motor to display current consumption Electronic display of the working height Electronically controlled sanding belt Electronic working height adjustment Electronic Programming Unit LOGIC 50 K Electronic Programming Unit LOGIC SC with LCD display with two rows of dust-proof polishing keypads and integrated LED signals Workpiece Rubber pressure rollers Kickback protection at the inlet Rubber feed carpet Roller table with two rollers at the inlet and outlet of the work table Pneumatic on/off switching of the roller - 1st unit Pneumatic on/off switching of the roller - 2nd unit TES elastic link sanding pad Pneumatic on/off switching of the sanding pad unit Tools "R" unit with roller "CS" combination unit with roller/sanding pad Rubber-coated calibration roller Rubber-coated sanding roller Hard sanding pad "RA" diagonally ribbed steel contact roller in the first unit
