Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
SEI - SPA X-Type 1610AT-LAS-SEI-2016-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas para chapa
- Used SEI LASER X-Type 1610 - 2016 - Laser Cutting Machine for sale | gindumac.com

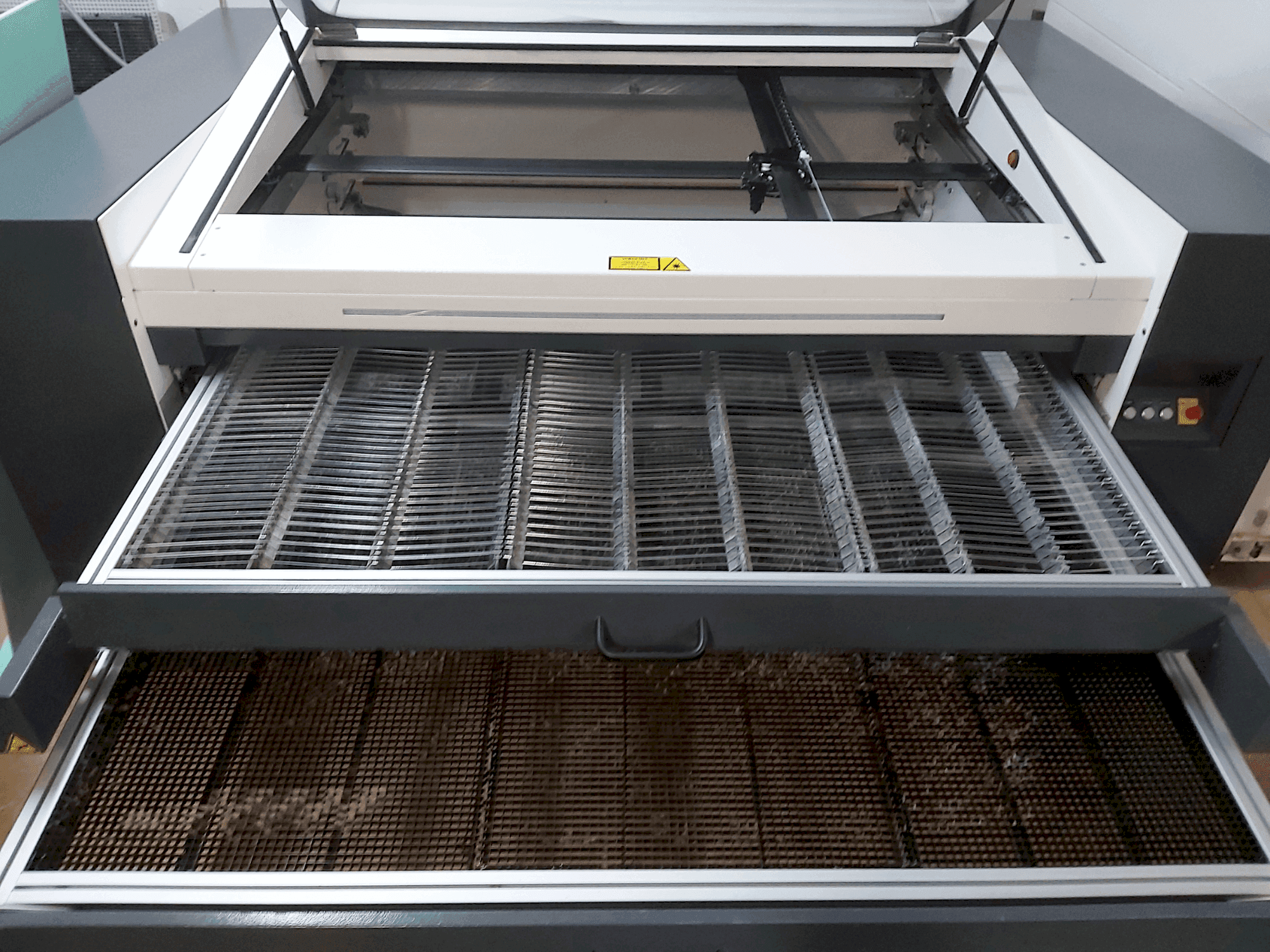

This 3-axis Sei SPA X-Type 1610 laser cutting machine was manufactured in 2016. It features dual tables allowing for simultaneous loading and unloading during processing, and a standard cutting head with a compressed air requirement of 6 bar. The machine can handle a maximum material weight of 40kg and includes a controlled motorized table stroke for precision. A great opportunity to buy this Sei SPA X-Type 1610 laser cutter. Reach out for more information about this machine.
Resumen
- marca: SEI
- año: 2016
- MODELO: SPA X-Type 1610
- horas de producción: 270
- tipo de aplicación: Corte
- Ubicación: Austria
- tipo de máquina: Máquina de corte láser CO2
Información adicional
Additional equipment
- Standard cutting head: compressed air 6 bar
- Two tables for loading and unloading
- Linear motors and carbon fiber traverses
- Liquid cooling for laser source
- A Herding Delta 1500-10/9 with multicoater
Machine Benefits
Technical Machine Benefits
- Axis x-y; max. Working speed 3000mm
- Axis x-y; max. Laser running speed 3000mm
- Axis x-y accuracy 0. 001mm
- Z-axis stroke: 210 mm with dual table, 80mm with mono table
- Max. Scanning speed: 3000mm /s
- The machine has 4 linear motors, two for the x-axis and two for the y-axis
- According to the operating instructions: resolution x-y axes: 0. 001 mm / short-term repeatability: +/- 0. 01 mm
- Precision of the camera system (optional, not currently installed in this machine): +/- 0. 1 mm per linear metre of displacement (after calibration of the ccd)
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
