Sodick - A 530 D AWTDE-EDM-SOD-1996-00001
¿Tiene más preguntas? ¡Contáctenos!

José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used Sodick A 530 D AWT Wire EDM For Sale | gindumac.com

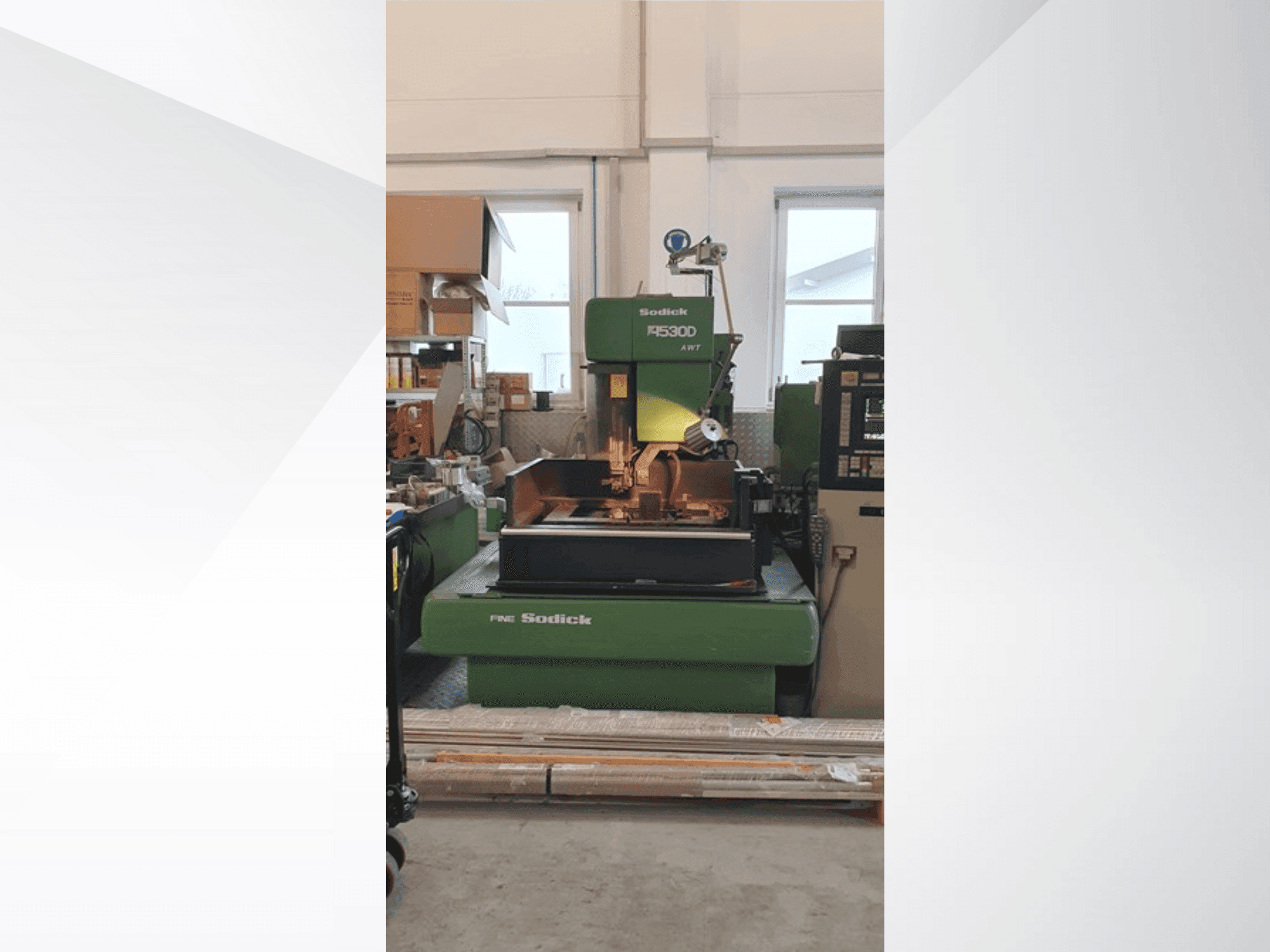

This 4-axis Sodick A 530 D AWT wire EDM machine was manufactured in 1996. It features a table stroke of 500 x 320 mm and a Z-axis range of 270 to 275 mm. Capable of handling workpieces up to 900 x 700 x 260 mm and a maximum weight of 500 kg, it offers a taper angle of ±10°/100. Consider the opportunity to buy this Sodick A 530 D AWT wire EDM machine. Contact us for more information about this machine.
Resumen
- marca: Sodick
- año: 1996
- MODELO: A 530 D AWT
- tipo de aplicación: EDM
- Ubicación: Alemania
- tipo de máquina: Máquina de electroerosión por hilo
Información técnica - Sodick A 530 D AWT
Dimensiones
- Profundidad de la máquina: 1600 mm
- Altura de la máquina: 2030 mm
- Peso de la máquina: 1800 kg
Recorrido
- Número de ejes: 4
- Recorrido eje Z: 270 mm
Información adicional
Additional equipment
- Under-table stroke (U and V axis): 50 x 50 mm
- Wire tension: 200 to 2000 g / Wire feed speed: 240 mm/sec / Wire diameter: 0.1 to 0.3 mm / Volume cable reel max: 6 kg
- Water tank external dimensions: 2200 x 900 x 1645 mm
- Empty weight of water tank: 300 kg
- Water tank capacity: 738 litres
Machine Benefits
Technical Machine Benefits
- Maximum workpiece dimensions: 900 x 700 x 260 mm / maximum workpiece weight: 500 kg (350 kg immersed)
- Height top of table from biden: 982 mm
- Taper angle: ±10°/100
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
