Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
Sodick - AQ327LHU-EDM-SOD-2003-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- SODICK AQ327L Wire cut EDM machine

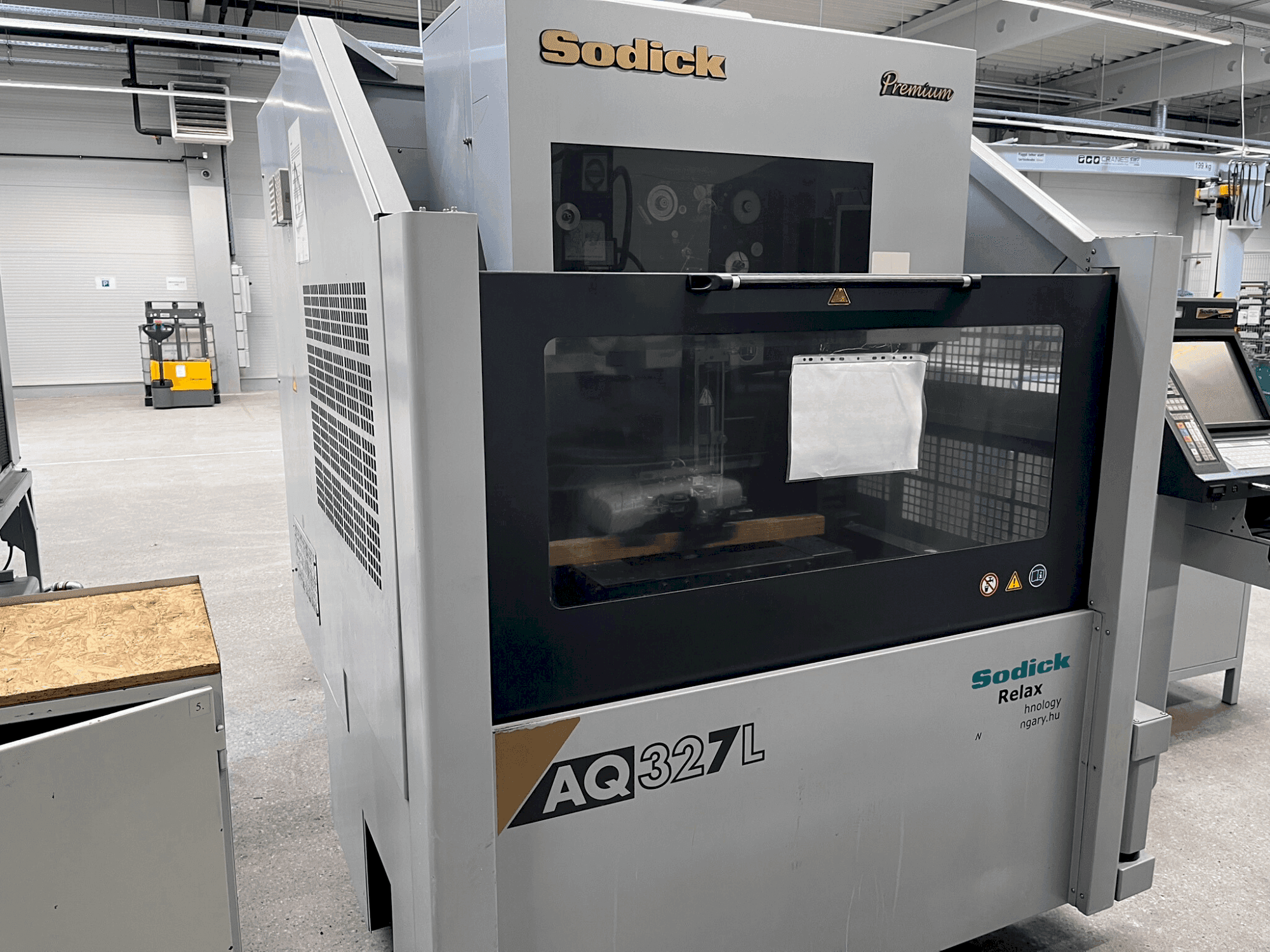

This SODICK AQ327L Wire cut EDM machine was manufactured in 2006. It is equipped with a SODICK LQ33W control and has 3 axes with axis travel (X x Y x Z) 370 x 270 x 250 mm. The machine has a work tank inner size of 820 x 610 mm and operates with a wire diameter of Ø 0.15 - Ø 0.3 mm.
Resumen
- marca: Sodick
- año: 2006
- MODELO: AQ327L
- tipo de aplicación: EDM
- Ubicación: Hungría
- tipo de máquina: Máquina de electroerosión por hilo
- Marca de unidad de control: SODICK
Información técnica - Sodick AQ327L
Unidad de Control
- Marca del control: SODICK
- Modelo del control: LQ33W
Dimensiones
- Peso de la máquina: 3950 kg
Información adicional
Machine Benefits
Technical Machine Benefits
- Work tank size: 850 x 610 mm
- Max. Workpiece dimensions (w x d x h) 570 x 420 x 240 (flushing) mm // 570 x 420 x 230 (submerged) mm
- Max. Workpiece weight: 500 kg
- U axis x v axis travel 120 x120 mm
- Taper angle (workpiece thickness of 100mm) ±25°
- Wire diameter 0. 15~0. 30#1 mm
- Wire feed speed (max) 420 mm/sec
- Wire tension 3~23 n
- Distance from floor to table top 995 mm
- Total power input normal: 10,5 kva
Extra Information
Sodick's pioneering advancements in core technology have propelled them to achieve unparalleled feats in high-speed precision machining, epitomized by their groundbreaking "7 series". Extensive simulations conducted through state-of-the-art 3-D design systems have underscored the advantages of Sodick's innovative design approach, leveraging ceramics for critical machine tool components. Nonetheless, Sodick remains steadfast in its commitment to time-tested methodologies, such as meticulous scraping of all mating surfaces, to optimize the inherent robustness of the machine's foundational structure. The cutting-edge electric discharge control system orchestrates machine tool operations with precision, while the incorporation of linear motors on each axis ensures unparalleled responsiveness.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
