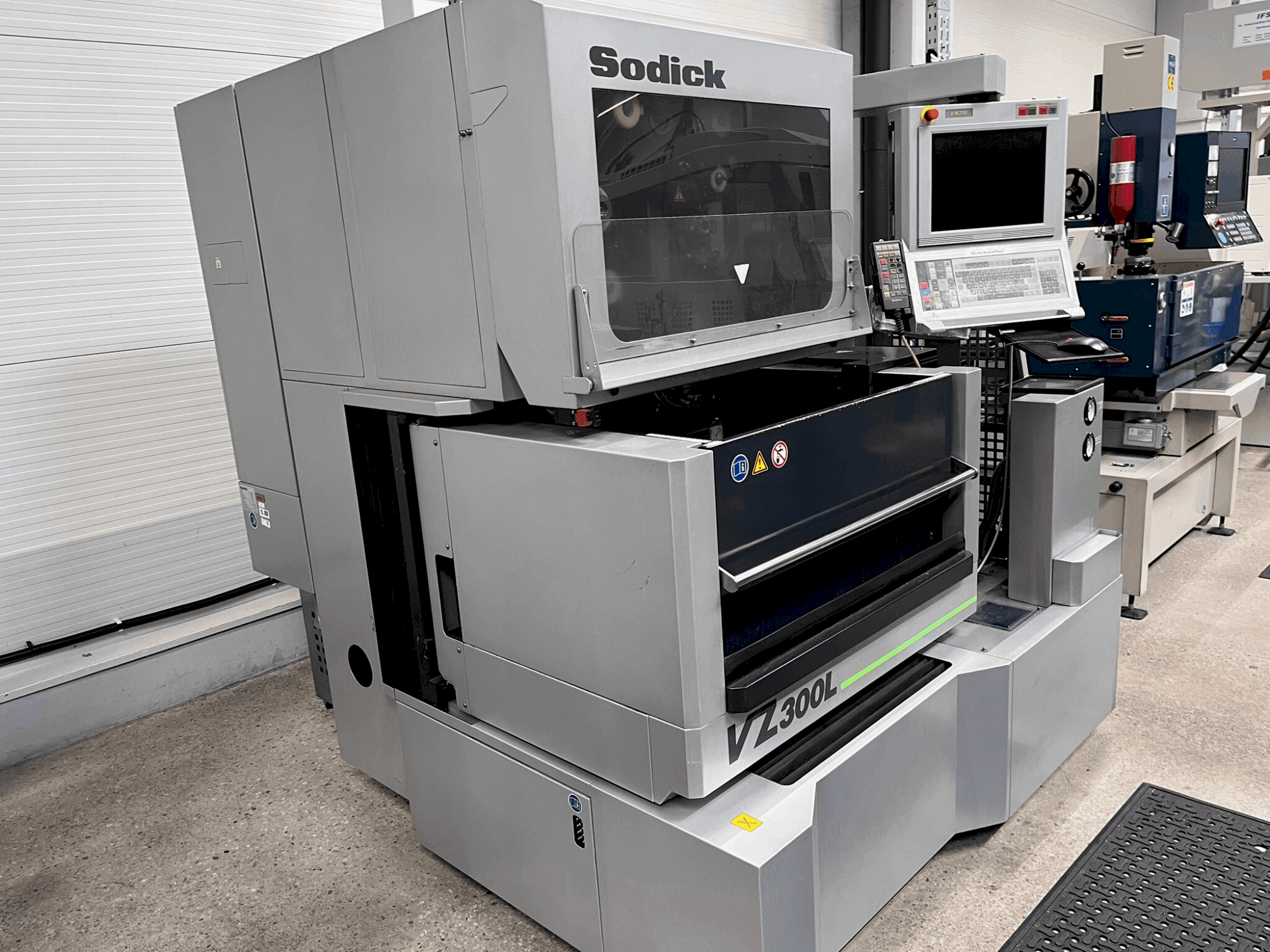

Sodick - VZ 300LHU-EDM-SOD-2010-00001

Machine Benefits

Qualitative Machine Benefits

• Linear motors (x, y, u, v axis) // linear glass scales (x, y, u, v axis)
• Heart nc–automatic programming system // high speed electrolysis free circuit
• Corner control // tension servo
• Energy saving circuit // ftii (fine pick-up function)
• Dielectric cooling unit (chiller) // z -axis automatic water level control
• Super jet awt (annealing type) // wire tip disposal unit
• Remote controller & mouse // ups // step-down transformer
• Lan +usb // 15" tft lcd touch screen
• Front door up-down slide tank // slide plate cleaning function
• Low pressure flushing

Technical Machine Benefits

• Work tank inner size (w x d) 810 x 650 mm
• Max. Size of workpiece(w x d xh) -submerge 780 x 570 x 200 mm
• Max. Size of workpiece (w x d xh) - flushing 780 x 570 x 215 mm
• Max. Weight of workpiece - submerge 350 kg
• Max. Weight of workpiece - flushing 500 kg
• Auxiliary table travel (u x v axis) 80 x 80 mm
• Wire diameter Ø0. 15-Ø0. 3 mm
• Taper angle / thickness ±15° / 120 mm
• Dielectric fluid capacity 550 liters
• Power consumption (3 ph. 50/60 hz) 11 kva // max. Machining current 32a

Extra Information

The ideal entry-level machine from Sodick incorporates all of the company's key features, including linear motor drives paired with linear scales. This drive method ensures sustained high-speed and rapid response, while preserving initial positioning accuracy over the long term. Users can expect consistently reliable machining performance. The VZ series boasts versatility and comes equipped with a range of standard functions, including Heart-NC onboard programming, advanced corner control, automatic float control, and a new power supply featuring advanced active control discharge technology, among others. Furthermore, Sodick utilizes its in-house superior ceramics as the standard material for precision machining applications.
