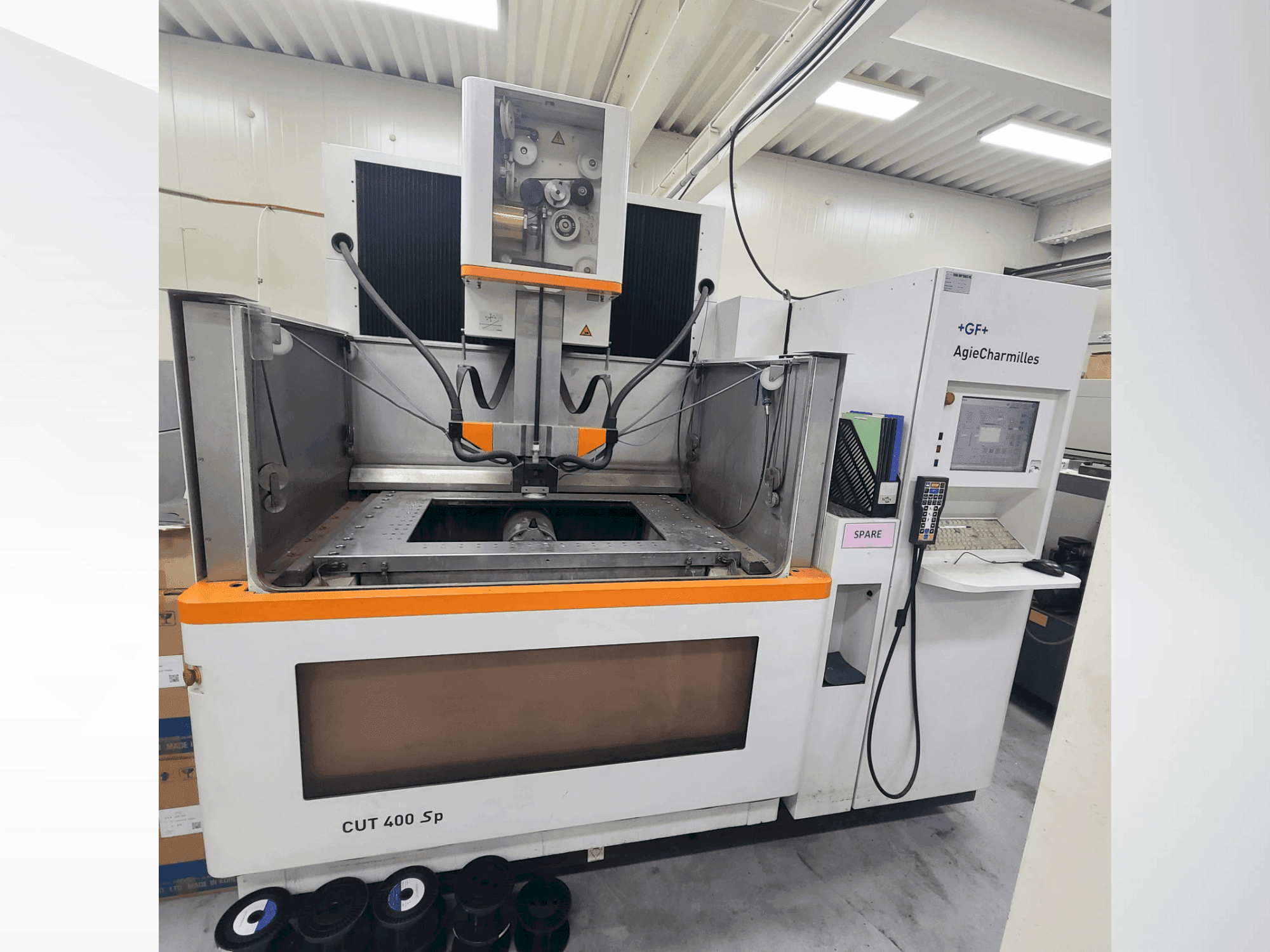

AGIE - CUT 400 SpKR-EDM-AGI-2013-00002

Additional equipment

• Programmable Wire Tension: 0.3 to 3 daN / Automatic Threading and Rethreading for Wire: 0.30 to 0.20 mm
• Large Spools: Weight 25 kg (K250)
• NC Functions: File Management, AC CAM EASY, EDM-EXPERT, OPERATIONS ORGANIZER, Fast Measuring Cycles, 3D Graphic Simulation, Integrated Documentation, PART EXPRESS, Job List, SURFACE-EXPERT, POWER-EXPERT, PROFIL-EXPERT
• Options: TAPER-EXPERT, e-Connect, e-Supervision, e-Control / Extended Taper Cutting: From 30° to 45° / Used Wire Processing: Wire Chopper
• Rotating Axes: Index or Servo-Control / Automatic Part Leveling: 3D SET UP / Optical Measuring System: OMS / 3D Probing: Renishaw Probe

Machine Benefits

Technical Machine Benefits

• Max. Cutting speed: 400 mm²/min
• Min. Finishing: 0. 2 µm ra
• Control unit: architecture: pc multiprocessors / operating system: windows / screen: lcd 15'' tft / data input: touchscreen / part program capacity: 4 mb / position measurement system / measurement resolution: linear glass scales / 0. 050 µm
• Type of wire guides: closed diamond type without clearance / wire circuit / wire diameters available: 0. 30 to 0. 20 mm
