This swiss type turning machine was manufactured in 2023. It features a robust linear slide, a 6-fold tool holder shank 12x12mm, and multiple cross drilling attachments including ER11 and ER16. Equipped with a counter spindle for rear end machining and a separate coolant tank with flow monitoring, it ensures efficient operations. Additionally, it includes an IEMCA BOSS 338/32 H loading magazine with a channel diameter of 24 mm. Contact us for further details regarding this machine.
Resumen
- marca: STAR MICRONICS
- año: 2023
- MODELO: SB-20R-G
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Torno de tipo suizo
Información adicional
Additional equipment
- Linear slide
- 6-fold tool holder shank 12x12mm
- 2 cross drilling attachments ER11
- 2 cross drilling units ER16
- Drilling device for front/rear face machining with 4 drilling quills (2x ER16 single, 2x ER16 double)
- Drive unit for tools for main side machining
- ER16 front drilling unit for rear end machining with reinforced bearing
- 4 additional free M commands for valve control of the HP valve positions
Machine Benefits
Qualitative Machine Benefits
- 5 cross drilling units can be used if the 4-fold drilling unit is not used
- Rear end machining with 4 machining stations er16
- Drive unit for tools for rear end machining on 4 stations
- 4 additional m commands for valve control of the hp valve positions
- Hp pressure levels: up to 8 possible

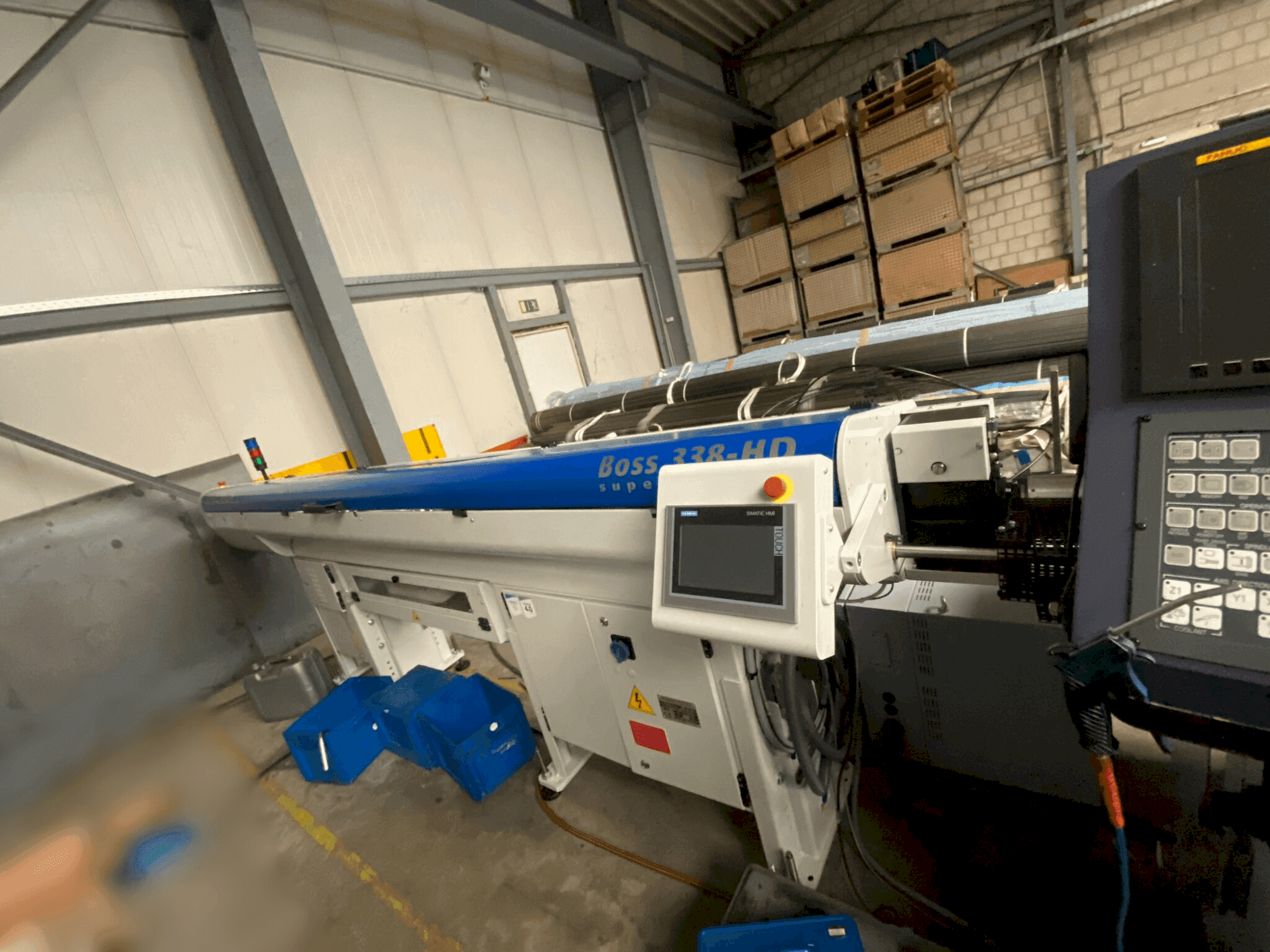

- Loading magazine iemca boss 338/32 h: channel diameter 24 mm, Ø 3-38 mm, slide diameter 23 mm
Technical Machine Benefits
- Counter spindle for rear end machining
- Cut-off steel breakage protection
- Mechanical workpiece ejection device
- Part ejection control
- Blow-out device for counter spindle
- Workpiece collector
- Workpiece conveyor for discharging the workpiecesworkpiece conveyor for discharging the workpieces
- Separate coolant tank with level and flow monitoring
- Automatic centralised lubrication with level monitoring
- Tool box with special tools
Extra Information
Machine still under power
