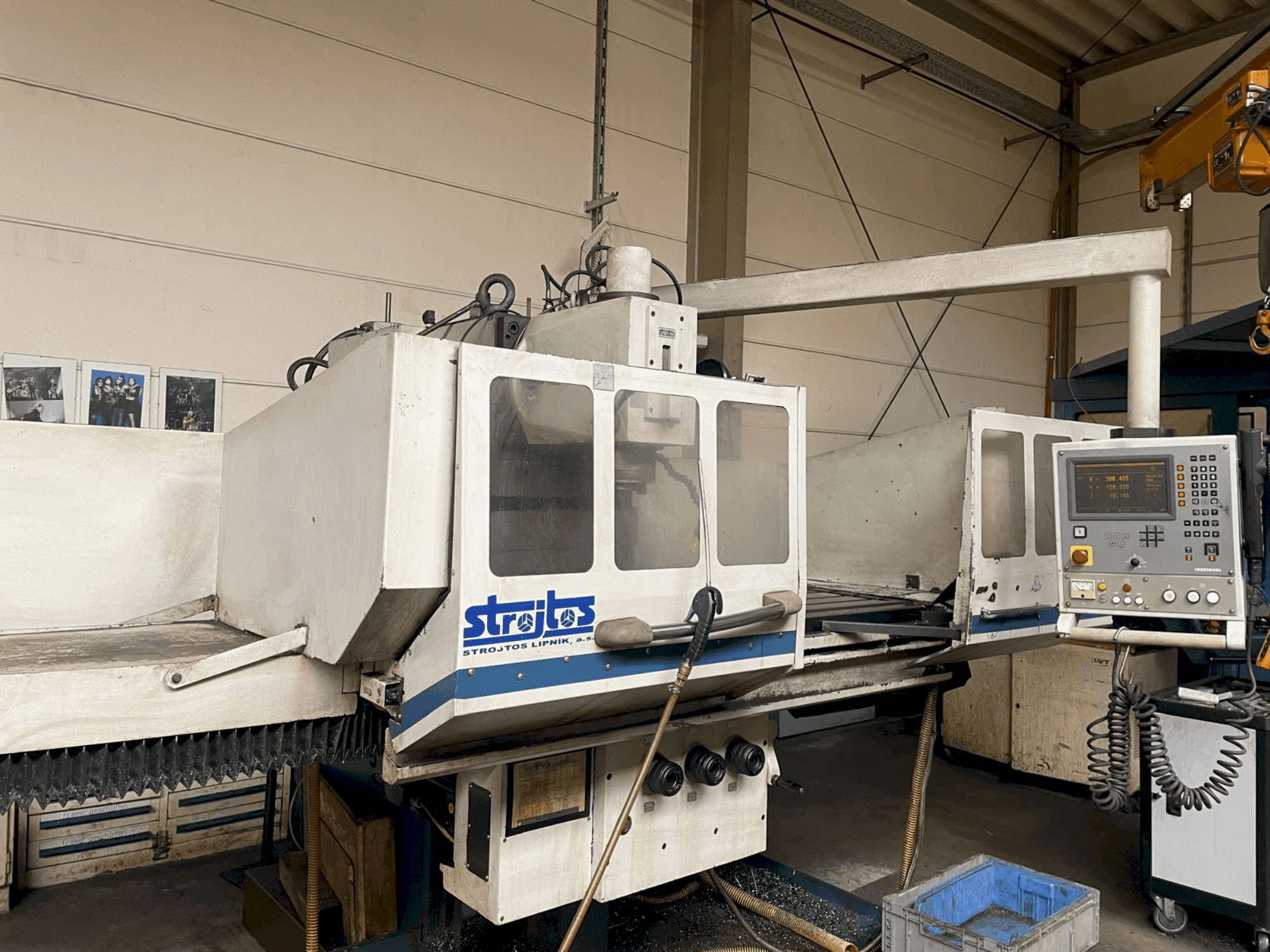

Strojtos - FGS 63 NCPDE-MIL-STR-2007-00001

Additional equipment

• Sound Power: 97.5 dB
• Sound Level at Workstation: 80 dB/A

Machine Benefits

Technical Machine Benefits

• Longitudinal table feed (machine-operated): 1400 mm
• Cross-traverse headstock movement (machine-operated): 630 mm
• Vertical table movement (machine-operated): 600 mm
• Table clamping surface (width x length): 630 x 1800 mm
• Number of clamping slots: 5 width x pitch: 22 x 100 mm
• Feed motor speed (continuous): 0-2000 min-1 // feed motor power: 2. 2 kw
• Cooling motor speed: 2800 min-1 // cooling motor supplied power: 0. 115 kw
• Maximum transported fluid volume: 40 dm3 min-1
• Total power approximation: 20 kva
• Approximate floor area: 15. 1 m2

Extra Information

Table Table Clamping Surface (Width x Length): 630 x 1800 mm Number of Clamping Slots: 5 Width x Pitch: 22 x 100 mm Spindle Tapered Spindle Bore: CSN 22 0430 ISO 50 Spindle Diameter in Front Bearing: 100 mm Maximum Spindle Torque: 1600 Nm Spindle Speed: 18 steps Normal Speed Range: 56-2800 rpm Reduced Speed Ranges: 45-2240 rpm 35.5-1800 rpm 28-1400 rpm Workpiece Max. Workpiece Weight: 1000 kg Max. Feed Forces: Longitudinal: 20000 N Transverse: 20000 N Vertical (Table Loaded with Max Mass of Workpiece): 28000 N Distance Between Spindle Axis and Table Clamping Surface: 73-573 mm Distance of Spindle Face from Table Rear Edge: 350-280 mm
