TSCHUDIN - ecoLINE 400DE-GRI-TSC-2004-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- TSCHUDIN ecoLINE 400 Centerless Grinding Machine

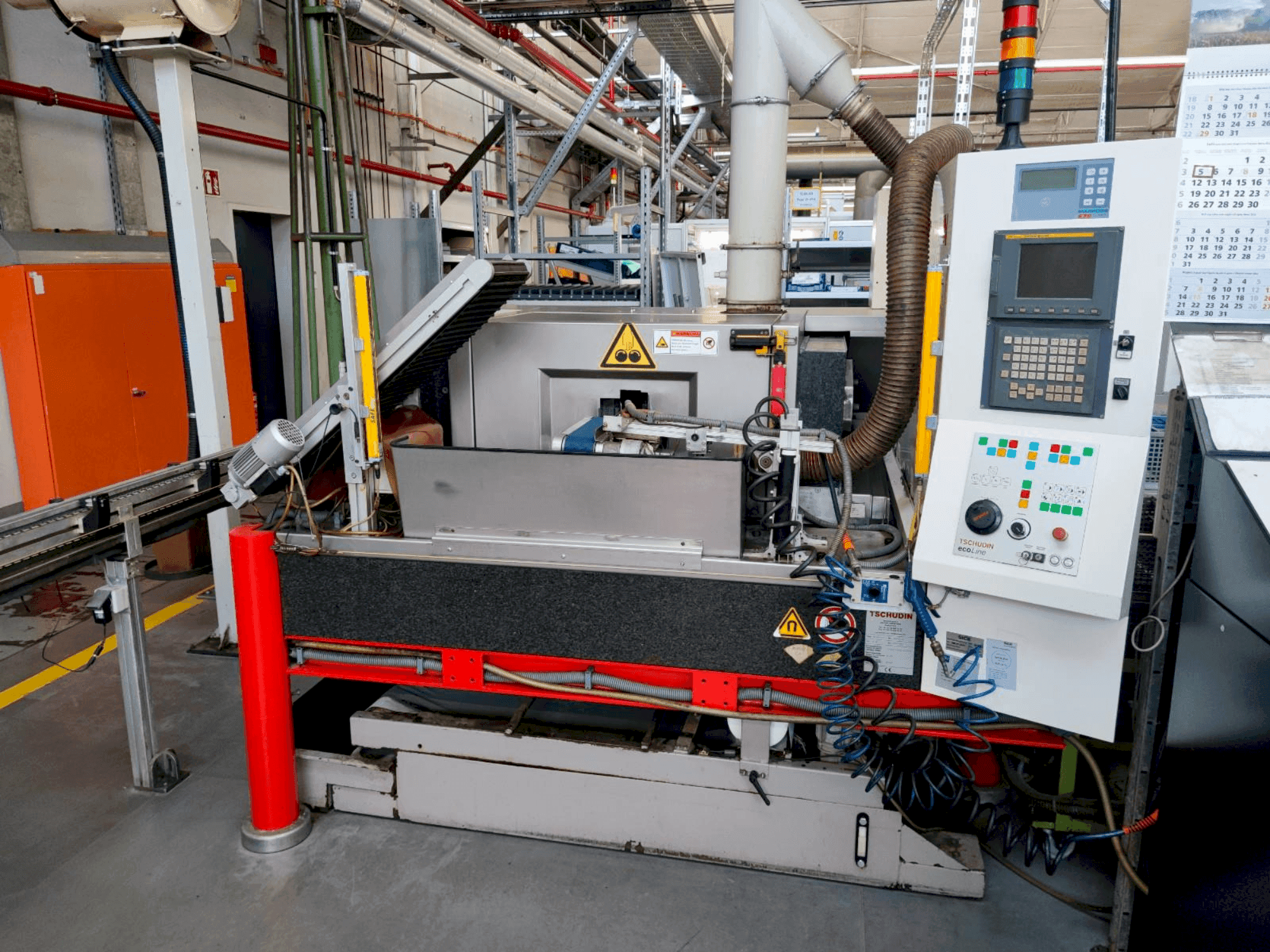

This TSCHUDIN ecoLINE 400 Centerless Grinding Machine was manufactured in 2004 in Switzerland. It is designed for the highest possible process stability and machine reliability. The machine is special for machining workpieces with diameters up to 100 mm. It is operated with a FANUC 21i-MB control. Due to a project it was extended with a customized system for automated loading and unloading. In addition there are conveyor belts controlled via PLC control Tschudin. The machine is still under power and can be inspected at any time.
Resumen
- marca: TSCHUDIN
- año: 2004
- MODELO: ecoLINE 400
- tipo de aplicación: Rectificado
- Ubicación: Alemania
- tipo de máquina: Rectificadora Sin Centros
- Marca de unidad de control: FANUC
Información técnica - TSCHUDIN ecoLINE 400
Unidad de Control
- Marca del control: FANUC
- Modelo del control: 21i-MB
Dimensiones
- Profundidad de la máquina: 2400 mm
- Altura de la máquina: 1900 mm
- Peso de la máquina: 6000 kg
Especificación Técnica
- Diámetro máximo de pieza: 100 mm
Información adicional
Additional equipment
- Conveyor belts (controlled via Tschudin PLC control system)
Machine Benefits
Qualitative Machine Benefits
- Ideal for cylindrical grinding in series production
- Partially customized as part of a project: equipped with a system for automated loading and unloading.
- Serviced by the operator's maintenance department in accordance with the manufacturer's maintenance specifications
Technical Machine Benefits
- Throughfeed grinding // workpiece diameter: 1. 5-100 mm
- Plunge grinding // workpiece diameter: 1. 5-100 mm, maximum sanding length: 250 mm
- Grinding wheel // max. Outer diameter: 400 mm, inner diameter: 203. 2 mm, max. Width: 250 mm, peripheral speed (max. 8600 rpm): 50 m/s, drive power/ with balancing device: 11 kw
- Regulating disk // max. Outer diameter: 225 mm, inner diameter: 127 mm, max. Width: 250 mm, speed range: 0-265 rpm, max. Tilt angle: ±5°, drive power: 3. 7 kw
Extra Information
Control voltage: 24 V DC // Connected load: 25 kVA
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
