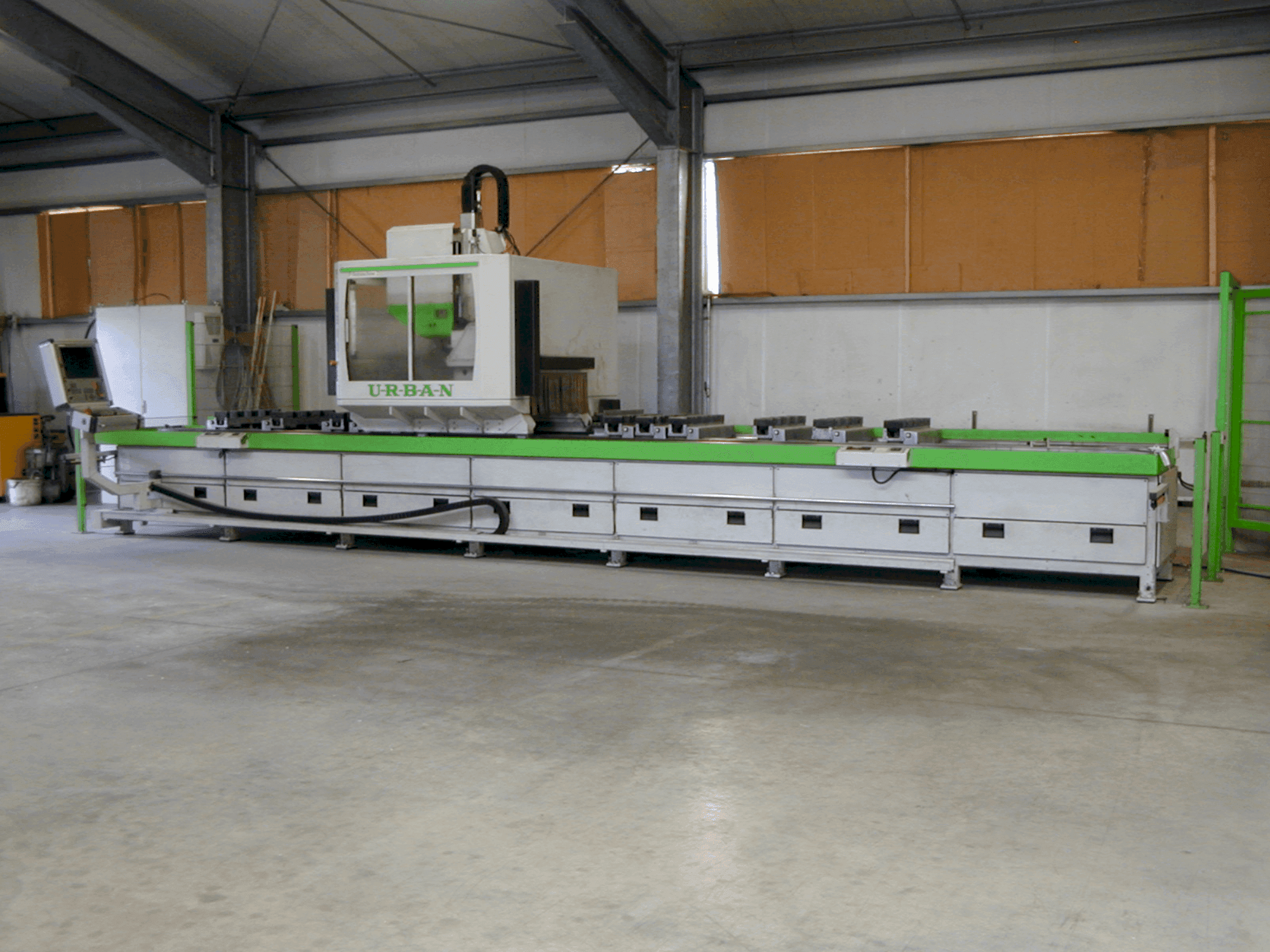

This 3-axis URBAN PF 6500 milling machine was manufactured in 2009. It features a Heidenhain ITNC 620 CNC control, a 12-position tool changer, and a spindle capable of 6000 rpm. The machine offers a machining length of 6500 mm and supports a table load of up to 500 kg/m. Additional features include a special hydraulic/pneumatic clamping unit and safety fencing. A great opportunity to buy this URBAN PF 6500 milling machine. Contact us for further details regarding this milling machine.
Resumen
- marca: URBAN
- año: 2009
- MODELO: PF 6500
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado universal
- Marca de unidad de control: HEIDENHAIN
Información técnica - URBAN PF 6500
Unidad de Control
- Marca del control: HEIDENHAIN
- Modelo del control: ITNC 620
Dimensiones
- Peso de la máquina: 6500 kg
- Carga de mesa: 500 kg
Recorrido
- Número de ejes: 3
- Recorrido eje X: 6670 mm
- Recorrido eje Y: 695 mm
- Recorrido eje Z: 585 mm
Especificación Técnica
- Potencia del husillo: 5.5 kW
- Velocidad del husillo: 6000 RPM
Información adicional
Additional equipment
- Heidenhain HR130 handwheel: Yes
- Control panel: Can be moved along the entire length
- Tool cooling: By compressed air/cold air down to -20°C
- Automatic central lubrication system: Yes
- Chip tray: With 6 drawers
- Safety fencing: Yes
- Special hydraulic/pneumatic clamping unit: 2x4-fold for bar and profile processing
- Quick clamping units: 6 4-fold per side
- Pendulum operation: 2 working areas with 2650 mm processing length each
- Tool Changer: 12-position tool changer with disc magazine
Machine Benefits
Qualitative Machine Benefits
- Precision control with heidenhain itnc 620, enhanced safety with safety fencing and safety zone
Technical Machine Benefits
- Clamping stroke: 55 mm
- Clamping range: 28-80 mm
- Safety zone: 1200 mm
- Long machining length of 6500 mm, tool cooling by compressed air/cold air down to -20°c, pendulum operation with 2 working areas for increased efficiency
Extra Information
Machine still under power
