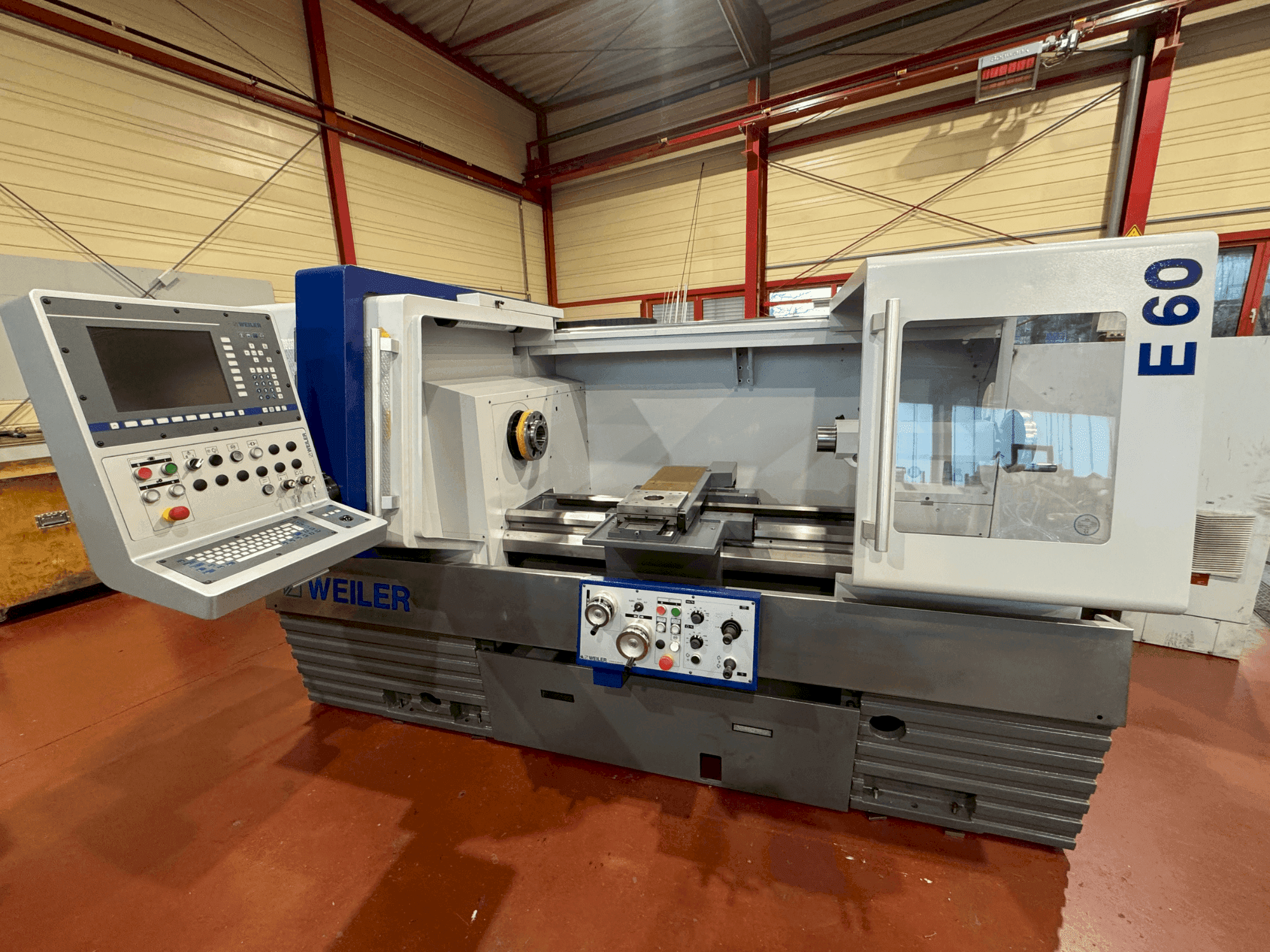

Weiler - E 60x1000DE-TUR-WEI-2009-00001

Additional equipment

• Tailstock spindle diameter: 100mm / Tailstock spindle travel: 200mm / Internal taper of the tailstock spindle: Mk.5

Machine Benefits

Technical Machine Benefits

• Distance between centers: 1000mm /center height: 320mm / swing diameter over bed: 640mm / swing diameter over carriage: 405mm

• Carriage travel: 380mm / bed saddle guide length: 570mm

• Spindle head according to din 55025, size 8 / spindle bore: 83mm / internal taper of the main spindle: metric 90

• Drive power 60% / 100% duty cycle: 20. 5/17 kw / max. Torque at the spindle: 1400nm / speed range gear stage 1: 0-800 rpm / speed range gear stage 2: 0-2500 rpm

• Overhaul measures include hardening and grinding of bed guideways, grinding of tailstock guideways, and overhauling of bed and cross-slide unit.

• Replaced and renewed components include sliding surfaces, wedge rails, all wipers, belts, main spindle motor, safety devices, rotary switches, and lubrication system.

• Cycle control weiler: 840d/sl1

• Tool holder according to customer requirements: multifix size c or parat size 3

Extra Information

Machine overhauled in 2022

Cycle controlled

Optional: A used 200 mm jaw chuck can be supplied. A Lynette is not included with a 1 m centre distance, but can be purchased from the manufacturer at any time. As stated in your description, we offer customers a choice of two different tool systems: Multifix size C or Parat size 3. These are completely rebuilt, which is why there are no tool holders.
