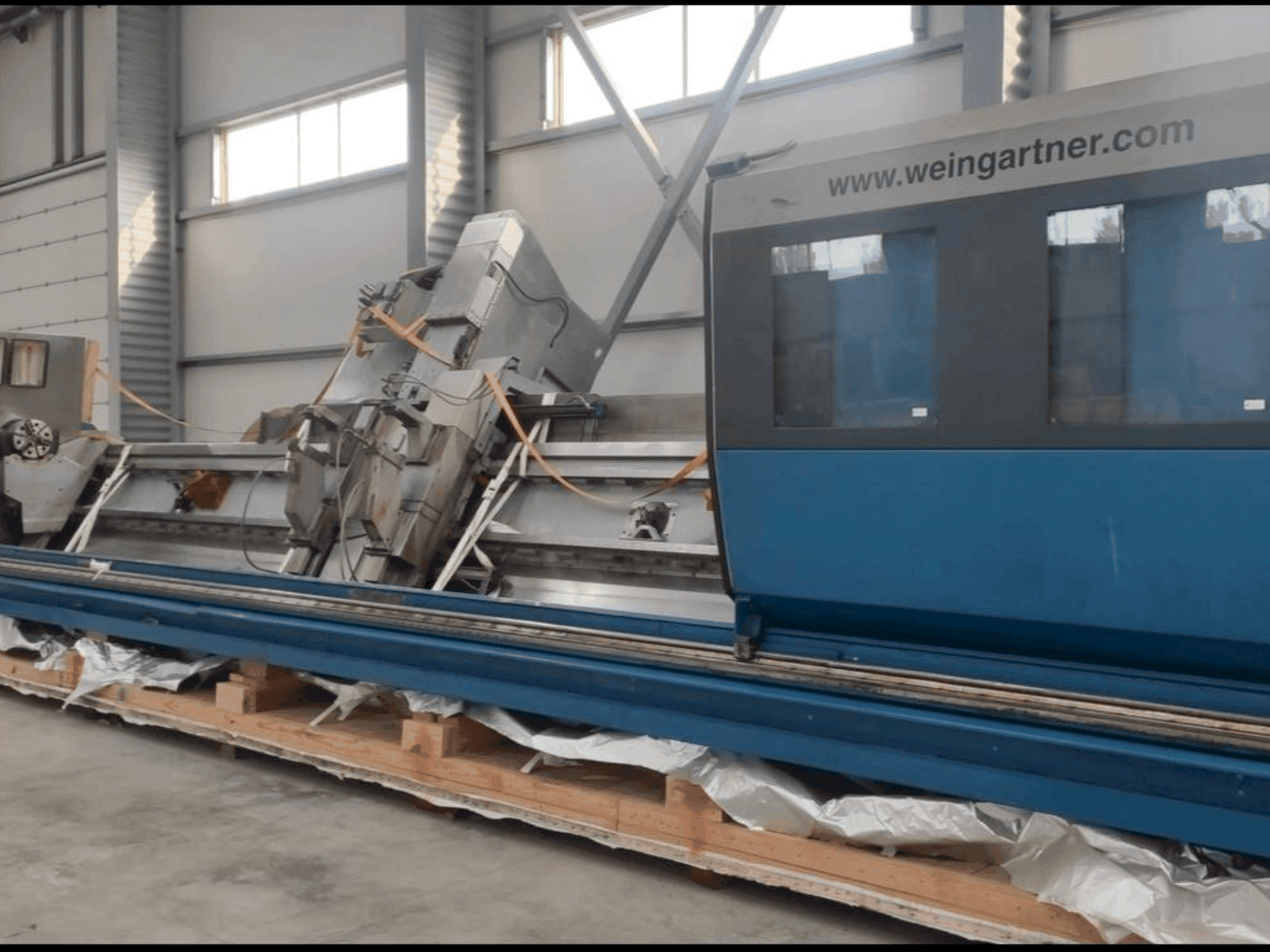

Weingartner - Vario 700-000MD-MIL-WEI-2011-00001

Additional equipment

• Headstock: Feed by AC servo motor: 1FT6 105 – 8SF71 – 3AG1, Torque available at the main spindle in S1 operation, Bevel gear box ratio: 4:1, Worm drive ratio: 15:1, Total reduction ratio: 60:1, Main spindle height: 1550 mm, Main spindle bore: 108 mm, Chuck Gr. 315: Bore diameter: 95 mm, Max. pressure: 27 bar, Max. clamping force at 27 bar: 17500 daN, Outside clamping: 25 – 245 mm, Inside clamping: 90 – 310 mm
• Chip Conveyor: Drive power: 1.1 kW, Discharge width: 250 mm, Discharge height: 850 mm, Swarf conveyed: 300 dm³/h
• Hydraulics: Pump delivery: 27 l/min, Max. system pressure: 80 bar, Drive power: 4.6 kW, Tank capacity: 60 l, Oil cooler power: 0.3 kW
• Milling Unit PUFK-320: Peripheral and Hobbing Milling Unit, Swiveling axis A feed by AC servo motor: 1FT6 084 – 8AF71 – 3EL4, Planetary gear box ratio: 70:1, Gear transmission ratio: 3:1, Total reduction ratio: 210:1, Max. swiveling speed: 90°/sec, Swiveling range: ±90°, Feed by AC main spindle motor: 1PH7 137 – 2NF22 – 0CJ2, Max. cutter head diameter: 260 mm, Max. cutter head speed: 300 min⁻¹
• Peeling Unit (Option): Feed by AC main spindle motor: 1PH7 137 – 2NF22 – 0CC2, Gear ratio: 2.4:1, Max. cutter head speed: 1800 min⁻¹
• Front Steady Rest: Diameter range (milling jaws): 25 – 220 mm, Max. clamping force at 80 bar (without efficiency): 1200 daN, Max. clamping pressure: 80 bar
• Rear Steady Rest: Diameter range (milling jaws long): 25 – 220 mm, Max. clamping force at 80 bar (without efficiency): 1200 daN, Max. clamping pressure: 80 bar
• Tailstock: Feed by AC servo motor: 1FT6 064 – 6AF71 – 3EK4, Bevel spur gear ratio: 50:1, Rapid traverse max: 5000 mm/min, Quill diameter: 160 mm, Stroke: 200 mm, Pressure at 50 bar: 1500 daN, Tension at 50 bar: 1000 daN, Max. pressure: 50 bar
• Workpiece Support: Diameter range: 70 – 220 mm
• Total Machine Specifications: Supply Voltage: 3 x 380 V ± 10%, Cycle: 50 Hz ± 2%, Max Power Input: 57 kW, Max Power: 100 A, Control Voltage: 24 V DC, System Pressure (Pneumatics): 6 – 10 bar, Air Consumption: 15 – 20 m³/hour, Air Connector: ½”, System Pressure (Hydraulics): 90 bar

Machine Benefits

Qualitative Machine Benefits

• Enhanced precision with advanced gear ratios and ball screw mechanisms, efficient operation with high rapid traverse speeds

Technical Machine Benefits

• Machinable materials: milling between centers: min. Length: 585 mm, max. Length: 8,620 mm, diameter: 25 – 220 mm
• Machine components: machine base: distance of longitudinal slide guideway: 700 mm, length of longitudinal slide guideway: 10,900 mm, weight: 20,000 kg, longitudinal slide (z-axis): feed by ac servo motor: 1ft6 086 – 8af71 – 3ek4, bevel gear ratio: 10:1, ball screw diameter: 80 mm, ball screw pitch: 20 mm, rapid traverse max: 5000 mm/min, cross slide (x-axis): feed by ac servo motor: 1ft6 086 – 1af71 – 3eh1, bevel gear ratio: 6:1, ball screw diameter: 50 mm, ball screw pitch: 10 mm, rapid traverse max: 5000 mm/min, cross slide traveling way for milling: 256 mm, offset slide (y-axis): feed by ac servo motor: 1ft6 084 – 1af71 – 3eh1, bevel gear ratio: 6:1, ball screw diameter: 50 mm, ball screw pitch: 10 mm, rapid traverse max: 3000 mm/min, cross slide traveling way for milling: 250 mm
• High precision and robust construction with advanced servo motor control, versatile machining capabilities with multiple units and steady rests

Extra Information

Machine still under power
