WEINIG / DIMTER - POWERMAT 400LESI-PRO-WEI-2007-00001

Name: WEINIG / DIMTER POWERMAT 400LE
Brand: WEINIG / DIMTER
SKU: SI-PRO-WEI-2007-00001
Price: 701014 MXN
Availability: InStock

MXN 701,014

Precio GINDUMAC

(Ex works)

Obten un presupuesto oficial

Visita la máquina

haz una contraoferta

Descargar PDF

¿Tiene más preguntas? ¡Contáctenos!

José María García

+34 601 158 008

j.garcia@gindumac.com

Contacta por Whatsapp

GINDUMAC
Productos
Máquinas para madera
➤ Used WEINIG / DIMTER POWERMAT 400LE | Wood Moulder

Mostrar en idioma original

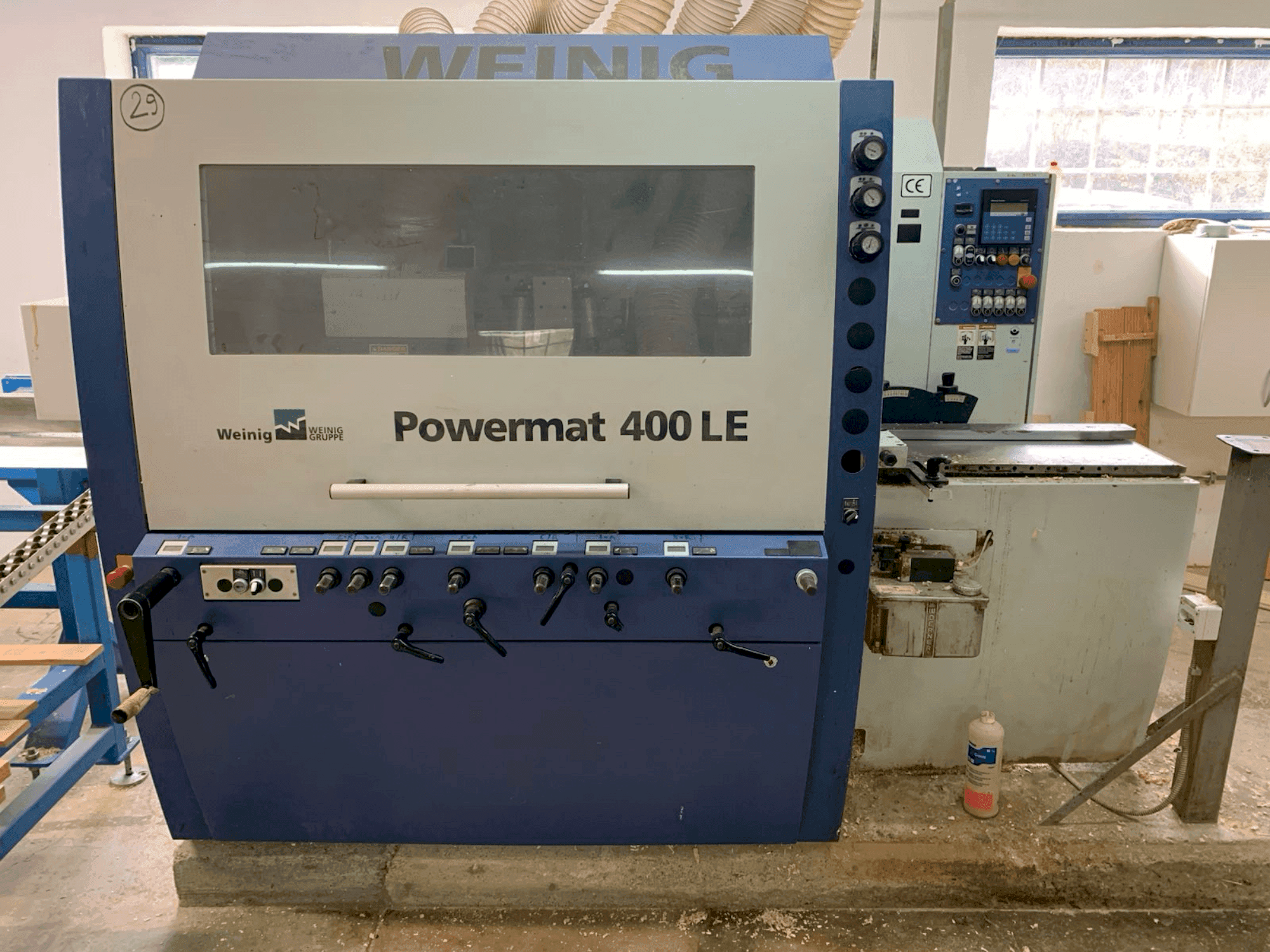

This 4-axis WEINIG POWERMAT 400LE wood moulder was manufactured in 2007. It features a robust PowerLock tool mounting system, adjustable feed speeds from 5–30 m/min, and motors up to 10 HP. Ideal for detailed woodworking with maximum tool diameters up to 200 mm and rebate depths up to 35 mm. If you are looking to get high-quality milling capabilities, consider the WEINIG POWERMAT 400LE machine we have for sale. Contact us for further details regarding this machine.

Resumen

marca: WEINIG / DIMTER
año: 2007
MODELO: POWERMAT 400LE
tipo de aplicación: Otra maquinaria para trabajar la madera
Ubicación: Eslovenia
tipo de máquina: Otros (Madera)

Información adicional

Additional equipment

PowerLock mounting for all tool holders
Additional set of tool arbor rings: diameter 40 mm, length 170 mm
Electrical system for machine mechanization includes an infeed roller with a freewheel gearbox

Machine Benefits

Technical Machine Benefits

1st tool holder (first bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter: 93–160 mm axial adjustment range: 5 mm grooving device with special knife z=2 and grooving cutter for 230 mm working width
2nd tool holder (first right tool holder): motor with brake (shared with left tool holder): 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
3rd tool holder (first left tool holder): shared motor with right tool holder powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
4th tool holder (first top tool holder): motor with brake: 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 35 mm axial adjustment range: 40 mm adjustable and retractable pressure shoe
5th tool holder (second bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 15 mm axial adjustment range: 35 mm
Beveling unit: mounted at 45° angle on the last top tool holder motor: 1 kw (1. 3 hp) spindle speed: 10600 rpm tool diameter: 61 mm
Feed system: frequency-controlled feed motor: 3 kw (4 hp) adjustable speed: 5–30 m/min infeed rollers with patented system
Operating voltage: 400 v (range 380–420 v), 50 hz
Electrical equipment compliant with din vde 0113 and en 60204 standards
Operating hours counter

Extra Information

Machine still under power

*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.

Tu gerente de cuenta:

José María García

José María García es parte de nuestro equipo de especialistas en maquinaria usada y será tu contacto directo por consultas sobre la máquina. No dudes en ponerte en contacto.
