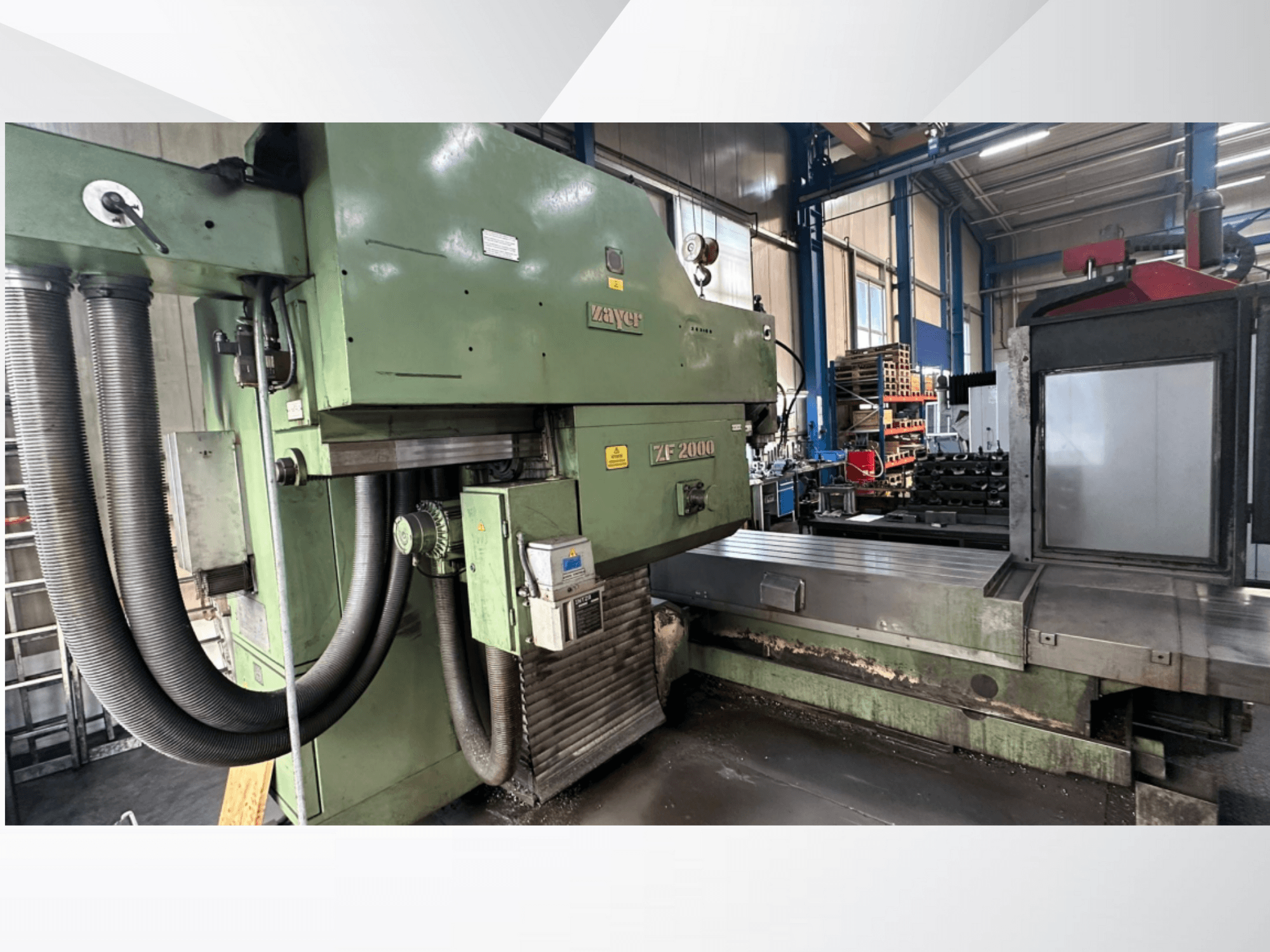

Zayer - ZF 2000DE-MIL-ZAY-1994-00001

Table clamping surface: 2000 × 800 mm

Maximum permissible table load: 6000 kg

Mounting T-slots: 5

T-slot spacing: 140 mm

T-slot width: 22 mm

Longitudinal travel: 1703 mm

Transverse travel: 803 mm

Vertical travel: 863 mm

Rapid traverse – longitudinal: 15000 mm/min

Rapid traverse – transverse: 15000 mm/min

Rapid traverse – vertical: 15000 mm/min

Positioning accuracy: ± 0.010 mm

Repeatability: ± 0.005 mm

Spindle speeds: Min 25 rpm / Max 3000 rpm

Tool holder: 150 ISO DIN 69871

Tool drawbar: ZAYER 190.008.00

Feed rates: 6 / 5000 mm/min

Maximum distance between table clamping surface and main spindle nose: 794 mm

Maximum distance from the rear of the table to the main spindle in horizontal position: 180 mm

Range 1: Constant torque 61 mKp 35-350 rpm; Constant power 22 kW 350-1000 rpm

Range 2: Constant torque 1001-1295 rpm; Constant power 22 kW 1295-3000 rpm
