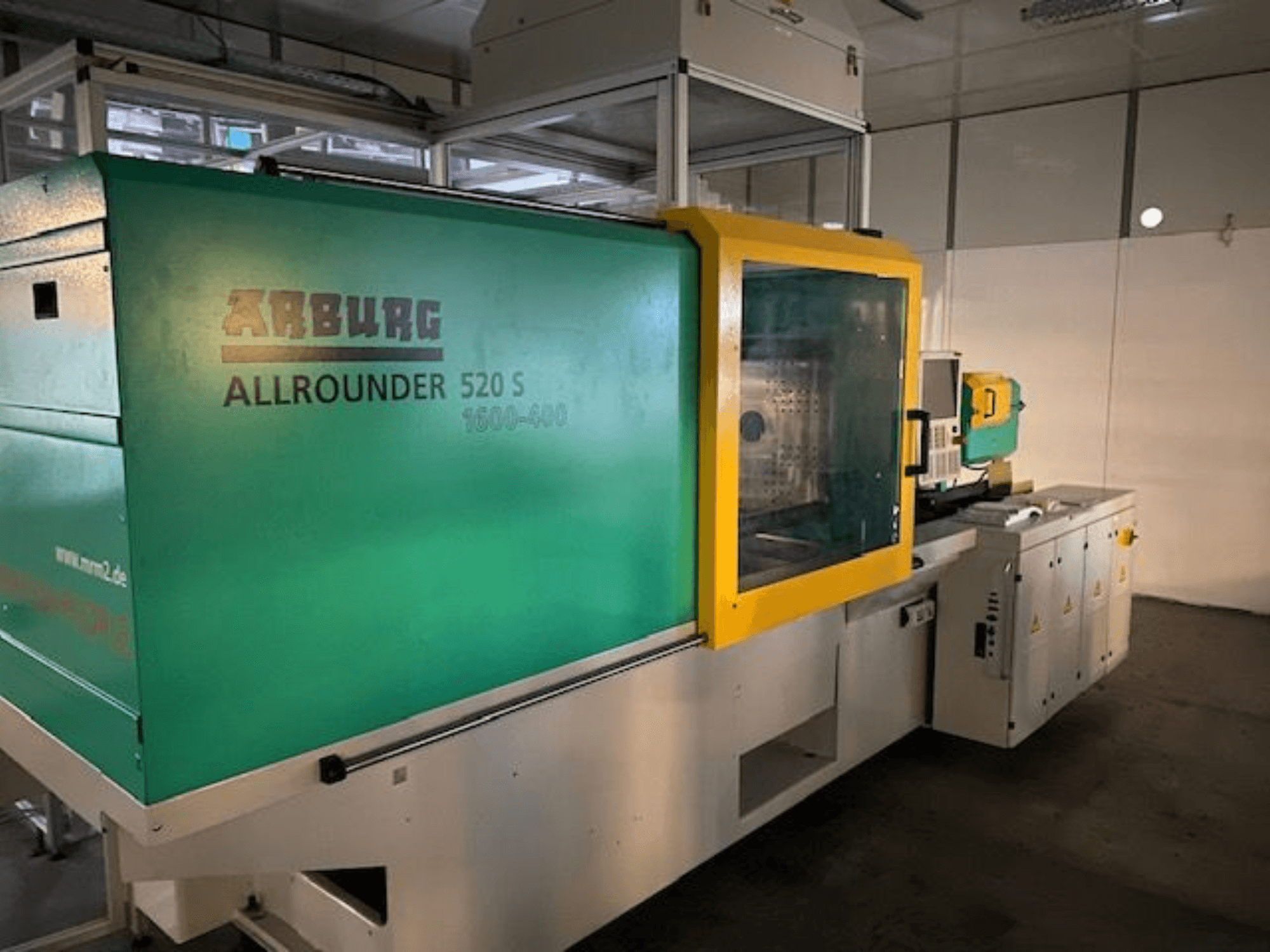

This 3s Arburg 520S-1500-400 was manufactured in 2016. It features a clamping force of 1600 kN and a screw diameter of 45 mm, making it suitable for high-temperature thermoplastics. The SELOGICA direct control system with a 15-inch touchscreen enhances usability. Consider the opportunity to buy this Arburg 520S-1500-400 hydraulic injection moulding machine. Contact us for further details.
Resumen
- marca: Arburg
- año: 2016
- MODELO: 520S-1500-400
- horas de producción: 9171
- tipo de aplicación: Moldeo por inyección
- Ubicación: Alemania
- tipo de máquina: Máquina de moldeo por inyección hidráulica
- Marca de unidad de control: ARBURG
Información técnica - Arburg 520S-1500-400
Unidad de Control
- Marca del control: ARBURG
Especificación Técnica
- Fuerza de cierre: 1600 kN
- Diámetro del husillo: 45 mm
Información adicional
Programmable and controlled build-up of clamping force
Extended clamping program with 2 stages
Hydraulic, servo-controlled ejector on moving platen
Injection/plasticizing unit:
Screw diameter: 45 mm (without nozzle)
High wear-resistant version
Sinter-metal check ring
CrN coating on screw and check ring
Suitable for abrasive, corrosive, and high-temperature thermoplastics
Technology level 2 – servo-controlled, dual-circuit pump system:
Two regulated hydraulic pumps for precise, parallel movements
Programmable nozzle contact force and holding pressure
Continuous oil circulation with additional cooling and filtration
SELOGICA direct control system:
Touchscreen operation with process editor
15-inch (38.1 cm) display
Multilingual interface (German, English, local language)
Heating capacity zones 1–6: 3.6 kW each (230 V / 16 A)
Cylinder heating temperature up to 450 °C
Connectivity/interfaces:
OPC UA interface (MES/host computer connection)
USB and CompactFlash interfaces for data storage
EUROMAP 67 robot interface
Prepared for ARBURG MULTILIFT robot system
Utilities:
Pneumatic supply with pressure regulator
Cooling water distribution with adjustable circuits and flow indicators
400 V / 50 Hz, with neutral conductor
Hours: 9,171
Additional equipment
None included in the listing
Note: Machine is prepared for robot integration (EUROMAP 67 interface; prepared for ARBURG MULTILIFT), but no robot/automation is included.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
