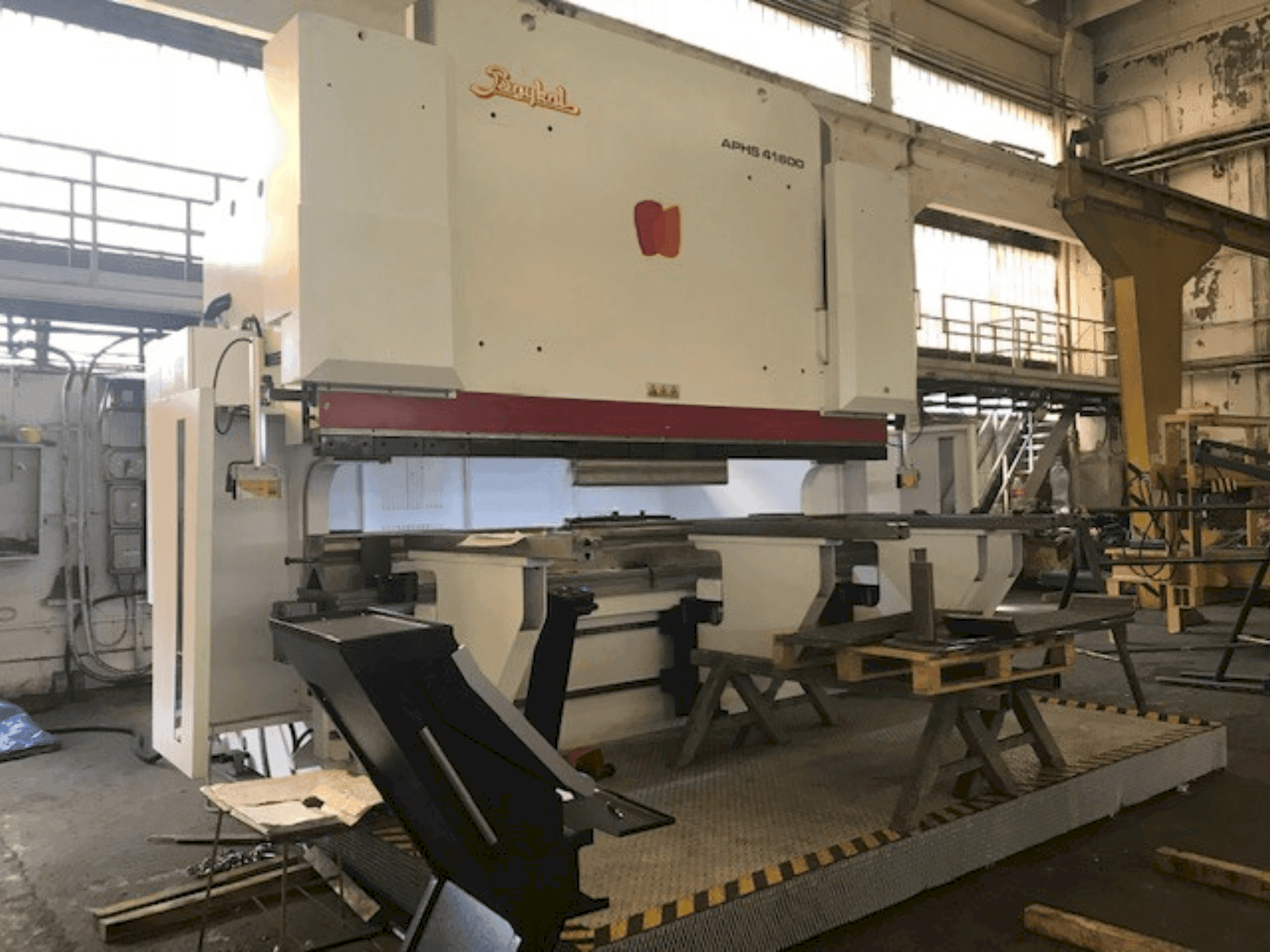

Baykal - APHS 41600HU-BEN-BAY-2017-00001

• Distance between side frames: 3550 mm

• Throat depth: 500 mm

• Daylight opening: 600 mm

• Stroke length: 360 mm

• Table width: 500 mm

• Approach speed: 80 mm/s

• Working speed: 7 mm/s

• Return speed: 70 mm/s

• Controller: Cybelec ModEva Pac (4–7 axes)

• 15’’ 2D graphic touchscreen with offline programming, Windows OS

• User-friendly graphic programming with full simulation

• Automatic angle correction (angle compensated during bending cycle)

• Automatic parallelism correction (CNC controlled with proportional valves and linear encoders)

• Automatic crowning system (hydraulic crowning table)

• Quick tool clamping system (European type)

• Standard tooling set: 85° punch, Multi-vee lower die

Additional Equipment

• Cybelec CNC control with 3D touchscreen and offline programming

• CNC-controlled backgauge with DC motor and ballscrew, accuracy ±0.1 mm

• 4 front sheet supports

• 4 rear sheet supports (1 m stroke)

• Foot pedal

• Block-type hydraulic system

• Electrical cabinet cooling fan

• AKAS laser safety system

• Electrically protected side and rear covers

• Oil level indicator

• CE certification and conformity with NFGM 16/2008 regulations
